Concept

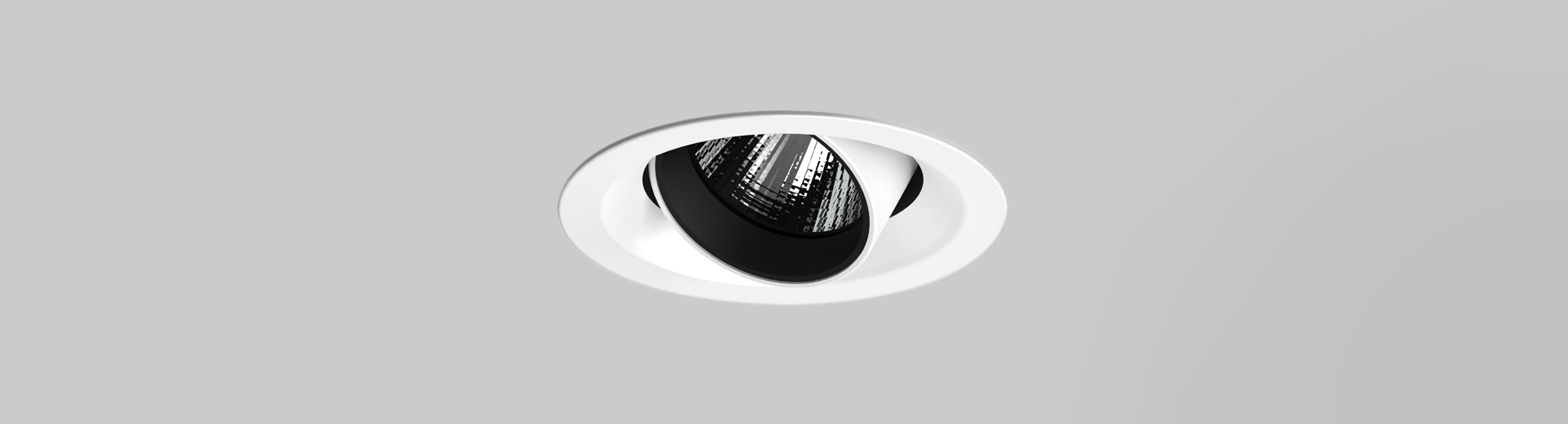

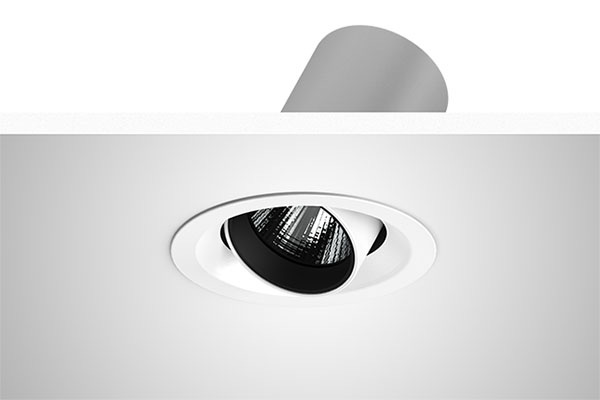

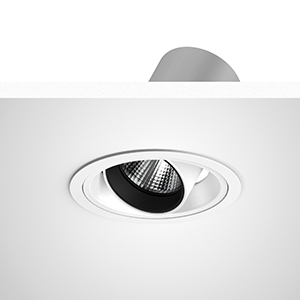

Recessed adjustable LED projector.Material
Die-cast black or white painted anodised aluminium body.

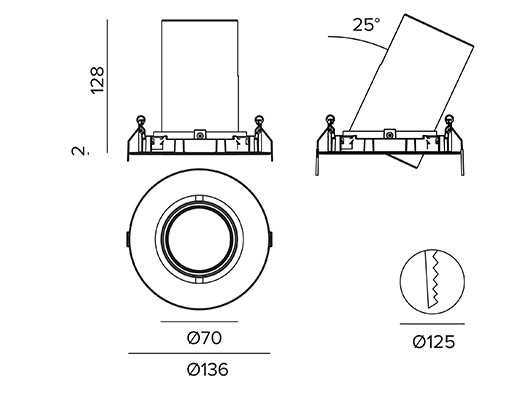

The body can be adjusted by +/-25°.
Available with a black or white integrated ring.Source
High efficiency Ra90 LED Chip on Board.
Ra80 on request.Optic
SP, FL and MWFL - precision optics with a black silicone cut off ring.
Version with a convex faceted highly reflective anodised aluminium reflector and a holographic diffusion filter or a version with a transparent PMMA lens.
UGR<19 (EN 12464-1).Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.Power Supply
Integrated electronic or DALI driver.Notes
Casambi control system available using a dedicated accessory (only for DALI version products).
110-277Vac version available on request.
