In-ground luminaires
Jedi Recessed
L. 1216mm
Code
1E2736
Light colour
4000K
80
80
Light distribution
Wall Washer
Output
53W
5399lm
5399lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
Linear Low Power High Efficiency LED board Ra80. 2700K-3500K on request.
Energy efficiency classD
Nominal power48W
Nominal flux7180lm
Colour rendering index80
Rf82.6
Rg95.7
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

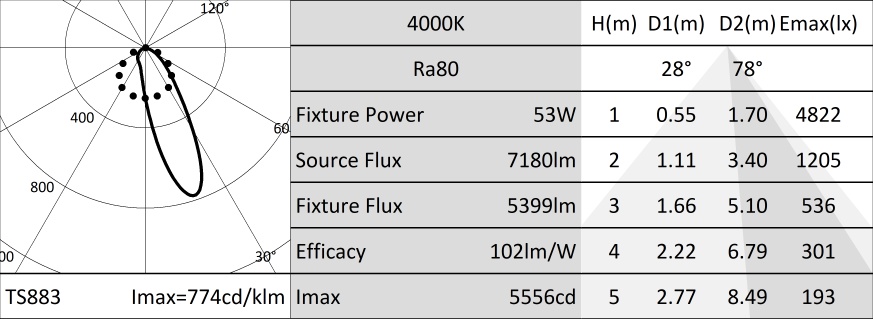

Illuminotechnical characteristics
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter.
OpticWALL WASHER
Beam anglesWW
Optical efficiency75%
Fixture flux5399lm
Luminous efficacy102lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 10mm thick glass flat screen. Brushed stainless steel (AISI 316) frame. The body of the fixture can resist a static load up to 20kN and vandalism (IK10). Anti-slip glass available on request.
Colour and finishAluminium
DimensionsL=1216mm
Weight7Kg
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK10
Electrical characteristics
DALI version with an integrated power supply. Complete with IP68 connector for power supply. To be completed with a watertight IP68 (IN-OUT) connector kit with a quick installation system (1E2769) or with a connection cable complete with 5 pin connector (1E2762, 1E2763, 1E2764, 1E2765) for in-line installations. Fixture with "internal" wire feedthrough. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power53W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +40°C
Installation
To be completed with an aluminium insertion box suitable for in-line installation.
Notes
Casambi control system available using a dedicated accessory. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. 110-277Vac version available on request. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). IP69: IEC/EN 60529 standard compliant. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1E3509 | 1218 |
Extruded anodized aluminium insertion box.
Accessories
| Code |
|---|
| 1E2495 |
Features TORX HEAD, TX 30.
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1E2762 | 320 | ||||
| 1E2763 | 470 | ||||
| 1E2764 | 620 | ||||
| 1E2765 | 770 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
1E2762 - For in line adjacent connection of one 600mm projector with one 900mm projector. 1E2763 - For in line adjacent connection of one 600mm projector with one 1200mm projector or two 900mm projectors. 1E2764 - For in line adjacent connection of one 900mm projector with one 1200mm projector. 1E2765 - For in line adjacent connection of two 1200mm projectors.
1E2762 - For in line adjacent connection of one 600mm projector with one 900mm projector. 1E2763 - For in line adjacent connection of one 600mm projector with one 1200mm projector or two 900mm projectors. 1E2764 - For in line adjacent connection of one 900mm projector with one 1200mm projector. 1E2765 - For in line adjacent connection of two 1200mm projectors.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
1 / 2
| Code |
|---|
| A013C |
Surge protector compatible with CLASS I lighting fixtures.
DALI, DMX, 0-10V datalines compliance.
Operating voltage 230Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP20
