Surface luminaires

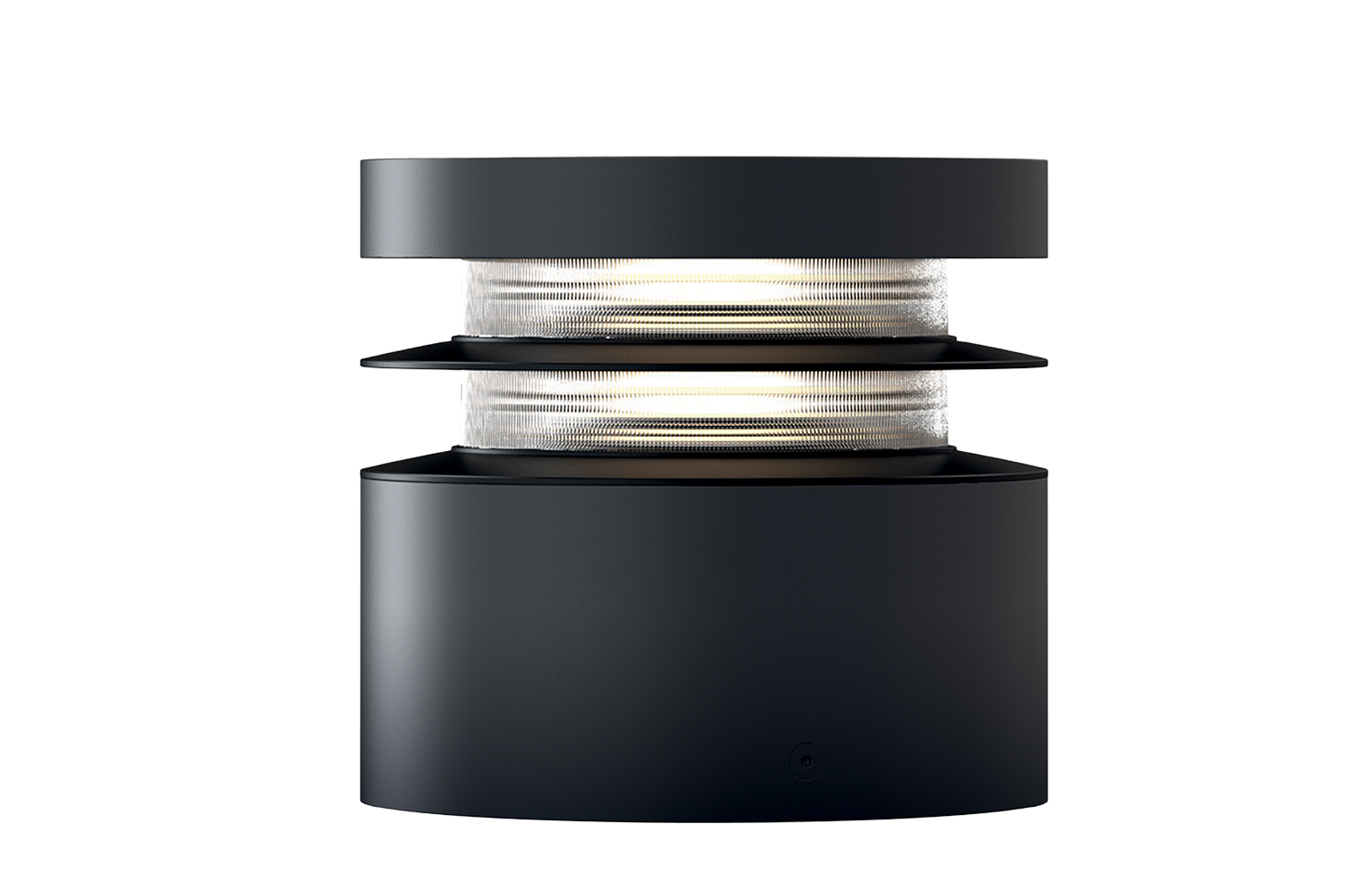

Febo EVO
Code
1E3189EL
Light colour
2700K
80
80

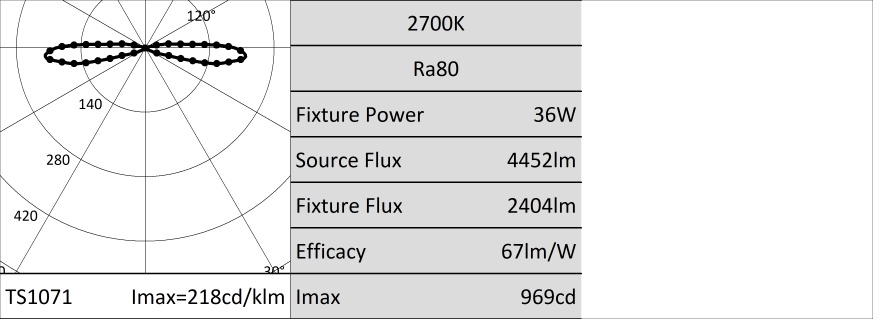

Light distribution
Output
36W
2404lm
2404lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Circuit with multiple sources, mid-power LED with flip-chip technology, Ra>80. 3500K on request.
Energy efficiency classE
Nominal power32W
Nominal flux4452lm
Colour rendering index80
CCT nominal2700K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Optical unit composed of a collimating toroidal lens in transparent, optical grade PMMA.
EmissionRADIAL
Beam anglesWFL
Optical efficiency54%
Fixture flux2404lm
Luminous efficacy67lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded aluminium body, die-cast aluminium optical head with black radial blades.
Colour and finishFerrite
Weight2.7Kg
Degree of protectionIP67
Mechanical ResistanceIK10
Electrical characteristics
Available with an integrated electronic ON-OFF power supply. Watertight connection system inside the fixture included.
Fixture Power36W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature-25°C / +35°C
Notes
Uses the "Waterblock Plus" technical solution that involves resin coating the connection cables and completely resin coating the integrated driver limiting the risk of humidity reaching the fixture. It is possible to subject the product to Cataphoresis treatment on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Non-replaceable light source. Replaceable control gear by a professional.
Accessories
| Code |
|---|
| 1E3399 |
120° shutter kit (with 4 cut zones that allow to shutter even 105°/90°/75°/60° angles).
Max. no. of kits per product: 2.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
1 / 2
| Code |
|---|
| A013B |
Surge protector compatible with CLASS II lighting fixtures and electronic drivers.
Operating voltage 220-240Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS II
IP67
