Surface luminaires
Febo EVO
Code
1E3191DA
Light colour
4000K
80
80
Light distribution
Output
36W
2721lm
2721lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
Circuit with multiple sources, mid-power LED with flip-chip technology, Ra>80. 3500K on request.
Energy efficiency classD
Nominal power32W
Nominal flux5038lm
Colour rendering index80
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

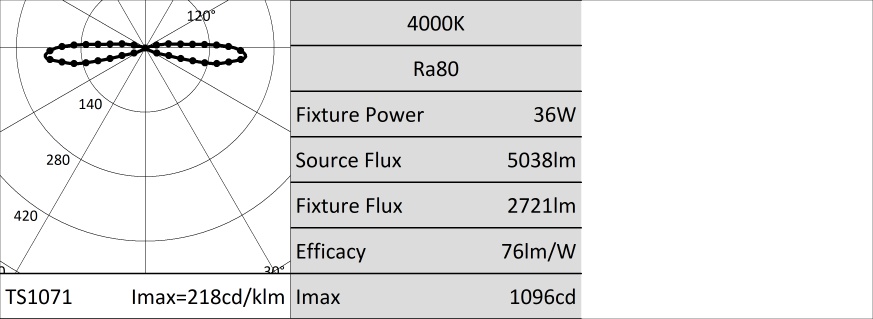

Illuminotechnical characteristics
Optical unit composed of a collimating toroidal lens in transparent, optical grade PMMA.
EmissionRADIAL
Beam anglesWFL
Optical efficiency54%
Fixture flux2721lm
Luminous efficacy76lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded aluminium body, die-cast aluminium optical head with black radial blades.
Colour and finishFerrite
Weight2.7Kg
Degree of protectionIP67
Mechanical ResistanceIK10
Electrical characteristics
Available with an integrated DALI power supply. Watertight connection system inside the fixture included. Casambi control system available using a dedicated accessory.
Fixture Power36W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlDALI
Driver includedYES
Class FYES
Ambient temperature-25°C / +35°C
Notes
Uses the "Waterblock Plus" technical solution that involves resin coating the connection cables and completely resin coating the integrated driver limiting the risk of humidity reaching the fixture. It is possible to subject the product to Cataphoresis treatment on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Non-replaceable light source. Replaceable control gear by a professional.
Accessories
| Code |
|---|
| 1E3399 |
120° shutter kit (with 4 cut zones that allow to shutter even 105°/90°/75°/60° angles).
Max. no. of kits per product: 2.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
1 / 2
| Code |
|---|
| A013B |
Surge protector compatible with CLASS II lighting fixtures and electronic drivers.
Operating voltage 220-240Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS II
IP67
1 / 2
| Code |
|---|
| A013D |
Surge protector compatible with CLASS II lighting fixtures.
DALI, DMX, 0-10V datalines compliance.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS II
IP65
