Projectors
Jedi Compact Outdoor Projector
Integrated driver - L. 576mm
Code
1E3277EL
Light colour
3000K
80
80
Light distribution
Wall Washer
Output
28W
2586lm
2586lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Adjustable linear LED projector
Source
High Power High Efficiency Ra80 linear LED board. Ra90 on request.
Energy efficiency classD
Nominal power24W
Nominal flux3440lm
Colour rendering index80
Rf82.9
Rg97
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics

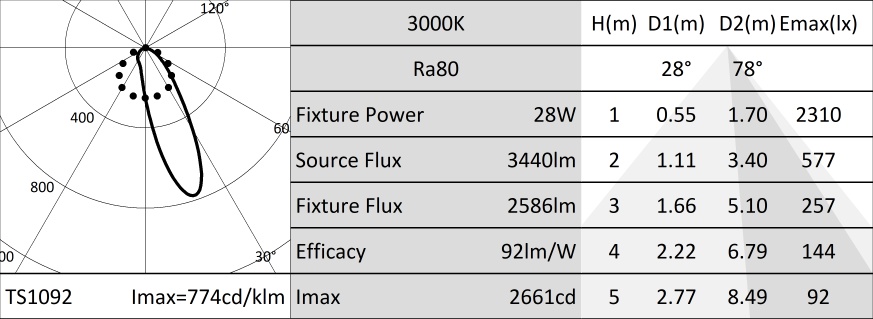

Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter. Wall Washer version.
OpticWALL WASHER
Beam anglesWW
Optical efficiency75%
Fixture flux2586lm
Luminous efficacy92lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishAluminium
DimensionsL=576mm
Weight2.6Kg
VersionINTEGRATED DRIVER
Degree of protectionIP66,IP67
Mechanical ResistanceIK08
Electrical characteristics
Integrated driver version. Complete with electronic ON-OFF power supply. Pre-cabled with a 1 metre 3x1mm² H07RN-F cable. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power28W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with stainless steel adjustable brackets.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1E3304 |
Stainless steel short bracket kit for surface installation (2 pieces).
Rotation +/-90°.
| Code |
|---|
| 1E3306 |
Stainless steel long bracket kit for surface installation (2 pieces).
Rotation +/-90°.
Accessories
1 / 2
| Code | L mm | H mm | P mm | Colour | |
|---|---|---|---|---|---|
| 1E3905 | 560 | 48 | 57 |  |
Asymmetric grid in stainless steel, powder-painted.
External mounting respect to fixture.
1 / 2
| Code | L mm | H mm | P mm | Colour | |
|---|---|---|---|---|---|
| 1E3909 | 570 | 48 | 59 | |
Hood in stainless steel, powder-painted.
External mounting respect to fixture.
1 / 2
| Code | L mm | H mm | Colour | ||
|---|---|---|---|---|---|
| 1E3913 | 576 | 54 | |
Adjustable hood in stainless steel, powder-painted.
External mounting respect to fixture.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
Downloads
