In-ground luminaires

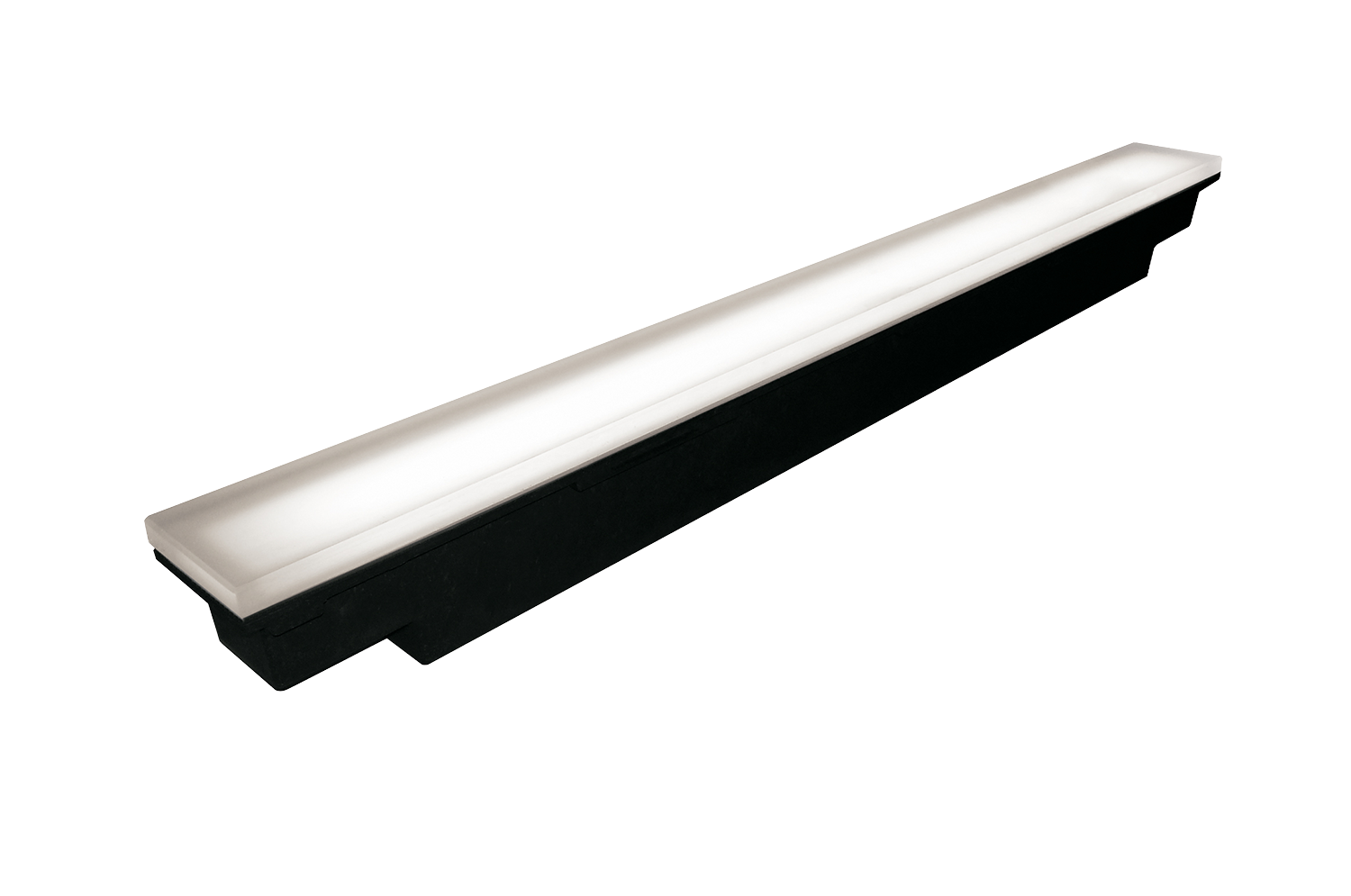

Minimercure LED
Code
1E3405
Light colour
4000K
80
80
Light distribution
VWFL
115°
115°
Output
10W
309lm
309lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Ra80 linear LED board. Ra90 on request.
Energy efficiency classD
Nominal power8W
Nominal flux1340lm
Colour rendering index80
Rf82.6
Rg95.7
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

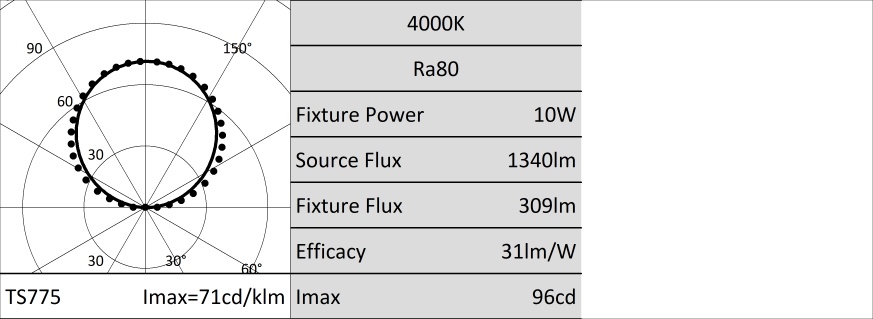

Illuminotechnical characteristics
Beam anglesVWFL
Optical efficiency23%
Fixture flux309lm
Luminous efficacy31lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black anodised aluminium body with cataphoresis treatment. Antislip, flush, tempered safety glass, white silk-screen printed sealed to the fixture body. Resistant to static loads of up to 12kN.
Colour and finishOpal
Weight1.8Kg
Version220-240Vac
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK08
Electrical characteristics
Integrated electronic ON-OFF driver. Pre-cabled with a resinated H07RN-F cable (2x1.5mm²) for watertight installation. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power10W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Aluminium insertion boxes with horizontal or vertical development to be ordered separately.
Notes
Pre-set for looping connections with dedicated accessories to be ordered separately. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Non-replaceable light source.
Related codes
| Code |
|---|
| 1E2382 |
Aluminium insertion boxes with horizontal or vertical development pre-set with removable end caps for installations in continuous rows.
Complete with internal supports for installations in concrete.
Vertical.
L=601mm.
| Code |
|---|
| 1E2383 |
Aluminium insertion boxes with horizontal or vertical development pre-set with removable end caps for installations in continuous rows.
Complete with internal supports for installations in concrete.
Horizontal
L=601mm.
Accessories
1 / 2
| Code |
|---|
| A013B |
Surge protector compatible with CLASS II lighting fixtures and electronic drivers.
Operating voltage 220-240Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS II
IP67
