In-ground luminaires
Minimercure LED
Code
1E3406
Light colour
3000K
80
80
Light distribution
VWFL
115°
115°
Output
8W
290lm
290lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Source
Ra80 linear LED board. Ra90 on request.
Energy efficiency classD
Nominal power8W
Nominal flux1260lm
Colour rendering index80
Rf82.9
Rg97
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

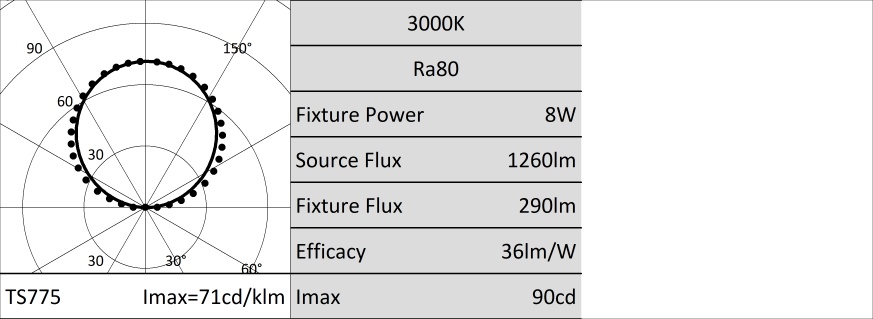

Illuminotechnical characteristics
Beam anglesVWFL
Optical efficiency23%
Fixture flux290lm
Luminous efficacy36lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black anodised aluminium body with cataphoresis treatment. Antislip, flush, tempered safety glass, white silk-screen printed sealed to the fixture body. Resistant to static loads of up to 12kN.
Colour and finishOpal
Weight1.8Kg
Version24Vdc
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK08
Electrical characteristics
Electronic ON-OFF driver available as an accessory. Pre-cabled with a resinated H07RN-F cable (2x1.5mm²) for watertight installation.
Fixture Power8W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
Aluminium insertion boxes with horizontal or vertical development to be ordered separately.
Notes
Pre-set for looping connections with dedicated accessories to be ordered separately. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Non-replaceable light source.
Related codes
| Code |
|---|
| 1E2382 |
Aluminium insertion boxes with horizontal or vertical development pre-set with removable end caps for installations in continuous rows.
Complete with internal supports for installations in concrete.
Vertical.
L=601mm.
| Code |
|---|
| 1E2383 |
Aluminium insertion boxes with horizontal or vertical development pre-set with removable end caps for installations in continuous rows.
Complete with internal supports for installations in concrete.
Horizontal
L=601mm.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T3586 | IP67 | 24Vdc | 220-240Vac | 75W | 140x32x63 |
Electronic ON-OFF power supply.
