Surface luminaires
Zedge Line
Code
1E3443EL90
Light colour
3000K
90
90
Light distribution
Floor Washer
Output
9.1W
207lm
207lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Ra90 LED board.
Energy efficiency classE
Nominal power8W
Nominal flux1054lm
Colour rendering index90
Rf91.4
Rg100.8
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

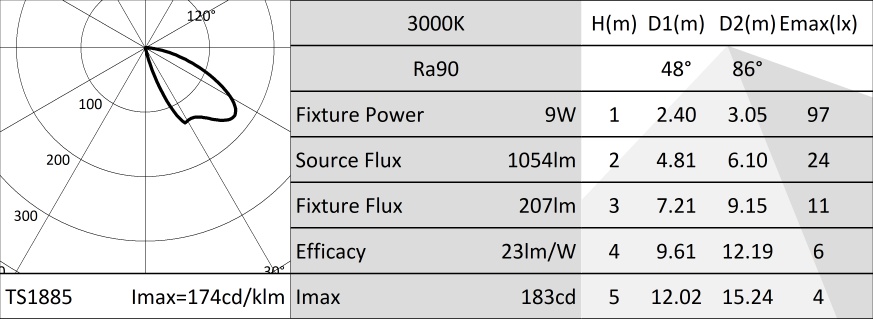

Illuminotechnical characteristics
OpticFLOOR WASHER
Optical efficiency20%
Fixture flux207lm
Luminous efficacy23lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast anodised aluminium body and external frame; powder coated frame. Polycarbonate screen.
Colour and finishFerrite
DimensionsL=304mm
Weight0.7Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
230V version with integrated driver. Pre-cabled with a 1m H07RN8-F (3x1mm²) cable.
Fixture Power9W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with a special nylon outer casing. It is possible to install the fixture without the outer casing using a special spring kit.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1E3447 |
Nylon outer casing fitted for parallel connection with feed through-wiring.
Cutout hole for flush installation AxBxP=308x68x80mm.
Cutout hole for overlay installation AxBxP=298x57x73mm.
| Code |
|---|
| 1T7003 |
Stainless steel spring kit for installation without insertion box.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3872 |  |
Carter for surface installation.
Can contain 1E2769 and 1E2494 connectors inside.
Powder coated stainless steel.
AxBxH=62x304x76.5mm.
Accessories
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
