Surface luminaires
Mr Smith
Code
1E3533EL90
Light colour
2700K
90
90
Light distribution
Opal
Output
13.4W
998lm
998lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 3500K on request.
Energy efficiency classE
Nominal power12W
Nominal flux1606lm
Colour rendering index90
Rf92
Rg99
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

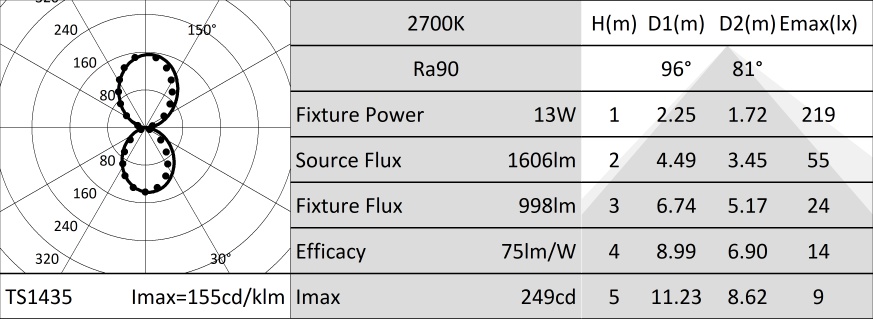

Illuminotechnical characteristics
MicroPet, high reflectance white spotlight. Version with direct/indirect emission.
EmissionDIRECT/INDIRECT
OpticOPAL
Optical efficiency62%
Fixture flux998lm
Luminous efficacy75lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast anodised aluminium body. Injection moulded opal polycarbonate screen.
Colour and finishFerrite
DimensionsAxB=130x130mm
Weight0.75Kg
Degree of protectionIP65
Mechanical ResistanceIK08
Electrical characteristics
230V version with integrated electronic ON-OFF driver.
Fixture Power13W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Wall-mounted version with direct attachment on the rear frame of the product.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
