In-ground luminaires
Jedi Compact Outdoor Recessed
Louvre - Integrated driver - L. 905mm
Code
1E3697EL
Light colour
2700K
80
80
Light distribution
Grazing
80° / 13°
80° / 13°
Output
40W
2568lm
2568lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High Power High Efficiency Ra80 linear LED board. Ra90 on request.
Energy efficiency classE
Nominal power36W
Nominal flux4845lm
Colour rendering index80
Rf83
Rg97.3
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

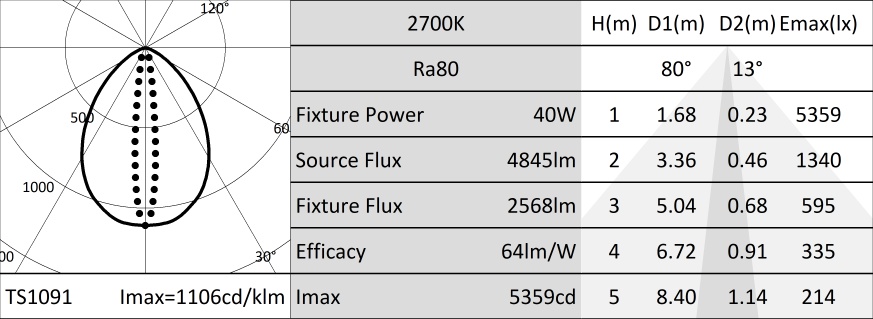

Illuminotechnical characteristics
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter. Grazing light version.
OpticHYBRID
Beam anglesGRZ
Optical efficiency53%
Fixture flux2568lm
Luminous efficacy64lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen.
Colour and finishAluminium
DimensionsL=905mm
Weight3.8Kg
VersionLOUVRE - INTEGRATED DRIVER
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK08
Electrical characteristics
Integrated driver version. Complete with electronic ON-OFF power supply. Version with an integrated Louver effect grid. Pre-cabled with a 1 metre 3x1mm² H07RN-F cable. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power40W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with an anodised aluminium outer casing suitable for in-line installation and external looping.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. 110-277Vac version available on request. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | P mm | H mm | L mm | ||
|---|---|---|---|---|---|
| 1E3734 | 96 | 88 | 909 |
Aluminium outer casing for Jedi Compact with integrated driver.
Accessories
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
