Surface luminaires
Zedge Line
Code
1E3764DA90
Light colour
3500K
90
90
Light distribution
Floor Washer
Output
9.1W
208lm
208lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
Ra90 LED board.
Energy efficiency classE
Nominal power8W
Nominal flux1063lm
Colour rendering index90
Rf90.3
Rg100.4
CCT nominal3500K
Lifetime (L80/B10)>50000h tq +25°C

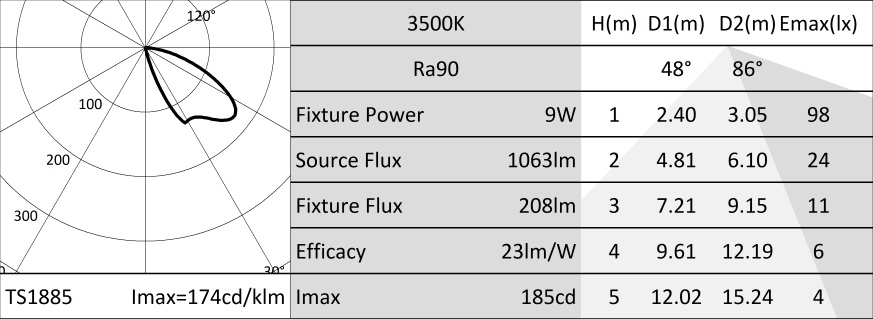

Illuminotechnical characteristics
OpticFLOOR WASHER
Optical efficiency20%
Fixture flux208lm
Luminous efficacy23lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast anodised aluminium body and external frame; powder coated frame. Polycarbonate screen.
Colour and finishFerrite
DimensionsL=304mm
Weight0.7Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
230V version with integrated driver. Pre-cabled with a 1m H07RN8-F (5x1mm²) cable. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power9W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI - PUSH
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with a special nylon outer casing. It is possible to install the fixture without the outer casing using a special spring kit.
Notes
Casambi control system available using a dedicated accessory. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1E3447 |
Nylon outer casing fitted for parallel connection with feed through-wiring.
Cutout hole for flush installation AxBxP=308x68x80mm.
Cutout hole for overlay installation AxBxP=298x57x73mm.
| Code |
|---|
| 1T7003 |
Stainless steel spring kit for installation without insertion box.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3872 |  |

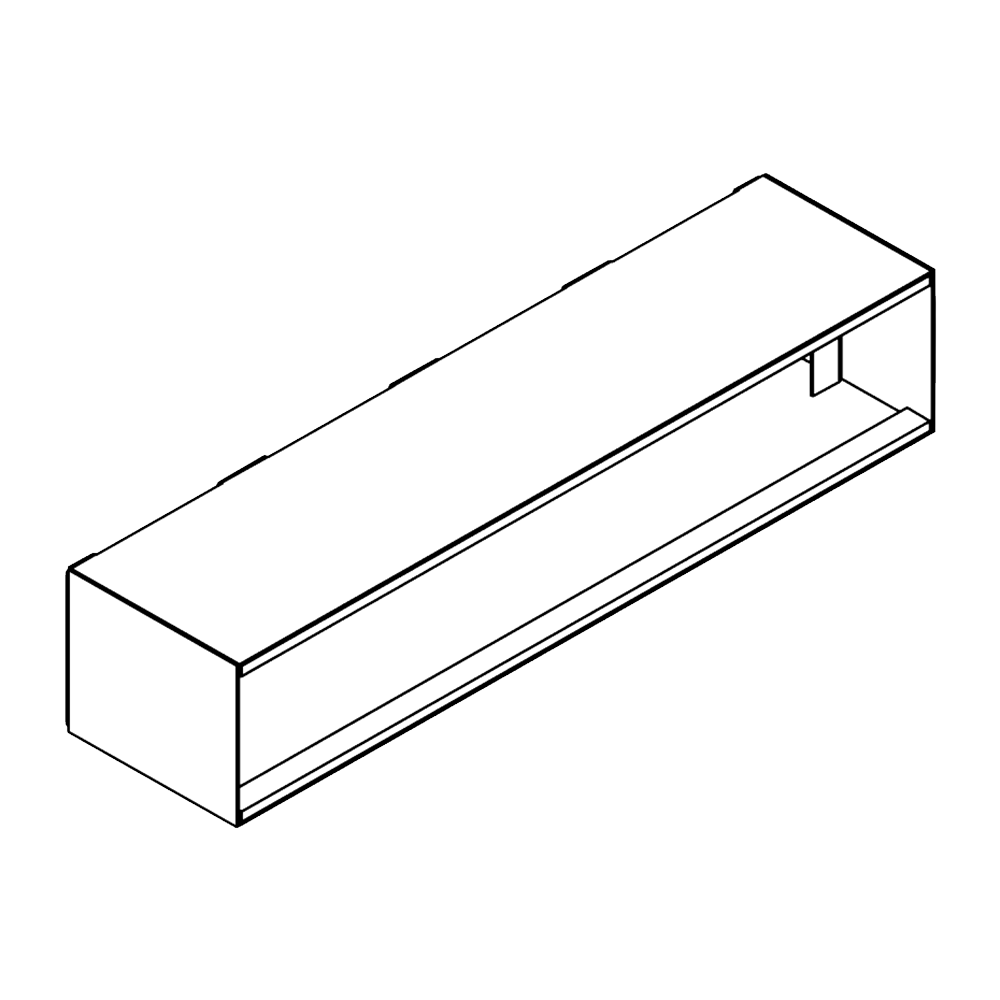

Carter for surface installation.
Can contain 1E2769 and 1E2494 connectors inside.
Powder coated stainless steel.
AxBxH=62x304x76.5mm.
Accessories
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E3184 |
IP68 4-way cable connector (5 pole).
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
1 / 2
| Code |
|---|
| A013C |
Surge protector compatible with CLASS I lighting fixtures.
DALI, DMX, 0-10V datalines compliance.
Operating voltage 230Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP20
