Projectors
Dart Medium RGBW
Code
1E3866
Light colour
6500K
Light distribution
MWFL
47°
47°
Output
8.9W
504lm
504lm
Power supply
Control
850mA
Colour

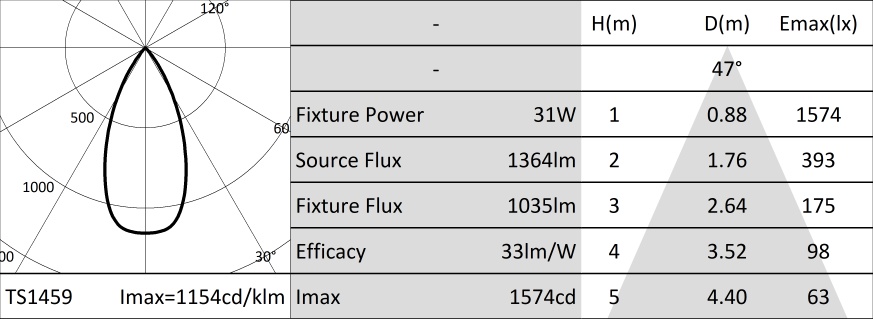

RGBW

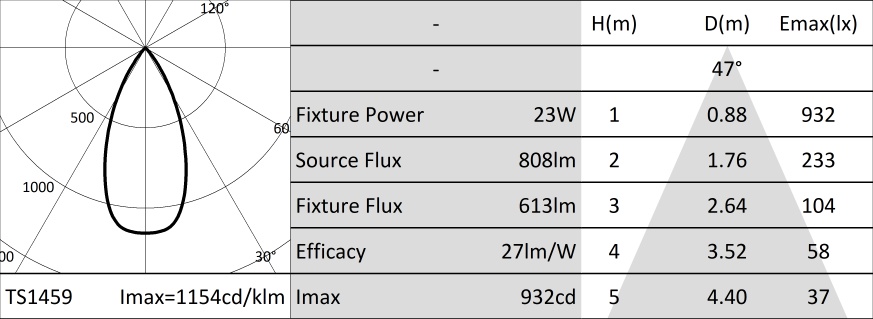

RGB

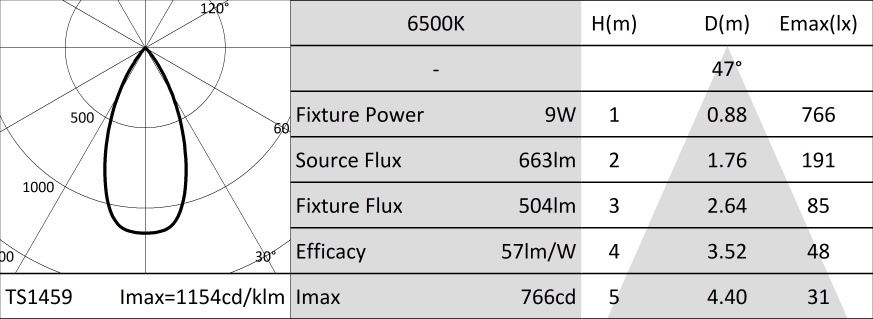

WHITE

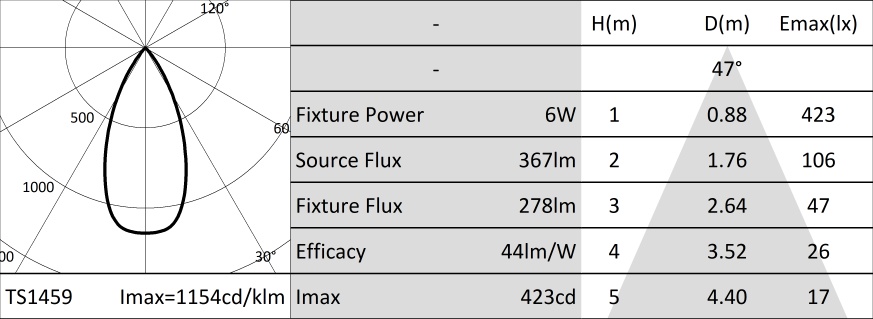

RED

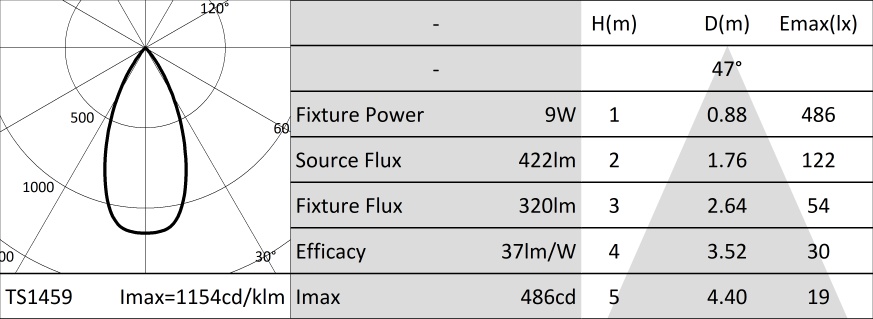

GREEN

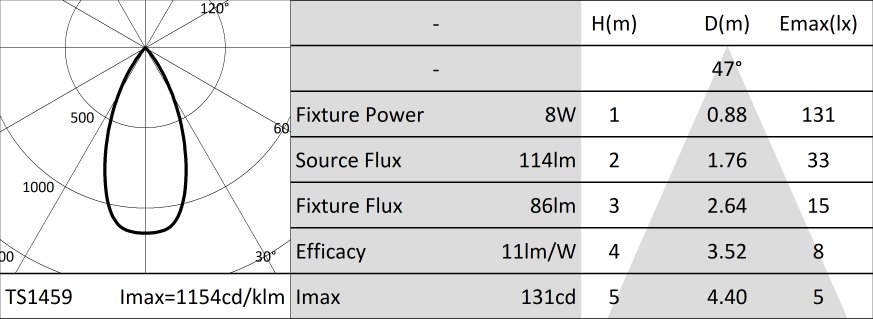

BLUE
1 / 8
Technical Data
Source
High efficiency RGBW LED multichip.
Energy efficiency classG
Nominal power31W
Nominal fluxSee photometries
CCT nominalSee photometries
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Optic made of metallised polycarbonate reflector with MWFL light beam opening and holographic diffusion filter in PMMA.
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency76%
Fixture fluxRGBW - 1035lm
RGB - 613lm
WHITE - 504lm
RED - 278lm
GREEN - 320lm
BLUE - 86lm
RGB - 613lm
WHITE - 504lm
RED - 278lm
GREEN - 320lm
BLUE - 86lm
Luminous efficacyRGBW - 33lm/W
RGB - 27lm/W
WHITE - 57lm/W
RED - 44lm/W
GREEN - 37lm/W
BLUE - 11lm/W
RGB - 27lm/W
WHITE - 57lm/W
RED - 44lm/W
GREEN - 37lm/W
BLUE - 11lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Rotation of ±45° on the horizontal plane and of 0-120° or 0-20° on the vertical plane.
Colour and finishFerrite
Weight3.3Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
Remote power supply. Controlled using DMX-RDM protocols that make it possible to programme the fixture remotely (no dip-switch) using the DMX data line. Programming the fixtures is done using the USB-RDM programmer that is available as an accessory.
Fixture PowerSee photometries
Power supply850mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
Mounting bracket with aiming adjustability.
Notes
Photometrics show the maximum emission values of fixtures. Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1E3883 |
DMX 4 channel driver - 850mA.
50W, LxHxP=220x80x120mm, 120-277Vac.
IP68 gray powder coated aluminum box.
Accessories
1 / 2
| Code |
|---|
| 1E3023 |
Blade of light filter.
PMMA holographic filter for a blade of light effect.
To be completed with a dedicated holder ring.
Diameter 101mm.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3025 |  |
Anti-glare louver.
The central elements may be removed to obtain two different levels of glare control.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3024 |  |
Asymmetric screen.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3026 | |
Plate for fixture rotation.
Powder coated stainless steel.
| Code | Colour | Dimensions ØxH mm | |||
|---|---|---|---|---|---|
| 1E3028 | | 96x182 |
Earthspike.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E2825 | |
Pole bracket.
Anodised and powder coated aluminium.
Pole Ø 60mm (+/-2mm).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3027 | |
Pole multiple mounting system.
Powder coated stainless steel.
To be completed with 1E2825.
Max 4 projectors.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3022 | |
Holder ring.
Powder coated stainless steel.
AxB 120x120mm.
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3029 | |
Laser pointing system.
Installed by friction on the projector's body.
Powder coated stainless steel.
Laser included.
| Code |
|---|
| 1E2767 |
USB-RDM Programmer code.
DMX-RDM (Remote Device Management) address planner.
Used with the "RDM Targetti" software that can be downloaded for free from the Targetti website download section.
To be used with all RGBW products.
The USB-RDM programmer manages to direct DMX-RDM fixtures if there are no BUFFER or Splitter DMXs on the section.
Please refer to the instructions for more details.
| Code |
|---|
| A077 |
my-SCENARIO Show Store.
Programmable DMX interface that integrates the latest innovations in lighting control in architectural and entertainment applications.
It features USB Type-C and Ethernet ports for programming and remote control.
The unit can be fully programmed with ESA Pro 2 software (available for Windows and Mac users) or via mobile applications such as Arcolis (available for iOS or Android devices).
It can be fully customised: pixel mapping, triggering management, patch configuration and much more.
The system offers great possibilities for the control of your lighting installation: multi zone control (allowing the management of up to 5 indipendent zones), extended triggers (time/date, Sunrise/Sunset, input ports, TCP/UDP commands), 16-bit channels management, full recovery after power loss, up to 99 total scenes, and 1024+ DMX channels.
The intuitive backlit keyboard comes with 10 preset buttons for a user friendly experience.
| Code |
|---|
| 1T6499 |
myScenario Wall.
DMX controller with a glass touch sensitive screen for architectural applications.
It can control two different DMX universes (2x 512 channels).
Stand alone function or connected to a computer using a USB port.
Software for creating scenarios (that can be downloaded from the Targetti website) included.
It can manage 10 different lighting zones and 50 scenarios per zone.
The touch keys on the front make it possible to modify and recall programmed scenarios.
USB cable included.
To be used with all RGBW products.
