Projectors
Dart Medium
Code
1E3939EL
Light colour
4000K
80
80
Light distribution
Asymmetrical
Output
33.2W
3611lm
3611lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra80.
Energy efficiency classC
Nominal power31W
Nominal flux5082lm
Colour rendering index80
Rf81
Rg97
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

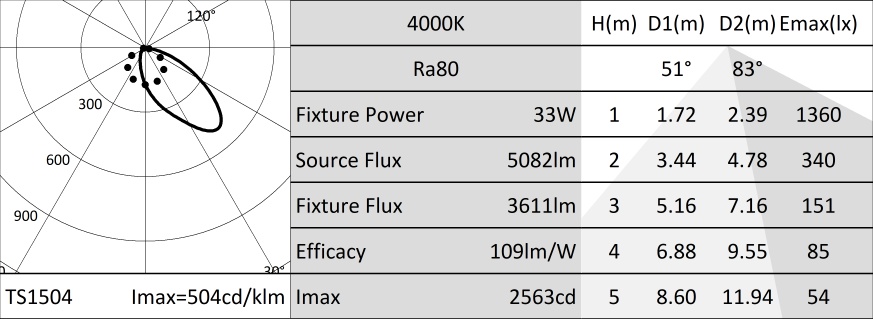

Illuminotechnical characteristics
Equipped with pure aluminium reflector with high luminous efficiency and holographic filter.
OpticASYMMETRICAL
Beam anglesASYM
Optical efficiency71%
Fixture flux3611lm
Luminous efficacy109lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Rotation of ±45° on the horizontal plane and of 0-120° or 0-20° on the vertical plane.
Colour and finishFerrite
Weight3.55Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
Complete with electronic ON-OFF power supply. Pre-cabled with a 1.5m H07RN-F cable.
Fixture Power33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Mounting bracket with aiming adjustability.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code |
|---|
| 1E3023 |
Blade of light filter.
PMMA holographic filter for a blade of light effect.
To be completed with a dedicated holder ring.
Diameter 101mm.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3025 |  |
Anti-glare louver.
The central elements may be removed to obtain two different levels of glare control.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3024 |  |
Asymmetric screen.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3026 | |
Plate for fixture rotation.
Powder coated stainless steel.
| Code | Colour | Dimensions ØxH mm | |||
|---|---|---|---|---|---|
| 1E3028 | | 96x182 |
Earthspike.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E2825 | |
Pole bracket.
Anodised and powder coated aluminium.
Pole Ø 60mm (+/-2mm).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3027 | |
Pole multiple mounting system.
Powder coated stainless steel.
To be completed with 1E2825.
Max 4 projectors.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3022 | |
Holder ring.
Powder coated stainless steel.
AxB 120x120mm.
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3029 | |
Laser pointing system.
Installed by friction on the projector's body.
Powder coated stainless steel.
Laser included.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
