1E3990EL

Technical Data

Concept

Professional adjustable LED projector

Source

High efficiency Chip on Board LED Ra80. Ra90 version available on request.

Energy efficiency classC

Nominal power31W

Nominal flux5193lm

Colour rendering index80

Rf81

Rg97

CCT nominal4000K

Lifetime (L80/B10)>50000h tq +25°C

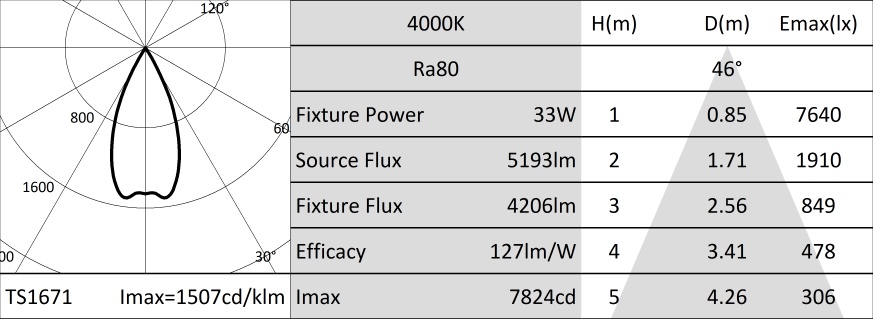

Illuminotechnical characteristics

MWFL version: convex faceted mirrored anodised aluminium precision optics.

OpticREFLECTOR

Beam anglesMWFL

Optical efficiency81%

Fixture flux4206lm

Luminous efficacy127lm/W

Photobiological safetyCompliant with RG1 low risk group

Mechanical characteristics

Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Tempered extra clear front glass.

Colour and finishFerrite

Weight3.45Kg

Degree of protectionIP66

Mechanical ResistanceIK10

Electrical characteristics

Version with integrated electronic ON-OFF power supply. Precabled with a 1.5m long feeding cable H07RN-F.

Fixture Power33W

Power supply220-240Vac 50/60Hz

Insulation ClassCLASS 1

Type of driver / ControlON-OFF

Driver includedYES

SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light

Ambient temperature-25°C / +35°C

Installation

Mounting bracket with aiming adjustability. Adjustable up to ±45° on the horizontal pane and +90°/-45° on the vertical plane.

Notes

Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.

Warranty

5 years.

Warning

Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Accessories

Code
1E4006

Blade of light filter. PMMA holographic filter for a blade of light effect. Completed with powder coated aluminum alloy holder ring. Ferrite.

Only for SP, FL, MWFL, WFL versions.

1 / 2

Code	Colour
1E4009

Anti-glare louver. The central elements can be adjusted +/- 60° for a perfect glare control. Powder coated stainless steel. Only for SP, FL, MWFL, WFL versions.
