Projectors
DART Round Medium
Code
1E3991DA
Light colour
4000K
80
80
Light distribution
WFL
56°
56°
Output
33.1W
4247lm
4247lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra80. Ra90 version available on request.
Energy efficiency classC
Nominal power31W
Nominal flux5193lm
Colour rendering index80
Rf81
Rg97
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

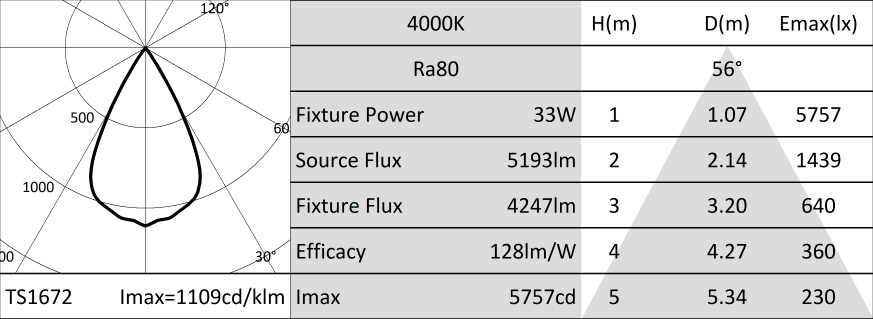

Illuminotechnical characteristics
WFL version: convex faceted mirrored anodised aluminium precision optics.
OpticREFLECTOR
Beam anglesWFL
Optical efficiency82%
Fixture flux4247lm
Luminous efficacy128lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Tempered extra clear front glass.
Colour and finishFerrite
Weight3.45Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
Version with integrated dimmable DALI power supply. Precabled with a 1.5m long feeding cable H07RN-F.
Fixture Power33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI - PUSH
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Mounting bracket with aiming adjustability. Adjustable up to ±45° on the horizontal pane and +90°/-45° on the vertical plane.
Notes
Casambi control system available using a dedicated accessory. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code |
|---|
| 1E4006 |
Blade of light filter.
PMMA holographic filter for a blade of light effect.
Completed with powder coated aluminum alloy holder ring.
Ferrite.
Only for SP, FL, MWFL, WFL versions.
Only for SP, FL, MWFL, WFL versions.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4009 |  |
Anti-glare louver.
The central elements can be adjusted +/- 60° for a perfect glare control.
Powder coated stainless steel.
Only for SP, FL, MWFL, WFL versions.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4007 |  |
Asymmetric screen.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4008 | |
Cylindrical screen.
Powder coated stainless steel.
Short version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4058 | |
Cylindrical screen.
Powder coated stainless steel.
Long version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3026 | |
Plate for fixture rotation.
Powder coated stainless steel.
| Code | Colour | Dimensions ØxH mm | |||
|---|---|---|---|---|---|
| 1E3028 | | 96x182 |
Earthspike.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E2825 | |
Pole bracket.
Anodised and powder coated aluminium.
Pole Ø 60mm (+/-2mm).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3027 | |
Pole multiple mounting system.
Powder coated stainless steel.
To be completed with 1E2825.
Max 4 projectors.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
1 / 2
| Code |
|---|
| A013C |
Surge protector compatible with CLASS I lighting fixtures.
DALI, DMX, 0-10V datalines compliance.
Operating voltage 230Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP20
