Projectors
DART Round Maxi
Code
1E3996EL
Light colour
3000K
80
80

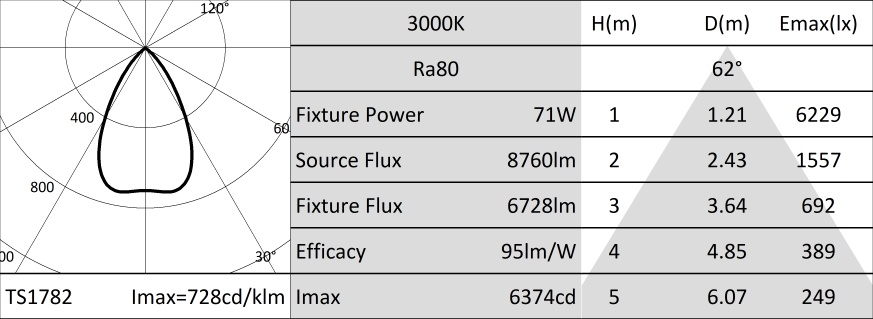

Light distribution
WFL
62°
62°
Output
71.1W
6728lm
6728lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra80. Ra90 version available on request.
Energy efficiency classC
Nominal power63W
Nominal flux8760lm
Colour rendering index80
Rf84
Rg97
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
WFL version: convex faceted mirrored anodised aluminium precision optics, diffusive moulded glass.
OpticREFLECTOR
Beam anglesWFL
Optical efficiency77%
Fixture flux6728lm
Luminous efficacy95lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Tempered extra clear front glass.
Colour and finishFerrite
Weight7.2Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
Version with integrated electronic ON-OFF power supply. Precabled with a 1.5m long feeding cable H07RN-F.
Fixture Power71W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Mounting bracket with aiming adjustability. Adjustable up to ±45° on the horizontal pane and +90°/-45° on the vertical plane.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4010 |  |
Blade of light filter.
PMMA holographic filter for a blade of light effect.
Completed with powder coated aluminum alloy holder ring.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4013 | |
Anti-glare louver.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4011 | |
Asymmetric screen.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4012 | |
Cylindrical screen.
Powder coated stainless steel.
Short version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E4059 | |
Cylindrical screen.
Powder coated stainless steel.
Long version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3026 | |
Plate for fixture rotation.
Powder coated stainless steel.
| Code | Colour | Dimensions ØxH mm | |||
|---|---|---|---|---|---|
| 1E3188 | | 150x352 |
Earthspike.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E2825 | |
Pole bracket.
Anodised and powder coated aluminium.
Pole Ø 60mm (+/-2mm).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3097 | |
Pole multiple mounting system.
Powder coated stainless steel.
To be completed with 1E2825.
Max 4 projectors.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1E3187 | |
Pole with base.
Powder coated stainless steel.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
