In-ground luminaires
Jedi Recessed RGBW
L. 1216mm
Code
1E4246
Light colour
3000K
Light distribution
FL
35°
35°
Output
14.3W
1314lm
1314lm
Power supply
Control
220-240Vac
DMX RDM
DMX RDM
Colour

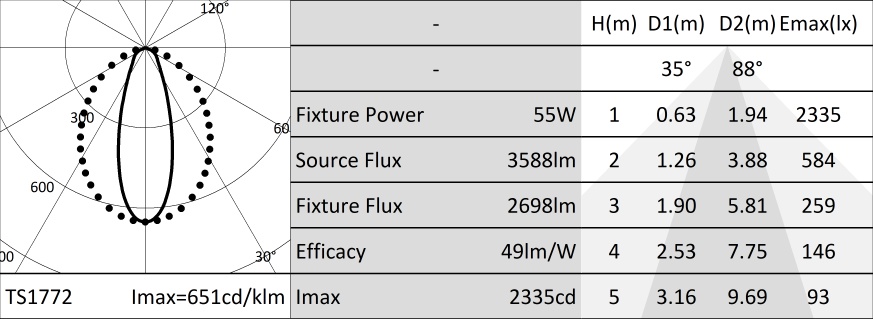

RGBW

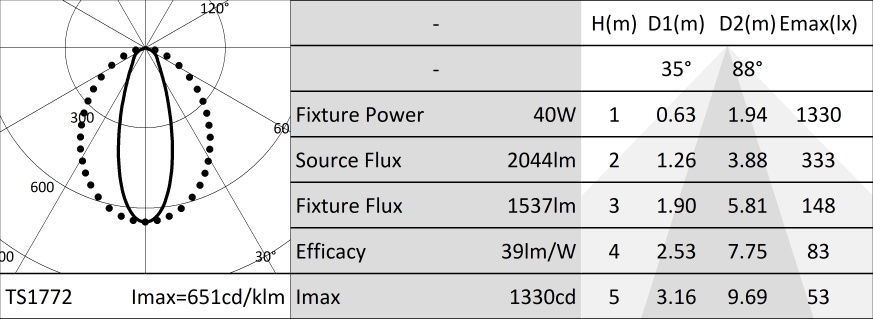

RGB

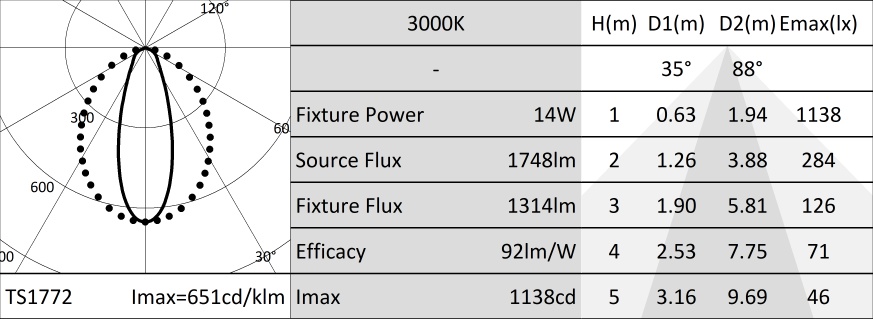

WHITE

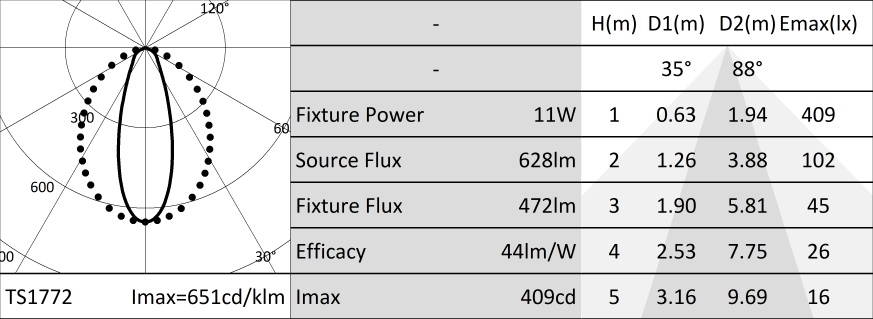

RED

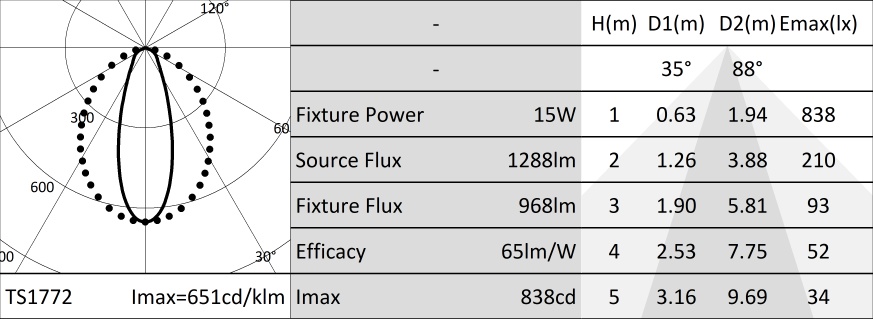

GREEN
BLUE
1 / 8
Technical Data
Source
LED Multichip RGBW module with white 3000K.
Energy efficiency classG
Nominal power45W
Nominal fluxSee photometries
CCT nominalSee photometries
SDCM2
Illuminotechnical characteristics
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter.
OpticHYBRID
Beam anglesFL
Optical efficiency75%
Fixture fluxRGBW - 2698lm
RGB - 1537lm
WHITE - 1314lm
RED - 472lm
GREEN - 968lm
BLUE - 189lm
RGB - 1537lm
WHITE - 1314lm
RED - 472lm
GREEN - 968lm
BLUE - 189lm
Luminous efficacyRGBW - 49lm/W
RGB - 39lm/W
WHITE - 92lm/W
RED - 44lm/W
GREEN - 65lm/W
BLUE - 13lm/W
RGB - 39lm/W
WHITE - 92lm/W
RED - 44lm/W
GREEN - 65lm/W
BLUE - 13lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 10mm thick glass flat screen. Brushed stainless steel (AISI 316) frame. The body of the fixture can resist a static load up to 20kN and vandalism (IK10). Anti-slip glass available on request.
Colour and finishAluminium
DimensionsL=1216mm
Weight7.5Kg
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK10
Electrical characteristics
Integrated electronic power supply. Controlled using DMX-RDM protocols that allow to programme the fixture remotely (no dip-switch) using the DMX data line. Pass-through power supply with 1 meter cable and 3-pole IP68 connectors. Pass-through DMX line connection with 5-pole IP68 panel connectors. Programming the fixtures is done using the USB-RDM programmer that is available as an accessory.
Fixture PowerSee photometries
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDMX RDM
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with an aluminium insertion box suitable for in-line installation.
Notes
LMS Casambi wireless control available on request. Photometrics show the maximum emission values of fixtures. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. 110-277Vac version available on request. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1E3509 | 1218 |
Extruded anodized aluminium insertion box.
Accessories
| Code |
|---|
| 1E2495 |
Features TORX HEAD, TX 30.
| Code |
|---|
| 1E2767 |
USB-RDM Programmer code.
DMX-RDM (Remote Device Management) address planner.
Used with the "RDM Targetti" software that can be downloaded for free from the Targetti website download section.
To be used with all RGBW products.
The USB-RDM programmer manages to direct DMX-RDM fixtures if there are no BUFFER or Splitter DMXs on the section.
Please refer to the instructions for more details.
| Code |
|---|
| A077 |
my-SCENARIO Show Store.
Programmable DMX interface that integrates the latest innovations in lighting control in architectural and entertainment applications.
It features USB Type-C and Ethernet ports for programming and remote control.
The unit can be fully programmed with ESA Pro 2 software (available for Windows and Mac users) or via mobile applications such as Arcolis (available for iOS or Android devices).
It can be fully customised: pixel mapping, triggering management, patch configuration and much more.
The system offers great possibilities for the control of your lighting installation: multi zone control (allowing the management of up to 5 indipendent zones), extended triggers (time/date, Sunrise/Sunset, input ports, TCP/UDP commands), 16-bit channels management, full recovery after power loss, up to 99 total scenes, and 1024+ DMX channels.
The intuitive backlit keyboard comes with 10 preset buttons for a user friendly experience.
| Code |
|---|
| 1T6499 |
myScenario Wall.
DMX controller with a glass touch sensitive screen for architectural applications.
It can control two different DMX universes (2x 512 channels).
Stand alone function or connected to a computer using a USB port.
Software for creating scenarios (that can be downloaded from the Targetti website) included.
It can manage 10 different lighting zones and 50 scenarios per zone.
The touch keys on the front make it possible to modify and recall programmed scenarios.
USB cable included.
To be used with all RGBW products.
1 / 2
| Code |
|---|
| A013A |
Surge protector compatible with CLASS I lighting fixtures.
Operating voltage 230-277Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS I
IP67
