Lighting Systems
Ivy Single projector
Code
1E4284CA
Light colour
4000K
90
90
Light distribution
NSP
8°
8°
Output
4.2W
235lm
235lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Emitter Ra90.
Energy efficiency classF
Nominal power3,8W
Nominal flux362lm
Colour rendering index90
Rf93
Rg101
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

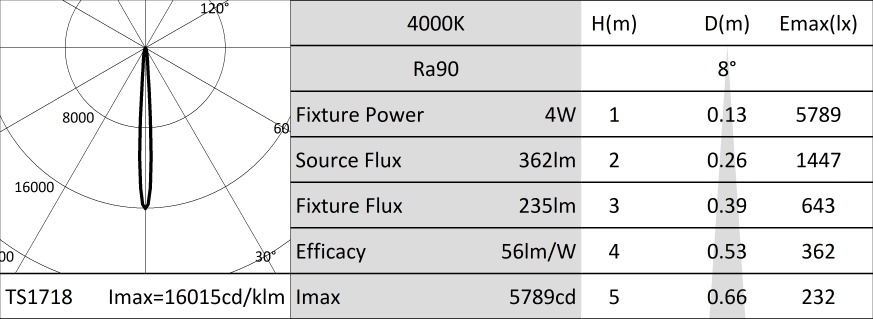

Illuminotechnical characteristics
NSP beam. Optics made of a lens in optical grade PMMA and a holographic diffusion filter.
OpticLENS
Beam anglesNSP
Optical efficiency65%
Fixture flux235lm
Luminous efficacy56lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical aluminium body obtained through CNC machinining process and protected with a layer of black anodization with a minimum thickness of 15µ. Powder painted white. Tempered extra clear front glass. Aluminium joint with locking system. Adjustability of the optical unit of 90° on the vertical plane (friction locking system) and 355° on the horizontal plane with the possibility of mechanical aiming locking through no tools system. Electronic components hosted inside a polymeric plastic box sealed by a silicone rubber gasket.
Colour and finishWhite
DimensionsL=148mm
Weight0.45Kg
VersionCASAMBI
Degree of protectionIP65
Electrical characteristics
Fixture Power4W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature-25°C / +35°C
Installation
Fast connection system of the modules through anodized aluminium clips. Free positining all over the installion profile according to installation needs with mechanical lock through Hex Key. Designed for connection in series through H05RN-F (0.15m + 0.15m) cable completed with male/female miniaturised IP65 connectors.
Notes
Version with built-in Casambi control system (Casambi Ready). DALI control system available using a special accessory. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| 1E4169 |  | ON-OFF |
48Vdc driver box (IP65).
L=450mm 90W.
Equipped with connection cable H05RN-F (0.15m + 0.15m) complete with male/female IP65 connectors for 220V and miniaturized female IP65 connector for 48V.
1 / 2
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| 1E4175 | | ON-OFF |
48Vdc driver box (IP65).
L=450mm 150W.
Equipped with connection cable H05RN-F (0.15m + 0.15m) complete with male/female IP65 connectors for 220V and miniaturized female IP65 connector for 48V.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1E2320 | IP67 | 48Vdc | 220-240Vac | 70W | 225x51x65 |
| 1E2321 | IP67 | 48Vdc | 220-240Vac | 150W | 225x51x65 |
Electronic ON-OFF power supply.
Cable length 0.5m (IN and OUT).
To be completed with Connection kit 1E4184.
To be completed with Connection kit 1E4184.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T6917EL | IP20 | 48Vdc | 220-240Vac | 60W | 225x36x60 |
| 1T6916EL | IP20 | 48Vdc | 220-240Vac | 130W | 240x49x60 |
Electronic ON-OFF power supply.
To be completed with Connection kit 1E4184.
To be completed with Connection kit 1E4184.
Accessories
1 / 2
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1E4270 | 500 | ||||
| 1E4181 | 1000 | ||||
| 1E4182 | 2000 | ||||
| 1E4183 | 3000 |
Connection cable complete with male/female connectors.
| Code |
|---|
| 1E4171 |
Microscrewdriver with hexagonal head (diameter 0.9mm) for wiring 1E4184 connection kit.
| Code |
|---|
| 1E4184 |
Connection kit 24/48V.
Wire not included. Maximum cable diameter 7.5mm. To be used for lengths >3m.
Wire not included. Maximum cable diameter 7.5mm. To be used for lengths >3m.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E3184 |
IP68 4-way cable connector (5 pole).
| Code |
|---|
| 1T8173CA |
Bridge DALI/Casambi: a fixture that allows fixtures equipped with mesh Bluetooth Casambi to interface with a traditional DALI system and to be adjusted by a DALI control unit.
Inside the usual DALI circuit it is possible to have a maximum of 64 cabled DALI and Casambi wireless devices.
It only works with Casambi Evolution networks.
The DALI Bridge is transparent in the DALI system, and therefore does not require an address.
There is no need for a power supply given that it is supplied directly by the DALI bus.
To provide IP68 rating to the fixture complete with code 1E3184.
LxHxP=40.4x14x36.3mm.
