Projectors
Jedi Compact Outdoor RGBW Projector
Louvre - Remote driver - L. 593,5mm
Code
1E4314
Light colour
3000K
Light distribution
Wall Washer
Output
6.3W
397lm
397lm
Power supply
Control
500mA
Colour

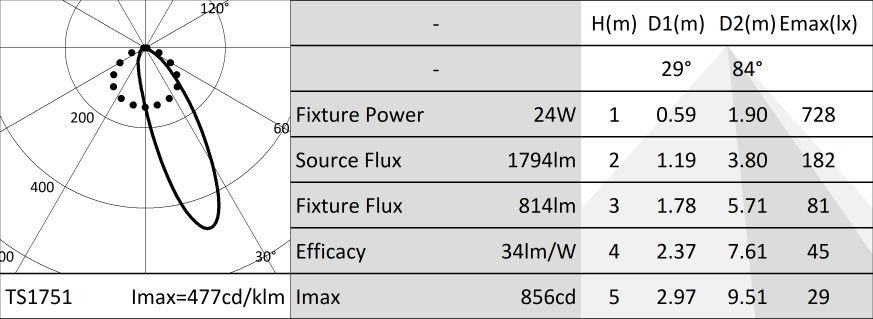

RGBW

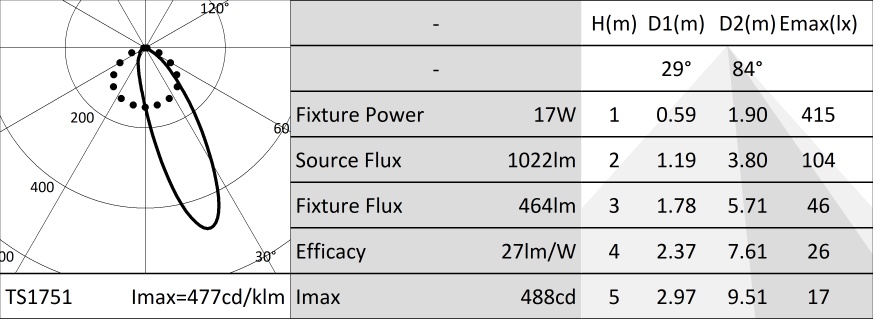

RGB

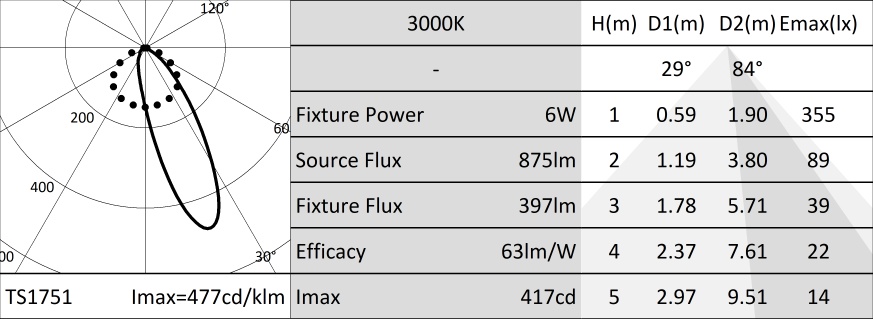

WHITE

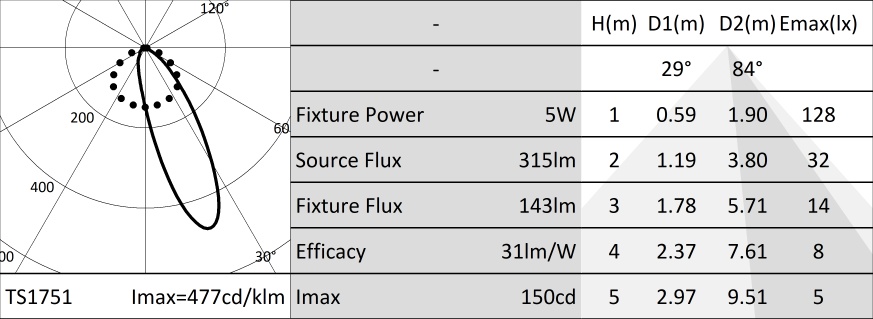

RED
GREEN
BLUE
1 / 8
Technical Data
Source
Linear Mid Power Quad-chip RGBW LED board. Color temperature of the white source: 3000K.
Energy efficiency classG
Nominal power24W
Nominal fluxSee photometries
CCT nominalSee photometries
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter. Wall Washer version.
OpticWALL WASHER
Beam anglesWW
Optical efficiency45%
Fixture fluxRGBW - 814lm
RGB - 464lm
WHITE - 397lm
RED - 143lm
GREEN - 292lm
BLUE - 58lm
RGB - 464lm
WHITE - 397lm
RED - 143lm
GREEN - 292lm
BLUE - 58lm
Luminous efficacyRGBW - 34lm/W
RGB - 27lm/W
WHITE - 63lm/W
RED - 31lm/W
GREEN - 45lm/W
BLUE - 9lm/W
RGB - 27lm/W
WHITE - 63lm/W
RED - 31lm/W
GREEN - 45lm/W
BLUE - 9lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishAluminium
DimensionsL=593,5mm
Weight1.75Kg
VersionLOUVRE - REMOTE DRIVER
Degree of protectionIP66,IP67
Mechanical ResistanceIK08
Electrical characteristics
Remote driver version. Controlled using DMX-RDM protocols that allow to programme the fixture remotely (no dip-switch) using the DMX data line. Precabled with 1m 8x0.5mm² cable (Ø 8.5mm). Programming the fixtures is done using the USB-RDM programmer that is available as an accessory.
Fixture PowerSee photometries
Power supply500mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
To be completed with stainless steel adjustable brackets.
Notes
LMS Casambi wireless control available on request. Photometrics show the maximum emission values of fixtures. Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional.
Related codes
| Code |
|---|
| 1E4271 |
DMX RDM 4 channel RGBW driver - 500mA.
50W, LxHxP=250x82x140mm, 120-277Vac.
IP68 gray powder coated aluminum box.
| Code |
|---|
| 1E3304 |
Stainless steel short bracket kit for surface installation (2 pieces).
Rotation +/-90°.
| Code |
|---|
| 1E3306 |
Stainless steel long bracket kit for surface installation (2 pieces).
Rotation +/-90°.
Accessories
| Code |
|---|
| 1E4362 |
Linear connection box IP66/IP68.
8 poles.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
| Code |
|---|
| 1E2767 |
USB-RDM Programmer code.
DMX-RDM (Remote Device Management) address planner.
Used with the "RDM Targetti" software that can be downloaded for free from the Targetti website download section.
To be used with all RGBW products.
The USB-RDM programmer manages to direct DMX-RDM fixtures if there are no BUFFER or Splitter DMXs on the section.
Please refer to the instructions for more details.
| Code |
|---|
| A077 |
my-SCENARIO Show Store.
Programmable DMX interface that integrates the latest innovations in lighting control in architectural and entertainment applications.
It features USB Type-C and Ethernet ports for programming and remote control.
The unit can be fully programmed with ESA Pro 2 software (available for Windows and Mac users) or via mobile applications such as Arcolis (available for iOS or Android devices).
It can be fully customised: pixel mapping, triggering management, patch configuration and much more.
The system offers great possibilities for the control of your lighting installation: multi zone control (allowing the management of up to 5 indipendent zones), extended triggers (time/date, Sunrise/Sunset, input ports, TCP/UDP commands), 16-bit channels management, full recovery after power loss, up to 99 total scenes, and 1024+ DMX channels.
The intuitive backlit keyboard comes with 10 preset buttons for a user friendly experience.
| Code |
|---|
| 1T6499 |
myScenario Wall.
DMX controller with a glass touch sensitive screen for architectural applications.
It can control two different DMX universes (2x 512 channels).
Stand alone function or connected to a computer using a USB port.
Software for creating scenarios (that can be downloaded from the Targetti website) included.
It can manage 10 different lighting zones and 50 scenarios per zone.
The touch keys on the front make it possible to modify and recall programmed scenarios.
USB cable included.
To be used with all RGBW products.
