Surface luminaires
Mrs Bo Wall
Angled
Code
1E4351
Light colour
3500K
80
80

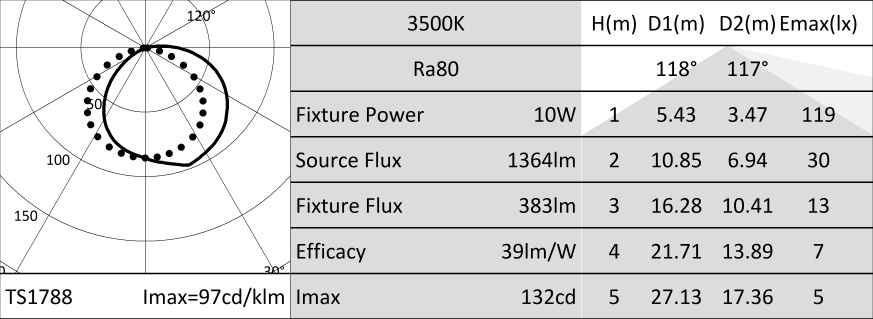

Light distribution
Output
9.8W
383lm
383lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra80. Ra90 on request.
Energy efficiency classE
Nominal power8,8W
Nominal flux1364lm
Colour rendering index80
Rf83
Rg95
CCT nominal3500K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
A high reflectance anodised aluminium printed reflector. Opal polycarbonate diffusive screen.
EmissionELLIPTICAL
OpticREFLECTOR
Optical efficiency28%
Fixture flux383lm
Luminous efficacy39lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Anodized die-cast aluminium powder coated optical head. Wall mounting bracket (included in the product) in aluminum with cataphoresis protective treatment and coated with powder painting.
Colour and finishFerrite
DimensionsØ 160mm
Weight1.11Kg
Degree of protectionIP66
Mechanical ResistanceIK10
Electrical characteristics
To be completed with special 24Vdc driver. Casambi control system available using a dedicated accessory (only with DALI dimmer).
Fixture Power10W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature0°C / +35°C
Installation
Stainless steel recessed-mounting box for housing the connection terminal block available as an accessory.
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional.
Related codes
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1E4359 | IP67 | 24Vdc | 220-240Vac | 14,4W | 79x25x38 |
| 1T3726 | IP20 | 24Vdc | 220-240Vac | 50W | 185x22x64 |
| 1T3586 | IP67 | 24Vdc | 220-240Vac | 75W | 140x32x63 |
| 1T3587 | IP67 | 24Vdc | 220-240Vac | 100W | 230x87x43 |
| 1T3588 | IP67 | 24Vdc | 220-240Vac | 200W | 238x42x67 |
Electronic ON-OFF power supply.
Accessories
1 / 2
| Code |
|---|
| 1E4357 |
Outer casing for electrical connections.
1 / 2
| Code |
|---|
| 1E4358 |
Connection box - Connection in parallel 1IN-2OUT.
| Code |
|---|
| 1T6581 |
Dimmer for 12-24Vdc constant voltage LED driver.
1-10V/DALI control input.
IP20
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
