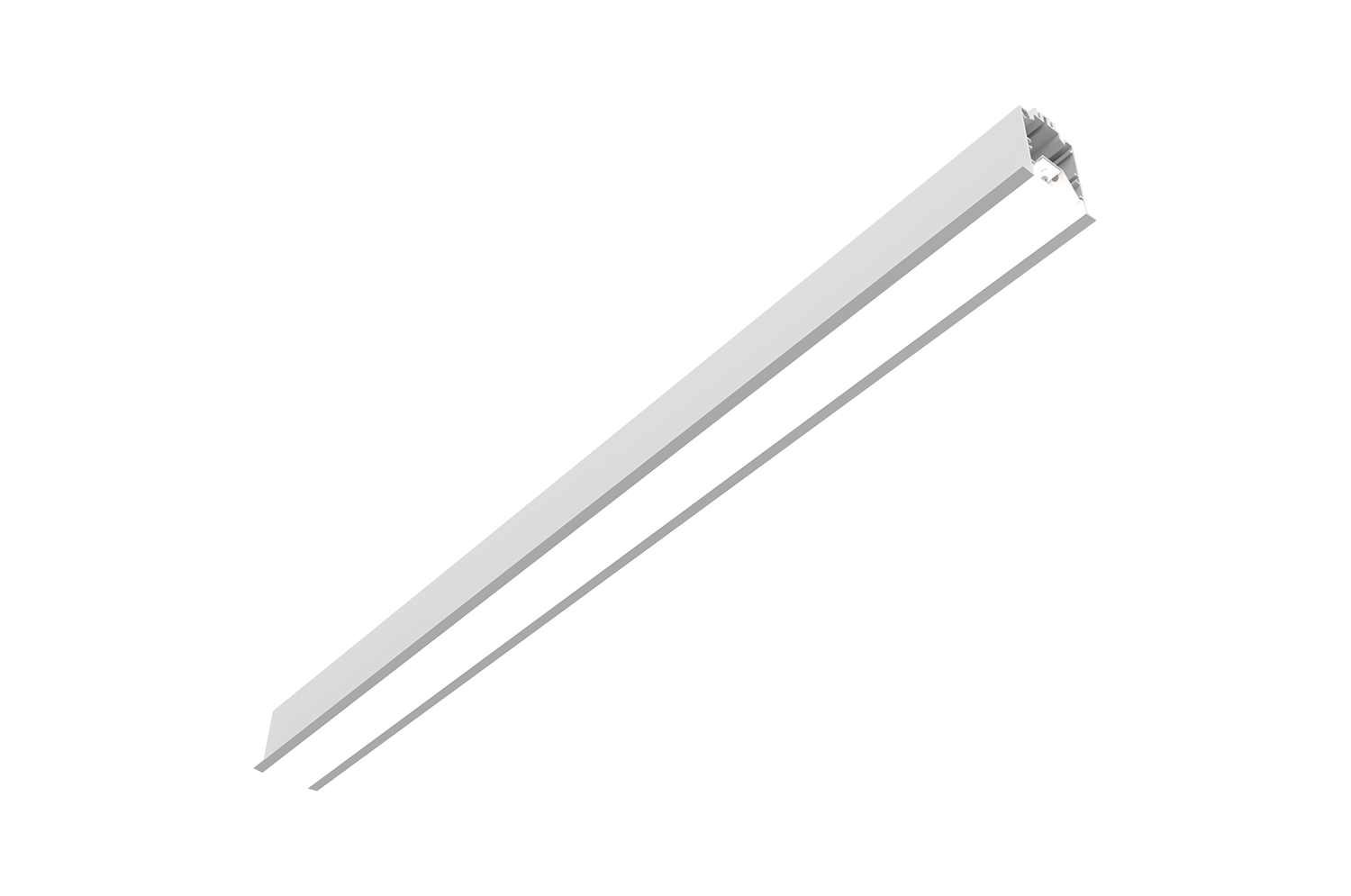

Logico System - Recessed with flange - Continuous light module
L. 1682mm
Code
1T5477DA
Light colour
3000K
80
80
Light distribution
Wall Washer
Output
40W
4108lm
4108lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra80. Tunable White version available on request.
Energy efficiency classD
Nominal power36W
Nominal flux5220lm
Colour rendering index80
Rf82.9
Rg97
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics

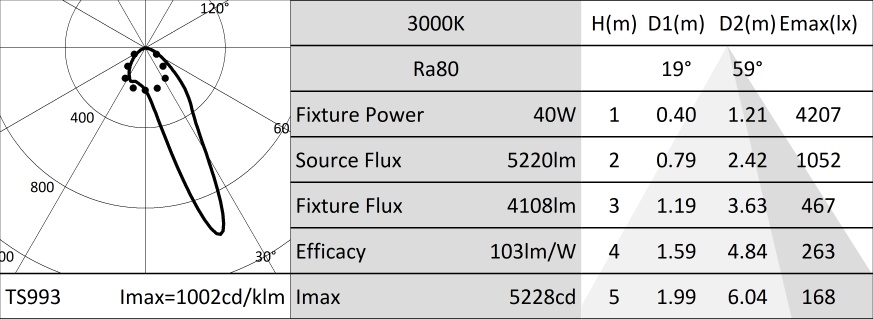

Wall Washer - Optical system composed of a highly reflective polished aluminium reflector, a PMMA cylindrical lens, a holographic filter and transparent polycarbonate cover.
EmissionDOWN WW
Optical efficiency79%
Fixture flux4108lm
Luminous efficacy103lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
White painted extruded aluminium body, available in four different lengths. Magnetic installation system to mount the light unit into the housing complete with an anti-fall safety cable.
Colour and finishPlaster white
DimensionsL=1682mm
Weight5Kg
VersionLINEAR
Degree of protectionIP20
Electrical characteristics
Integrated DALI power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW). Emergency Pack available on request. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power40W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. To be completed with end caps.
Notes
Casambi control system available using a dedicated accessory. Check mounting instructions to verify the quantity of DALI drivers installed. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
ENEC.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1T5908 |

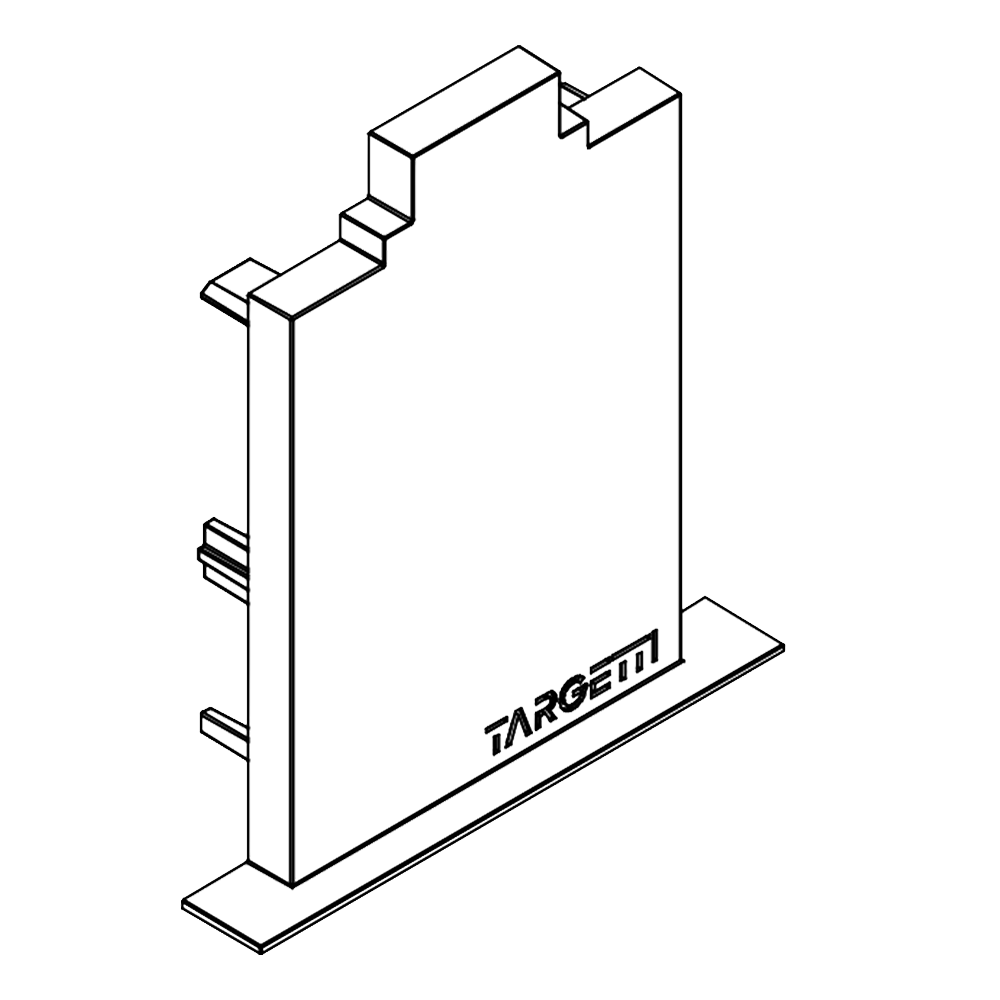

End caps for the recessed version with a flange.
White.
2x
Accessories
| Code |
|---|
| 1T6502 |
Accessory designed to improve the visual comfort of the Wall Washer version.
To be installed on a standard reflector.
Made of matte black painted aluminium.
280mm in length; to be ordered in the following quantities for every fixture length: 6 for the 1682mm version.
| Code |
|---|
| 1T5911 |
Linear electrical connector.
EL/DALI.
1 / 2
| Code |
|---|
| 1T5349 |
IP20 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 2T0131 |
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER 0/1-10V
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
