Lighting Systems
Logico System - Recessed with flange - Continuous light module
L. 1682mm
Code
1T5480EL90
Light colour
4000K
90
90
Light distribution
Wall Washer
Output
81W
6913lm
6913lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90. Tunable White version available on request.
Energy efficiency classE
Nominal power72W
Nominal flux8784lm
Colour rendering index90
Rf89.8
Rg98.7
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

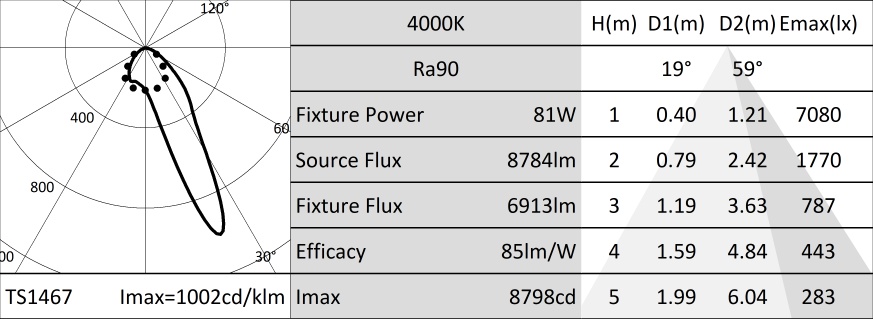

Illuminotechnical characteristics
Wall Washer - Optical system composed of a highly reflective polished aluminium reflector, a PMMA cylindrical lens, a holographic filter and transparent polycarbonate cover.
EmissionDOWN WW
Optical efficiency79%
Fixture flux6913lm
Luminous efficacy85lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted extruded aluminium body, available in four different lengths. Magnetic installation system to mount the light unit into the housing complete with an anti-fall safety cable.
Colour and finishPlaster white
DimensionsL=1682mm
Weight5Kg
VersionLINEAR
Degree of protectionIP20
Electrical characteristics
Integrated electronic ON-OFF power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW). Emergency Pack available on request. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power81W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. To be completed with end caps.
Notes
110-277Vac version available on request.
Regulations and Certifications
ENEC.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1T5908 |
End caps for the recessed version with a flange.
White.
2x
Accessories
| Code |
|---|
| 1T6502 |
Accessory designed to improve the visual comfort of the Wall Washer version.
To be installed on a standard reflector.
Made of matte black painted aluminium.
280mm in length; to be ordered in the following quantities for every fixture length: 6 for the 1682mm version.
| Code |
|---|
| 1T5911 |
Linear electrical connector.
EL/DALI.
