Lighting Systems

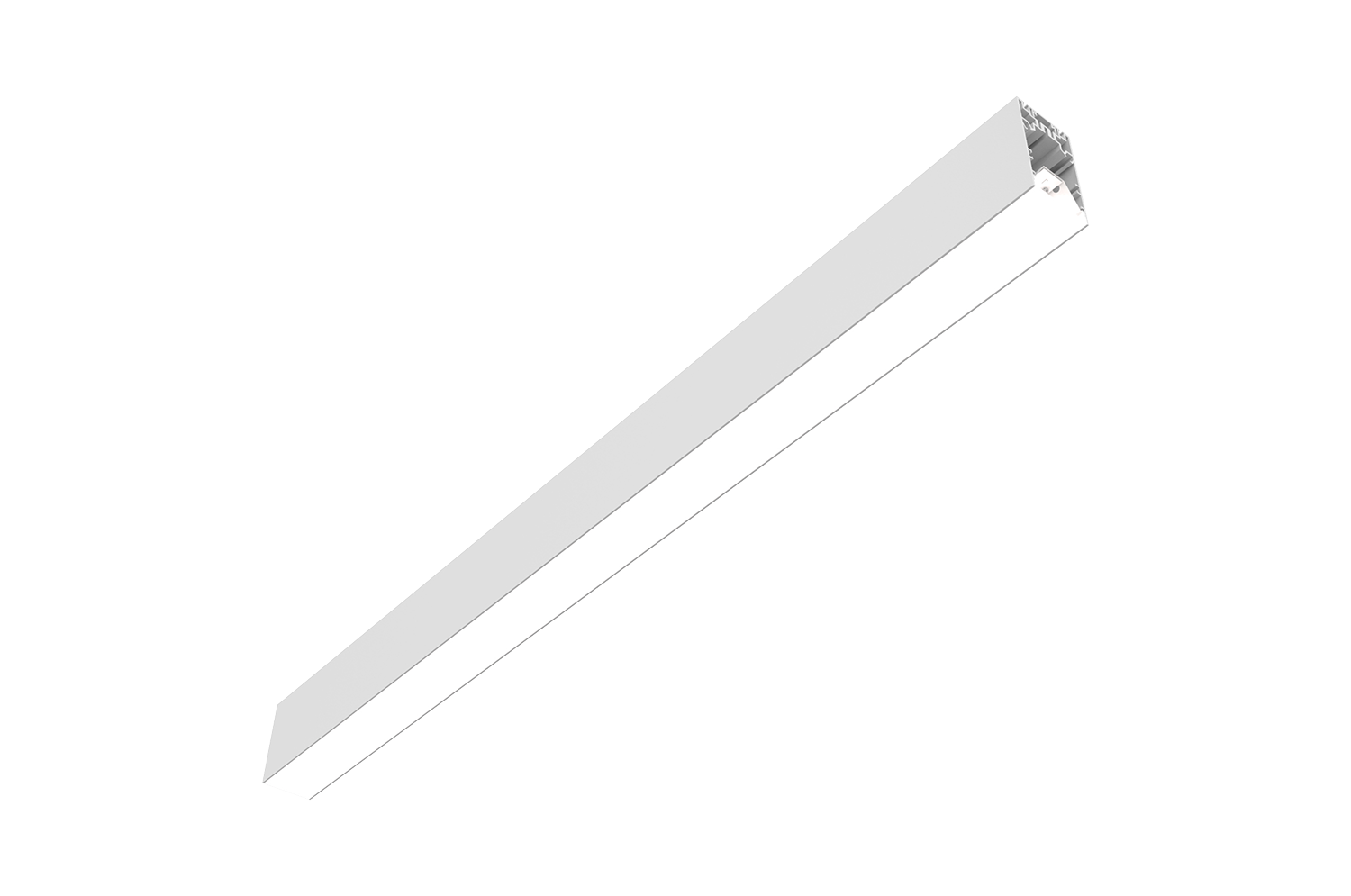

Logico System - Ceiling/Suspension - Continuous light module
L. 1682mm
Code
1T5705DA
Light colour
3000K
80
80
Light distribution
Opal
Output
107W
9381lm
9381lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra80. Tunable White version available on request.
Energy efficiency classD
Nominal power96W
Nominal flux13800lm
Colour rendering index80
Rf82.9
Rg97
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

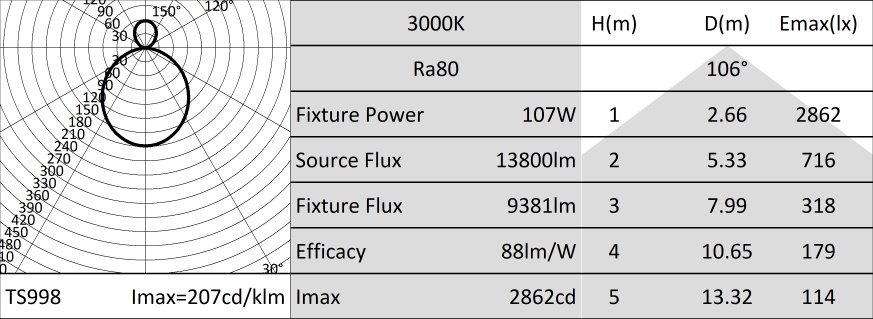

Illuminotechnical characteristics
Direct/indirect emission. Diffused light with opal screen - Highly reflective brushed aluminium reflector and opaline polycarbonate screen.
EmissionUP-DOWN OPAL
Optical efficiency68%
Fixture flux9381lm
Luminous efficacy88lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
White painted extruded aluminium body, available in four different lengths. Magnetic installation system to mount the light unit into the housing complete with an anti-fall safety cable.
Colour and finishDeep black
DimensionsL=1682mm
Weight6.1Kg
VersionLINEAR
Degree of protectionIP20
Electrical characteristics
Integrated DALI power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW for ceiling and recessed versions; max 0,6kW for the suspended version). Emergency Pack available on request. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power107W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. For other configurations accessorise with special X, T and L connectors. To be completed with mounting systems and end caps.
Notes
Casambi control system available using a dedicated accessory. Check mounting instructions to verify the quantity of DALI drivers installed. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
ENEC.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5938 |  |

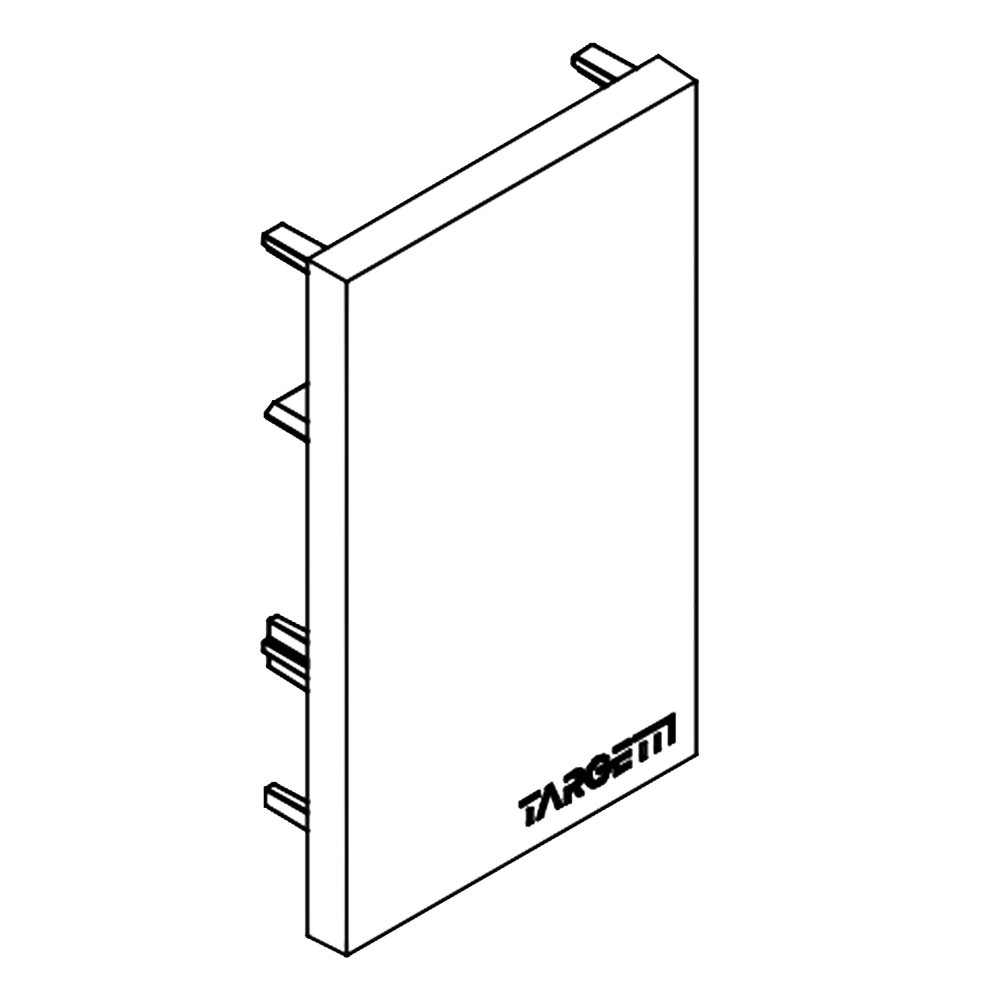

End caps for Ceiling Mounted and Suspension.
2x
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6920 | |

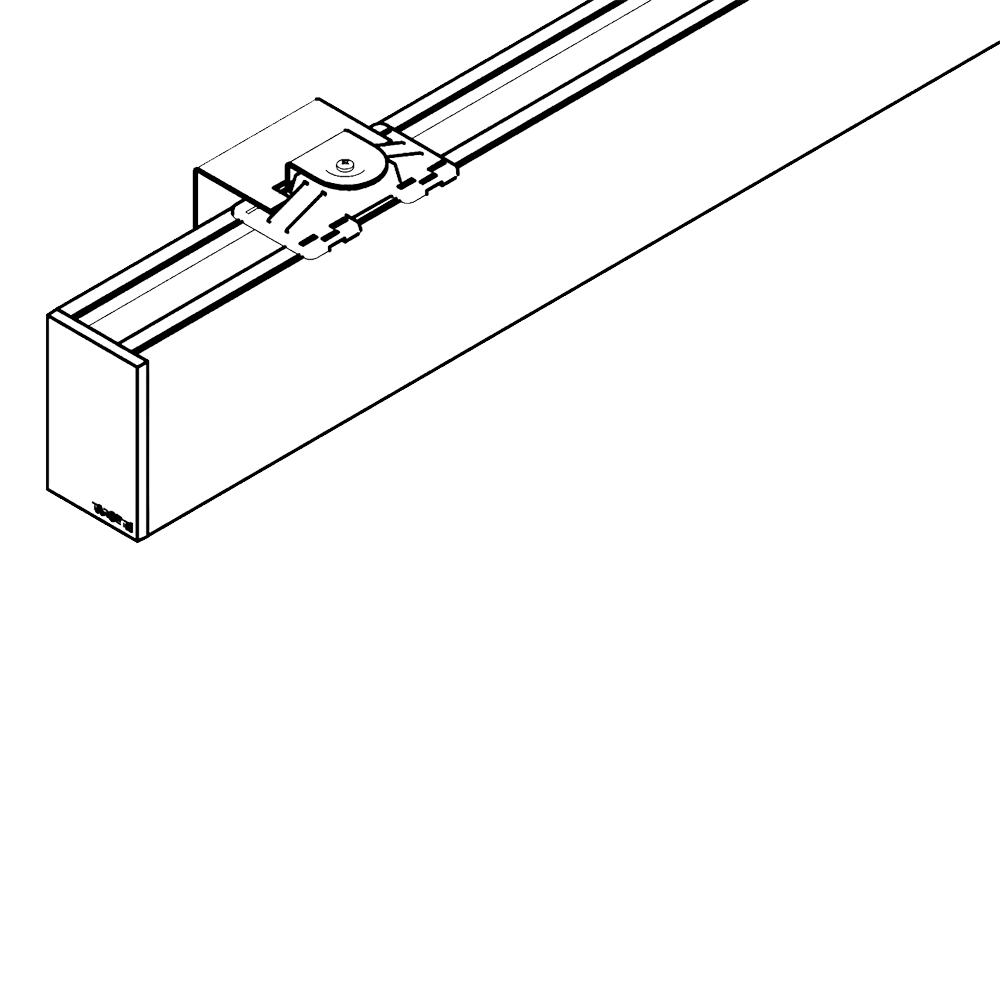

Wall installation: painted metal bracket.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T5900 | | 2000 | |||
| 1T5903 | | 4000 |

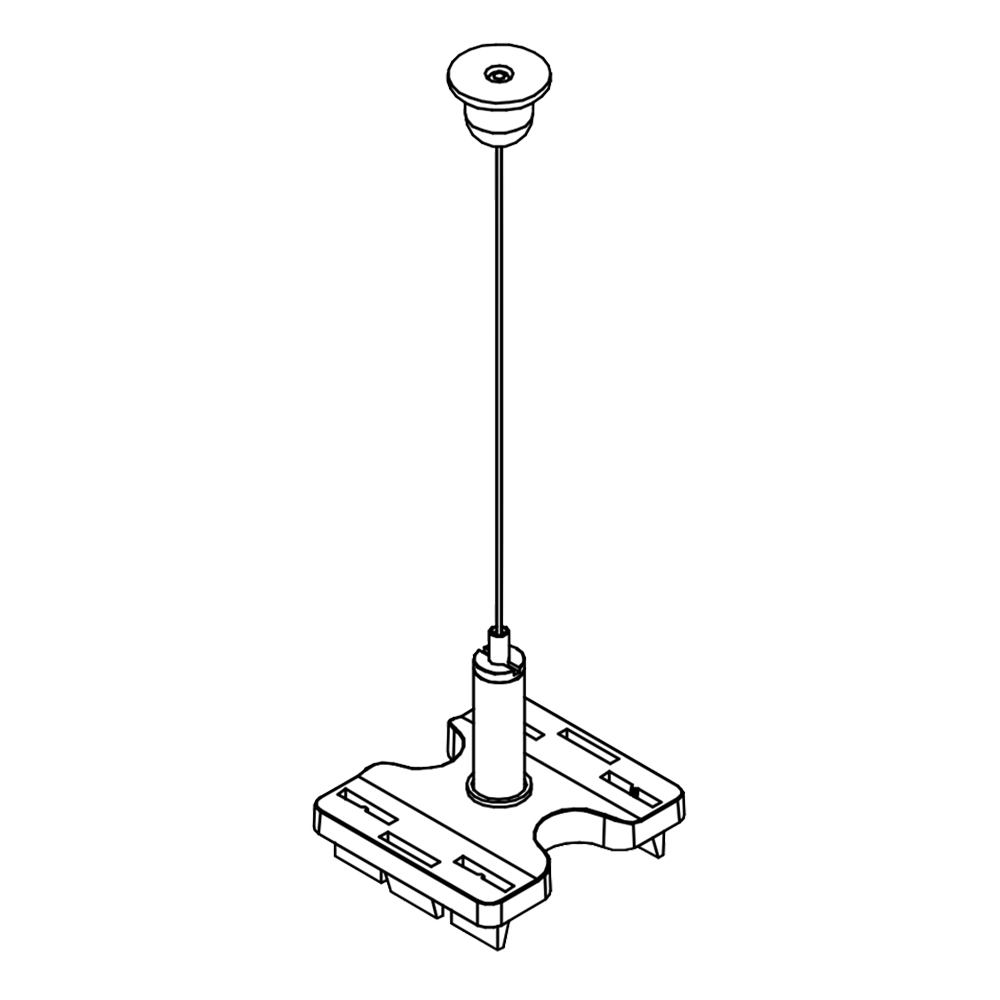

Suspension cable.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
Suspension cable compatible with ceiling or wall installations, even inclined.
| Code | Colour | Driver | L mm | ||
|---|---|---|---|---|---|
| 1T5906DA | | DALI | 4000 |

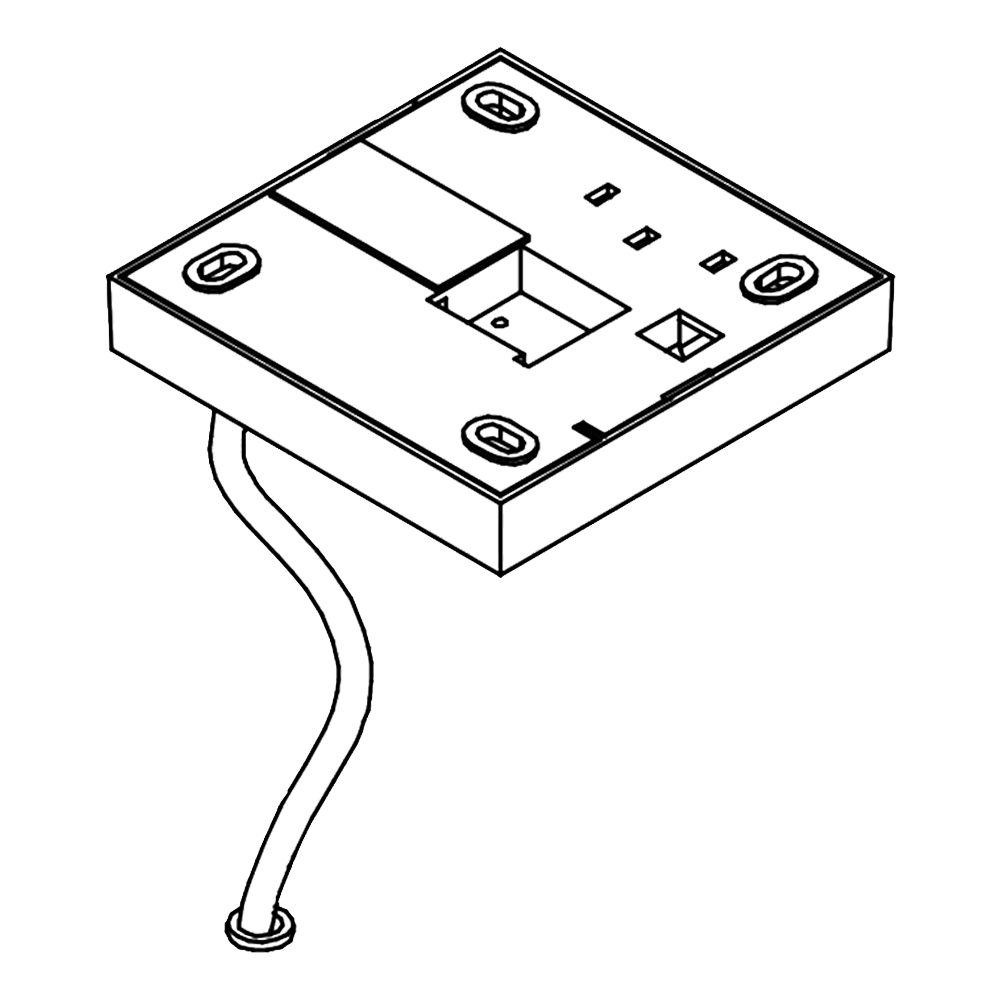

Suspension installation kit: power cable complete with a painted polycarbonate rosette.
Max 0.6kW.
Accessories
| Code |
|---|
| 1T5911 |

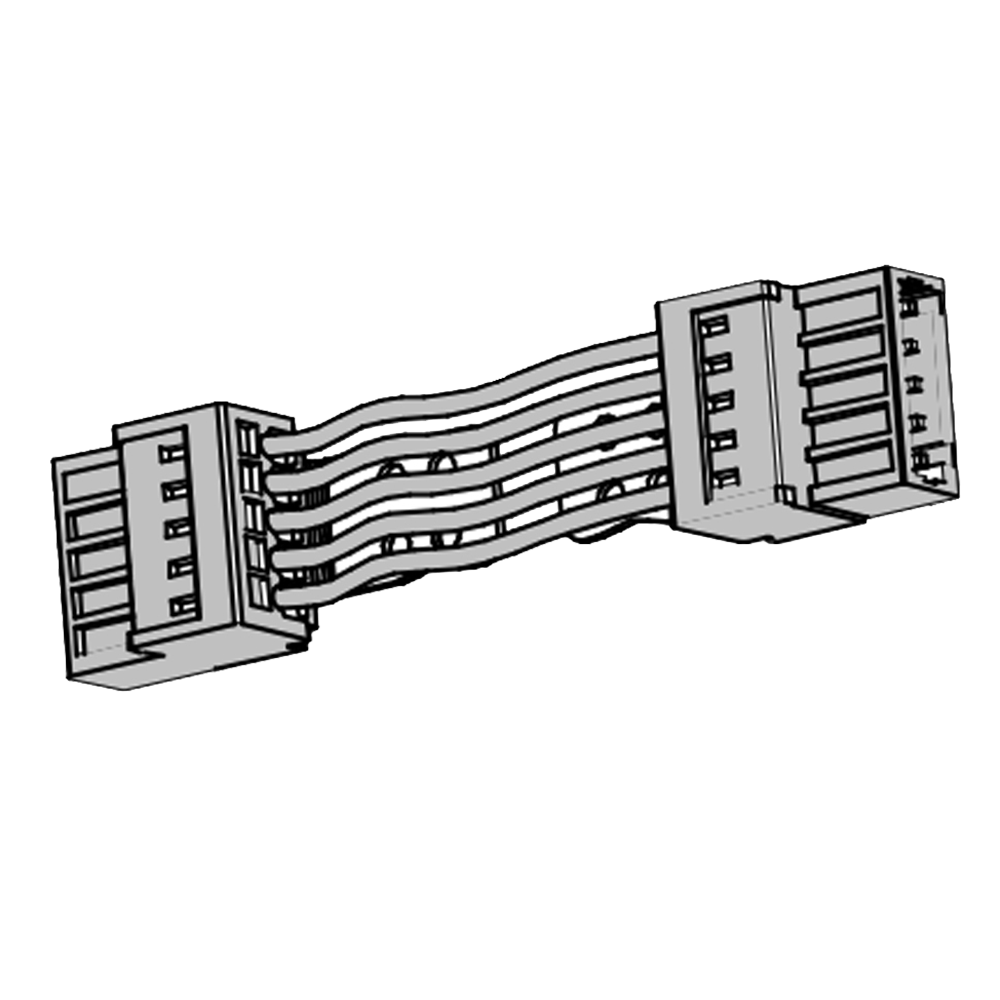

Linear electrical connector.
EL/DALI.
1 / 2
| Code |
|---|
| 2T0131 |
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER 0/1-10V
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
