Lighting Systems
Fortyeight Label 2
Short arm
Code
1T6642DA
Light colour
2700K
90
90
Light distribution
SP
13°
13°
Output
3.8W
144lm
144lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Ra90 LED Emitter. 3500K on request.
Energy efficiency classG
Nominal power2,6W
Nominal flux171lm
Colour rendering index90
Rf87.6
Rg103.9
CCT nominal2700K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C

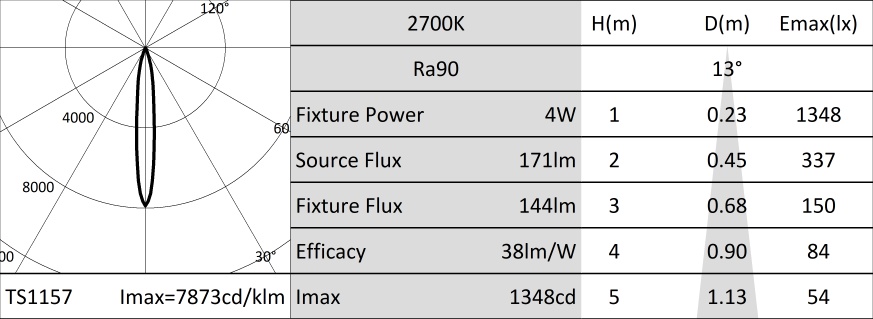

Illuminotechnical characteristics
SP - transparent PMMA lens and holographic filter with different openings depending on the version with a black silicone cut off ring.
OpticLENS
Beam anglesSP
Optical efficiency84%
Fixture flux144lm
Luminous efficacy38lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted aluminium body. Optical frame adjustable from 0° to 90° on the vertical plane, 360° on the horizontal plane.
Colour and finishDeep black
DimensionsD=23mm
Weight0.13Kg
VersionDALI
Degree of protectionIP20
Electrical characteristics
DALI version with track power supply. Casambi control system available using a dedicated accessory.
Fixture Power4W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. The arm is and the adapter are supplied in the same colour as the body of the projector. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T6939 | 17 |
Holographic PMMA filter with blade of light effect.
Allows the beam to be made oval; combined with spot and flood optics the effect appears more pronounced.
