Lighting Systems

Fortyeight Label 4
Short arm

Code

1T6657EL

Light colour
2700K
90
Light distribution
SP
18°
Output
9.5W
638lm
Power supply Control
48Vdc
Colour
0.16
IP20
1 / 3
Prev
Next

Technical Data

Source
High efficiency Chip on Board LED Ra90. 3500K on request.
Energy efficiency classF
Nominal power8,7W
Nominal flux1008lm
Colour rendering index90
Rf92
Rg99
CCT nominal2700K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C

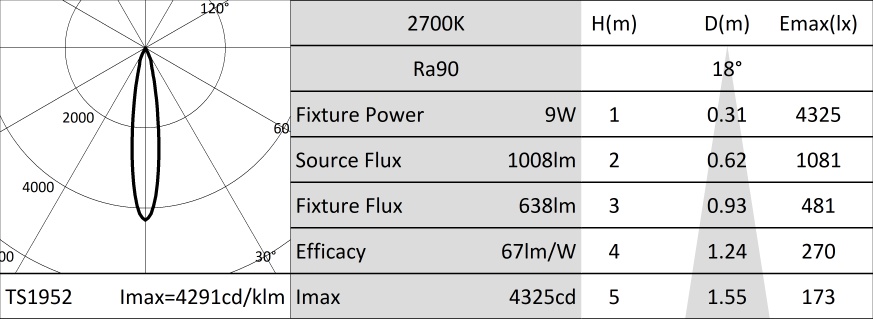

Illuminotechnical characteristics
SP - metallised polycarbonate precision optics, a holographic diffusion filter and a black silicone cut off ring.
OpticREFLECTOR
Beam anglesSP
Optical efficiency63%
Fixture flux638lm
Luminous efficacy67lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. The optical unit can be adjusted from 0° a 90° on the vertical plane and 360° on the horizontal plane with friction locking system.
Colour and finishPlaster white
DimensionsD=40mm
Weight0.16Kg
VersionON-OFF
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF power supply for track.
Fixture Power10W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. The arm is and the adapter are supplied in the same colour as the body of the projector. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Accessories
1 / 2
Prev
Next
CodeØ mm
1T693134
PMMA holographic filter with blade effect to ovalize the light beam; more evident when combined with spot and flood optics.
1 / 2
Prev
Next
CodeØ mm
1T693034
Anti-glare louver. Black painted metal honeycomb structure. Complete with holographic diffusion filter.

Downloads

Fortyeight Label 4 - Short arm
