Lighting Systems

Fortyeight Label 2
Long arm

Code

1T6702DA

Light colour
2700K
90
Light distribution
FL
31°
Output
3.8W
129lm
Power supply Control
48Vdc
Colour
0.13
IP20
1 / 3
Prev
Next

Technical Data

Source
High efficiency Ra90 LED Emitter. 3500K on request.
Energy efficiency classG
Nominal power2,6W
Nominal flux171lm
Colour rendering index90
Rf87.6
Rg103.9
CCT nominal2700K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C

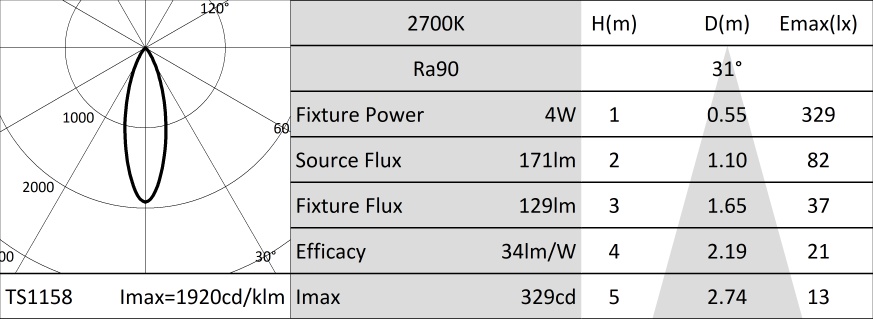

Illuminotechnical characteristics
FL- transparent PMMA lens and holographic filter with different openings depending on the version with a black silicone cut off ring.
OpticLENS
Beam anglesFL
Optical efficiency76%
Fixture flux129lm
Luminous efficacy34lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted aluminium body. Optical frame adjustable from 0° to 90° on the vertical plane, 360° on the horizontal plane.
Colour and finishDeep black
DimensionsD=23mm
Weight0.13Kg
VersionLONG ARM DALI
Degree of protectionIP20
Electrical characteristics
DALI version with track power supply. Casambi control system available using a dedicated accessory.
Fixture Power4W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Long bracket version for insertion into the trimless deep track version. Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. The arm is and the adapter are supplied in the same colour as the body of the projector. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Accessories

CodeØ mm
1T693917
Holographic PMMA filter with blade of light effect. Allows the beam to be made oval; combined with spot and flood optics the effect appears more pronounced.
