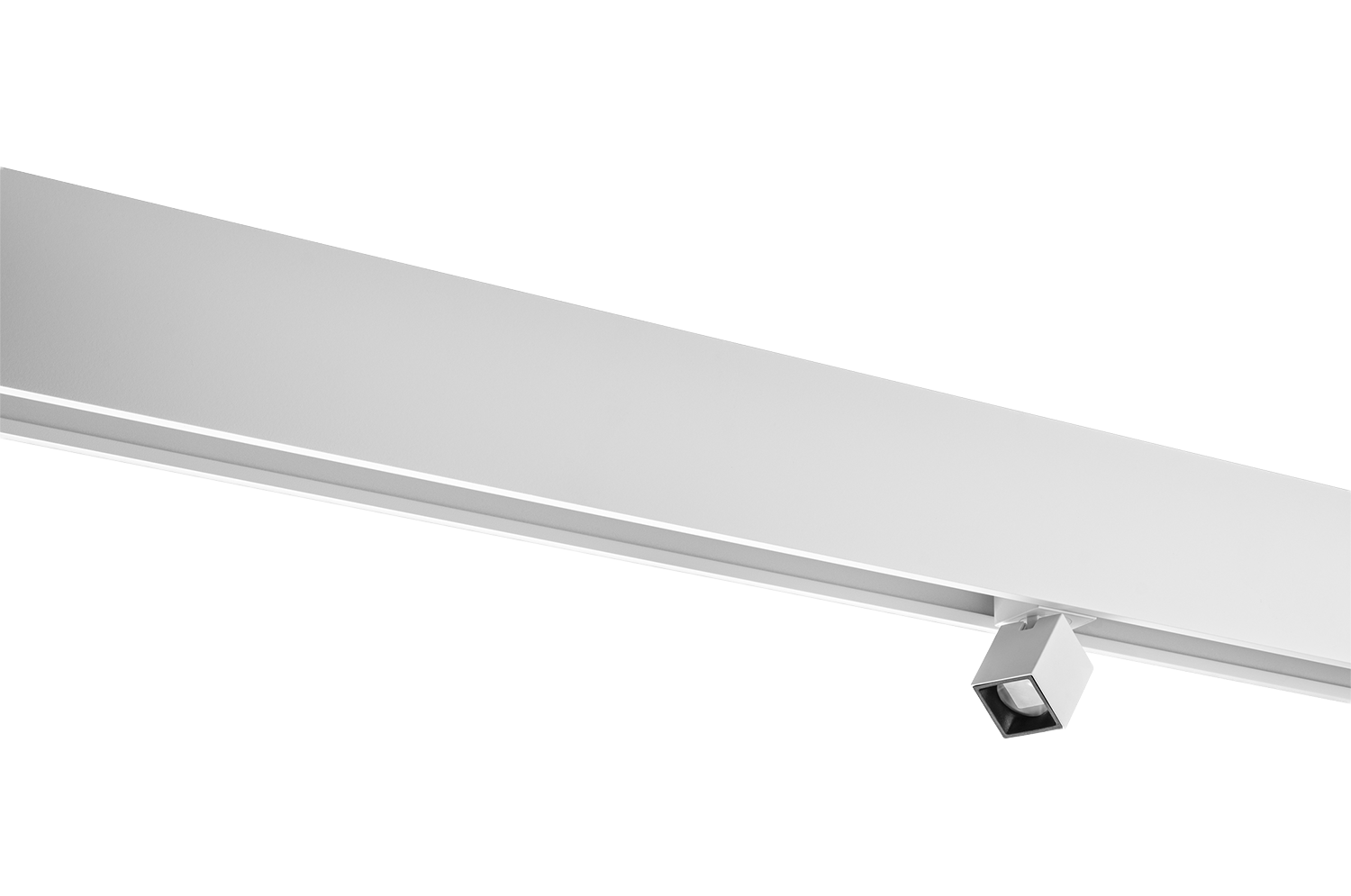

Oz Ceiling/Suspension installation profile - Small
Code
1T7044
Colour
1 / 2
Technical Data
Concept
Ceiling/suspension installation profile for 25x25mm light modules.
Mechanical characteristics
Extruded painted aluminium profile. Central/end module.
Colour and finishPlaster white
DimensionsAxBxH 1000x39x67mm
Weight0.865Kg
VersionFor 25x25mm light modules - Central/end module
Installation
For stand-alone installation only used head modules. For system installation it is necessary to start the configuration with a head module. For closed configurations it is necessary to order a minimum of two head modules or multiples of two to install back to back.
Notes
To be completed with Power Track.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7062 |  |

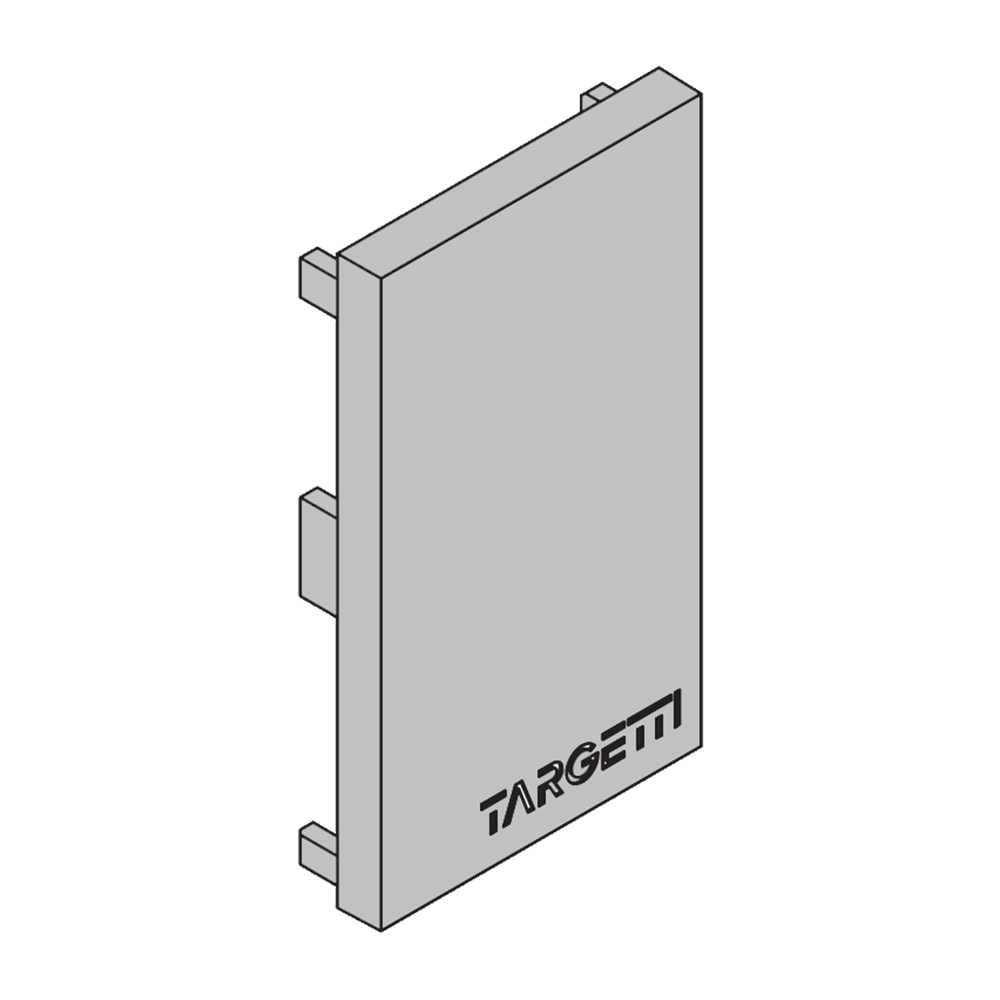

Kit containing 2 profile end caps.
For small ceiling/suspension mounted profiles.
| Code | |||||
|---|---|---|---|---|---|
| 1T7065 |
Ceiling installation kit.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
| Code | |||||
|---|---|---|---|---|---|
| 1T7066 |
Suspension installation kit.
L=2000mm.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
Accessories
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7056 | |

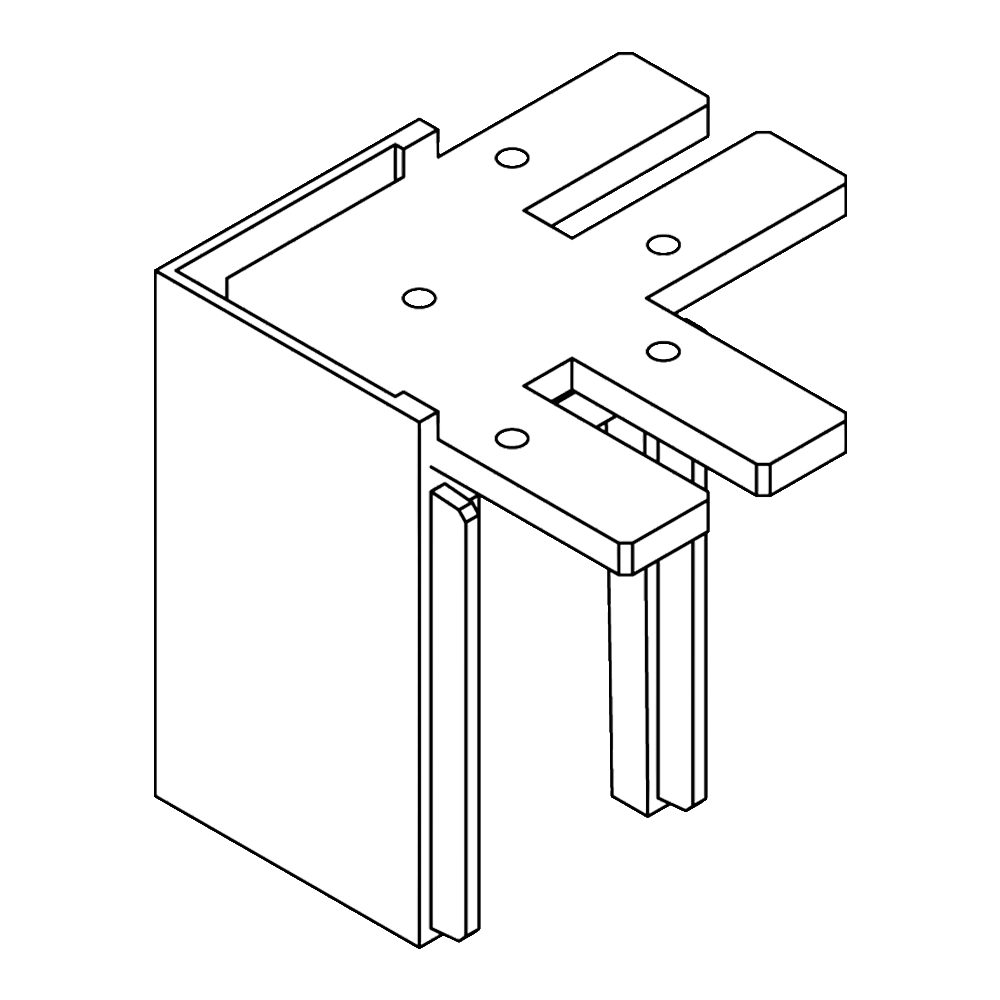

Mechanical L connector.
For small ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7057 | |

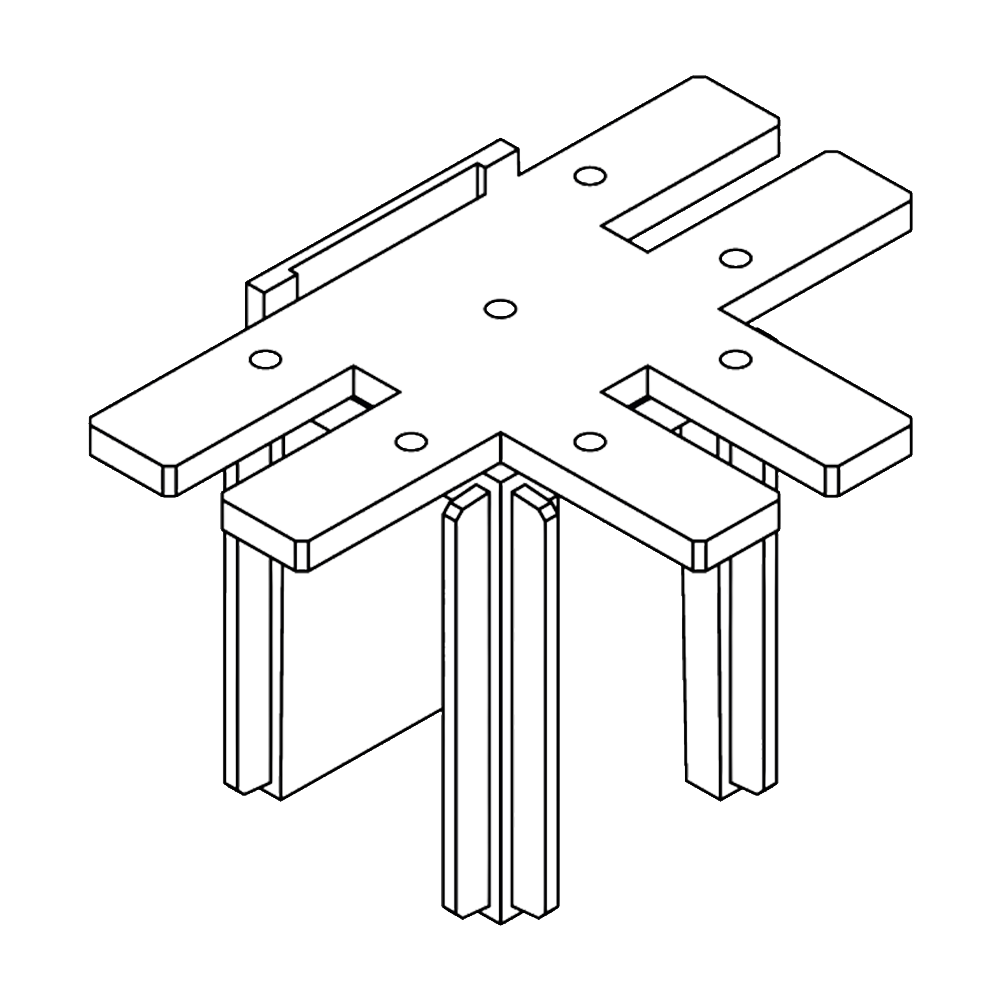

Mechanical T connector.
For small ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7058 | |

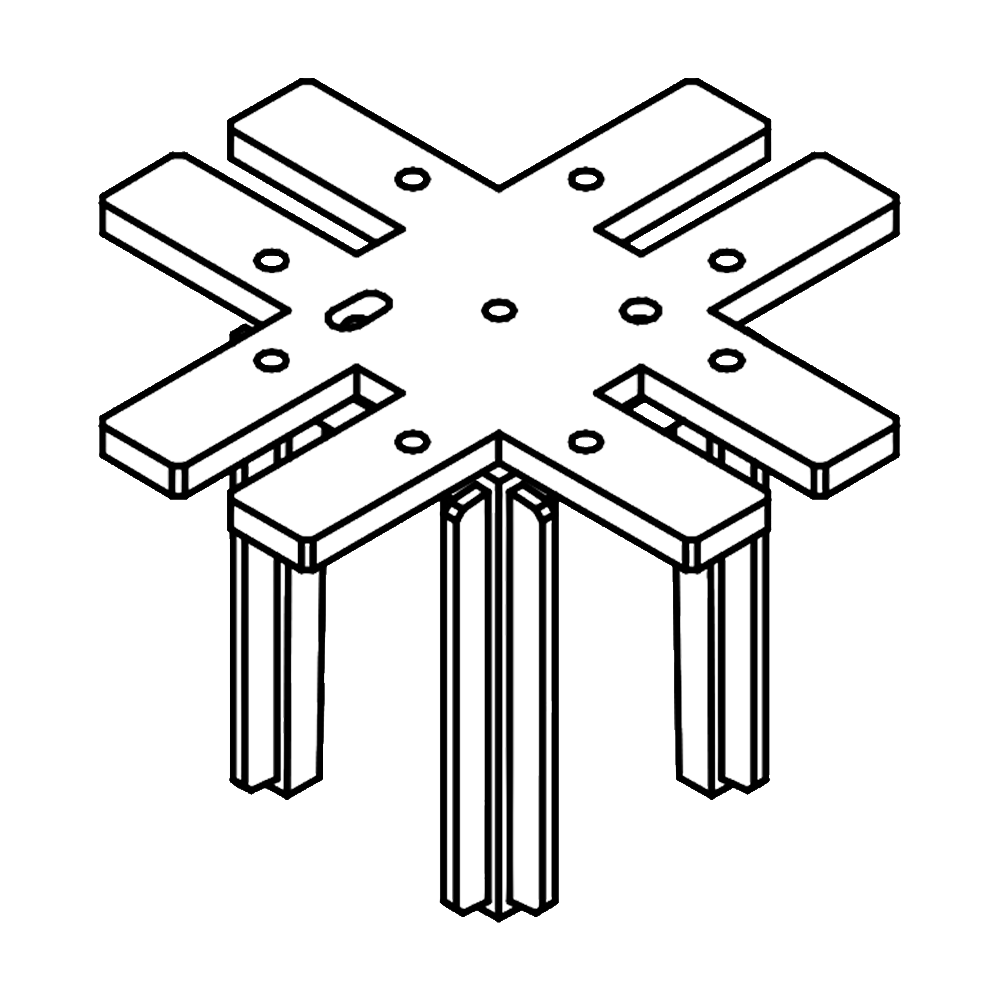

Mechanical X connector.
For small ceiling/suspension mounted profiles.
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7064 | |
Linear mechanical joint, made of 4 mechanical joints and 4 screws.
For ceiling/suspension installation profile.
| Code | Colour | L | |||
|---|---|---|---|---|---|
| 1T9595 | | 1000mm | |||
| 1T9596 | | 2000mm |

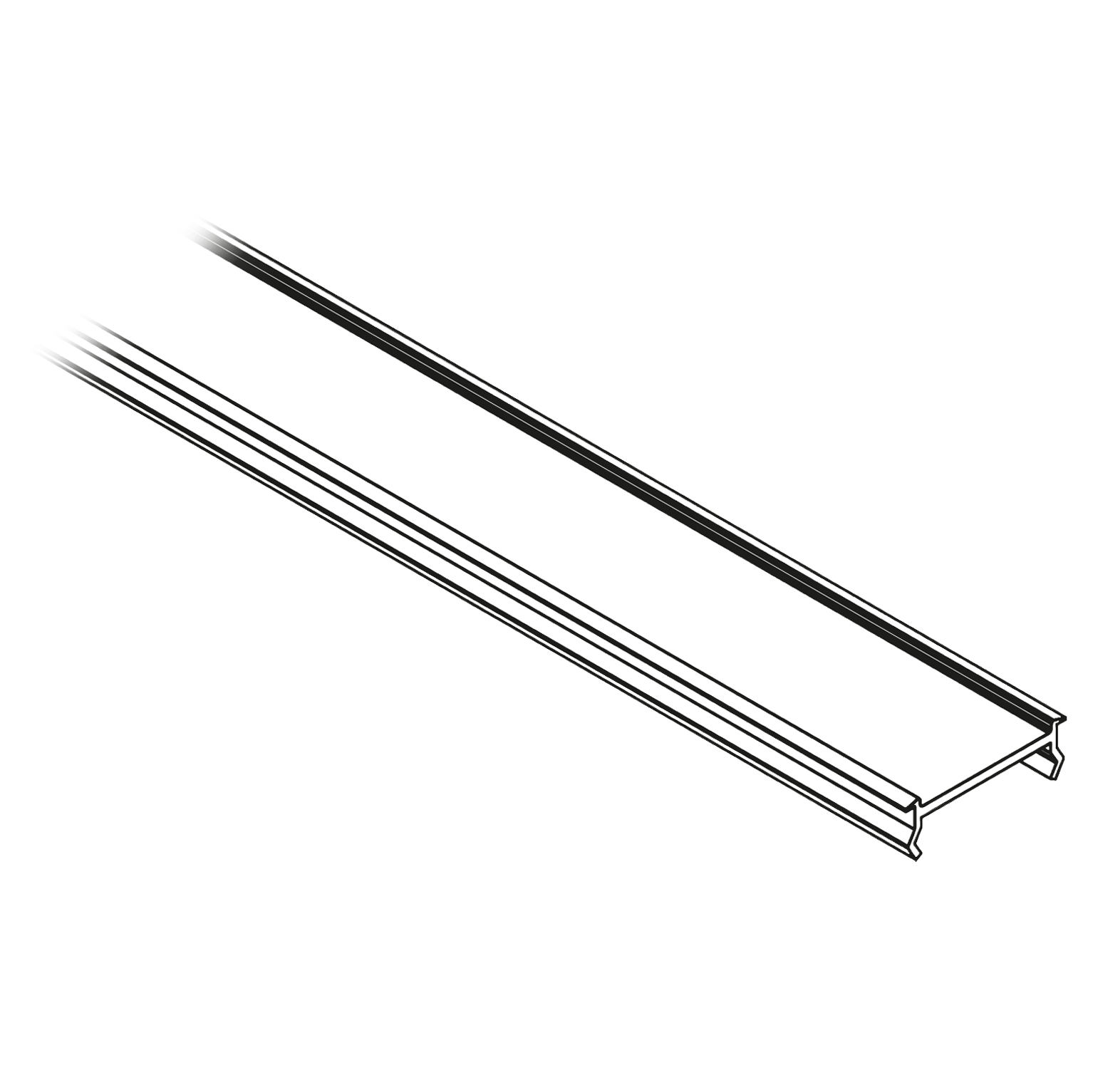

Cover for small profiles for ceiling/suspension installation.
