Lighting Systems

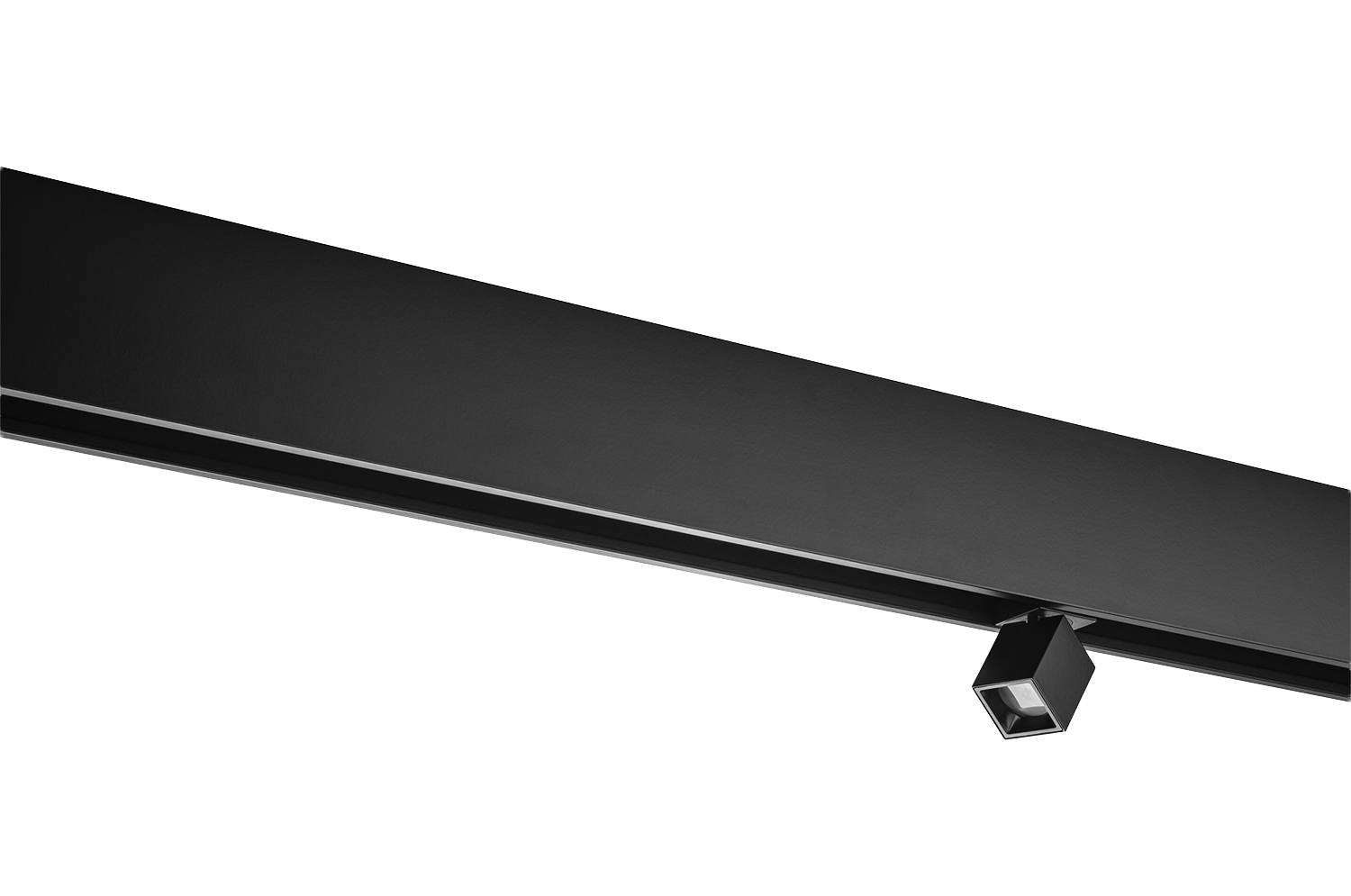

Oz Ceiling/Suspension installation profile
Small
Code
1T7047
Light colour
Light distribution
Output
Power supply
Control
Colour
1 / 2
Technical Data
Mechanical characteristics
Extruded painted aluminium profile. Central/end module.
Colour and finishDeep black
DimensionsL=1000mm
Weight0.865Kg
VersionFOR 25x25mm LIGHT MODULES - CENTRAL/END MODULE
Installation
For stand-alone installation only used head modules. For system installation it is necessary to start the configuration with a head module. For closed configurations it is necessary to order a minimum of two head modules or multiples of two to install back to back.
Notes
To be completed with Power Track.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7063 |  |

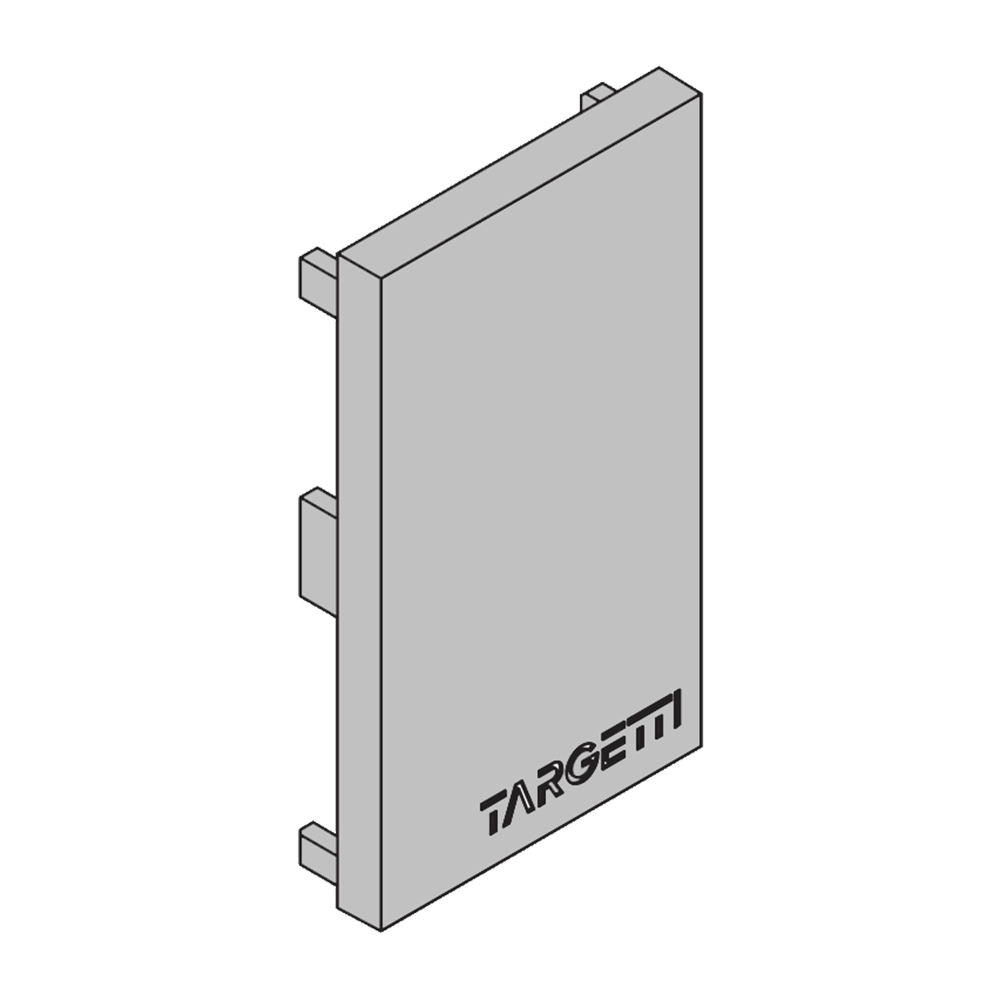

Kit containing 2 profile end caps.
For small ceiling/suspension mounted profiles.
| Code |
|---|
| 1T7065 |
Ceiling installation kit.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
| Code |
|---|
| 1T7066 |
Suspension installation kit.
L=2000mm.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
Accessories
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7059 | |

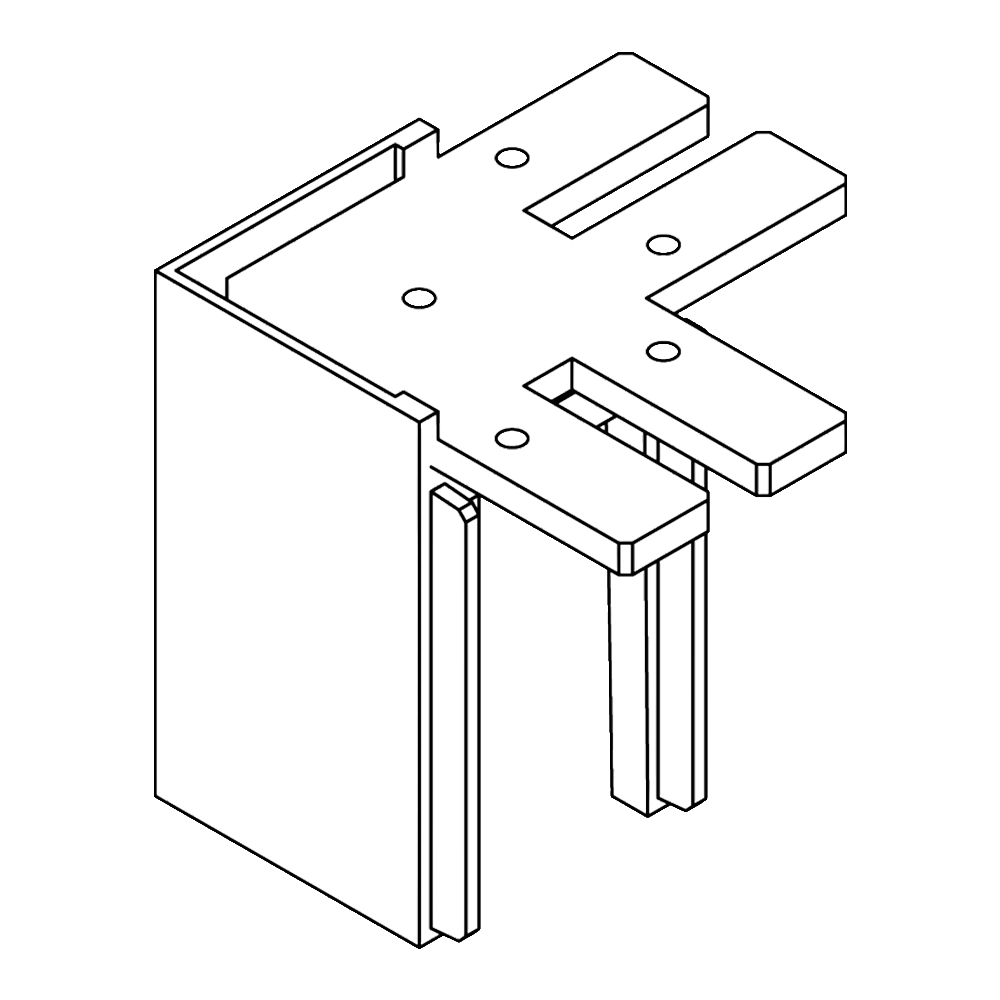

Mechanical L connector.
For small ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7060 | |

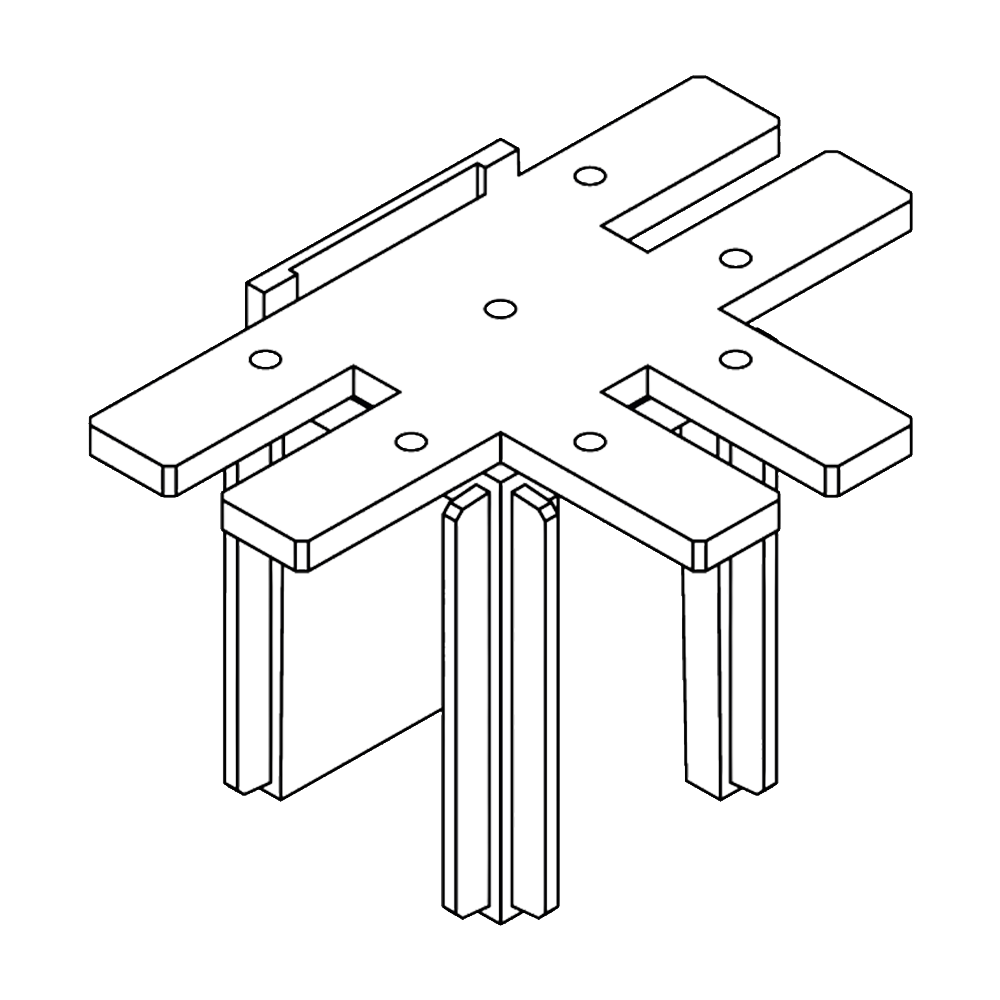

Mechanical T connector.
For small ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7061 | |

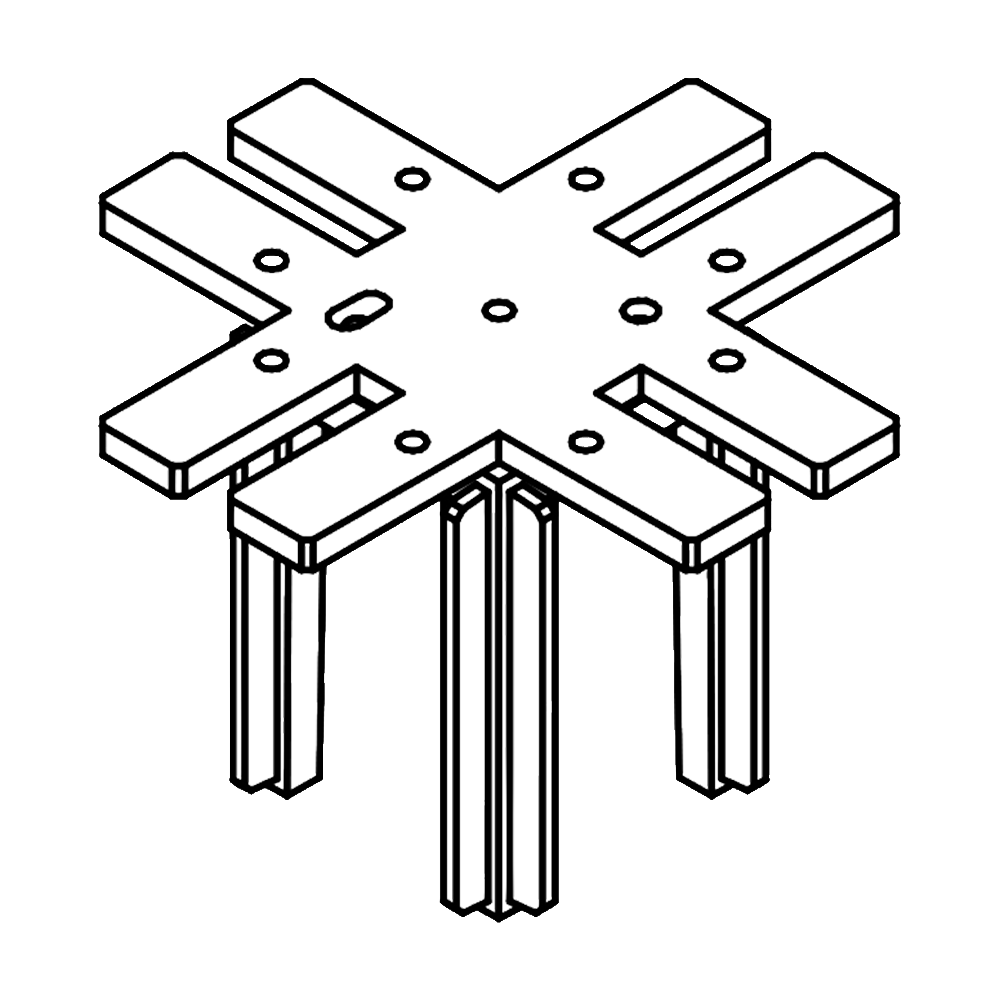

Mechanical X connector.
For small ceiling/suspension mounted profiles.
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7097 | |

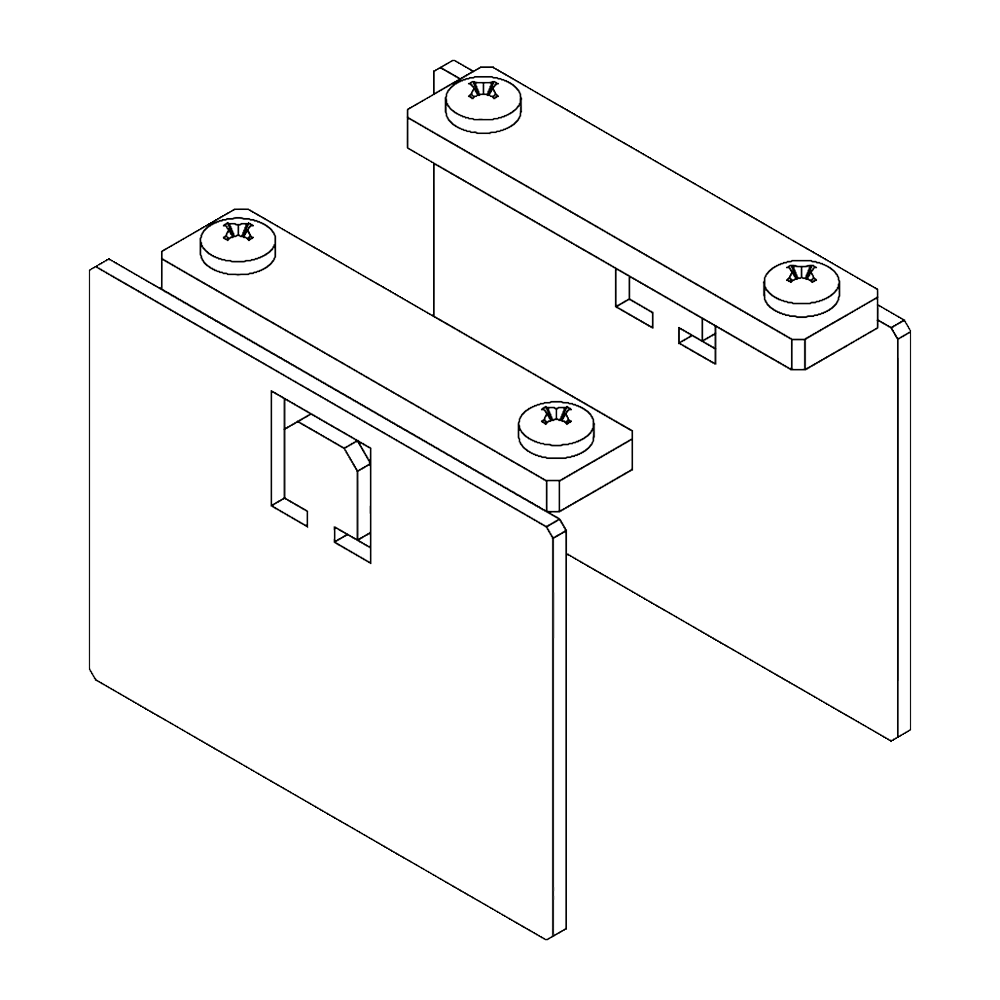

Linear mechanical joint, made of 4 mechanical joints and 4 screws.
For ceiling/suspension installation profile.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T9597 | | 1000 | |||
| 1T9598 | | 2000 |
Cover for small profiles for ceiling/suspension installation.
