Lighting Systems

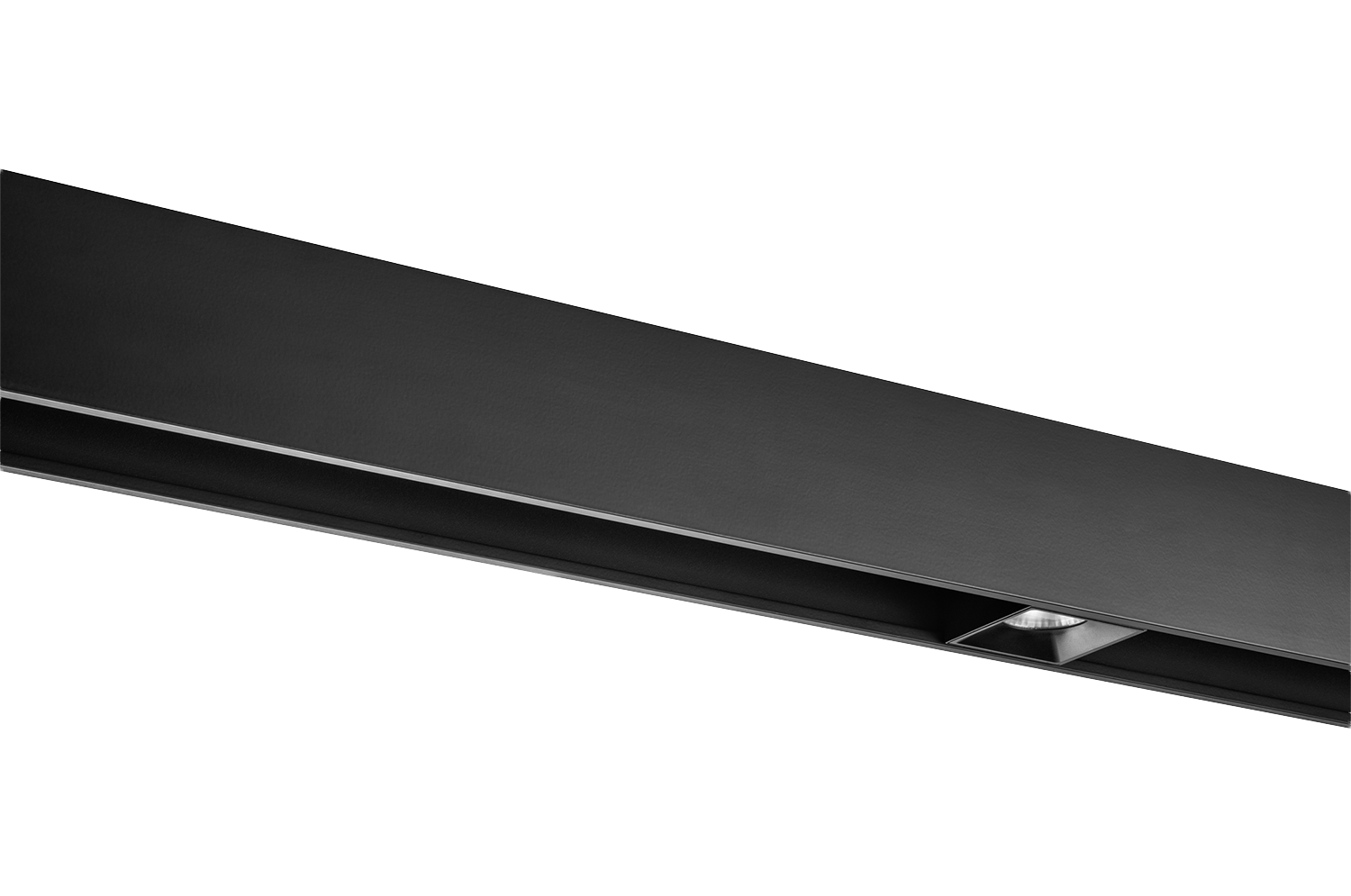

Oz Ceiling/Suspension installation profile
Large
Code
1T7086
Light colour
Light distribution
Output
Power supply
Control
Colour
1 / 2
Technical Data
Mechanical characteristics
Extruded painted aluminium profile. Head module.
Colour and finishDeep black
DimensionsL=1015mm
Weight1.048Kg
VersionFOR 50x50mm LIGHT MODULES - HEAD MODULE
Installation
For stand-alone installation only used head modules. For system installation it is necessary to start the configuration with a head module. For closed configurations it is necessary to order a minimum of two head modules or multiples of two to install back to back.
Notes
To be completed with Power Track.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7096 |  |

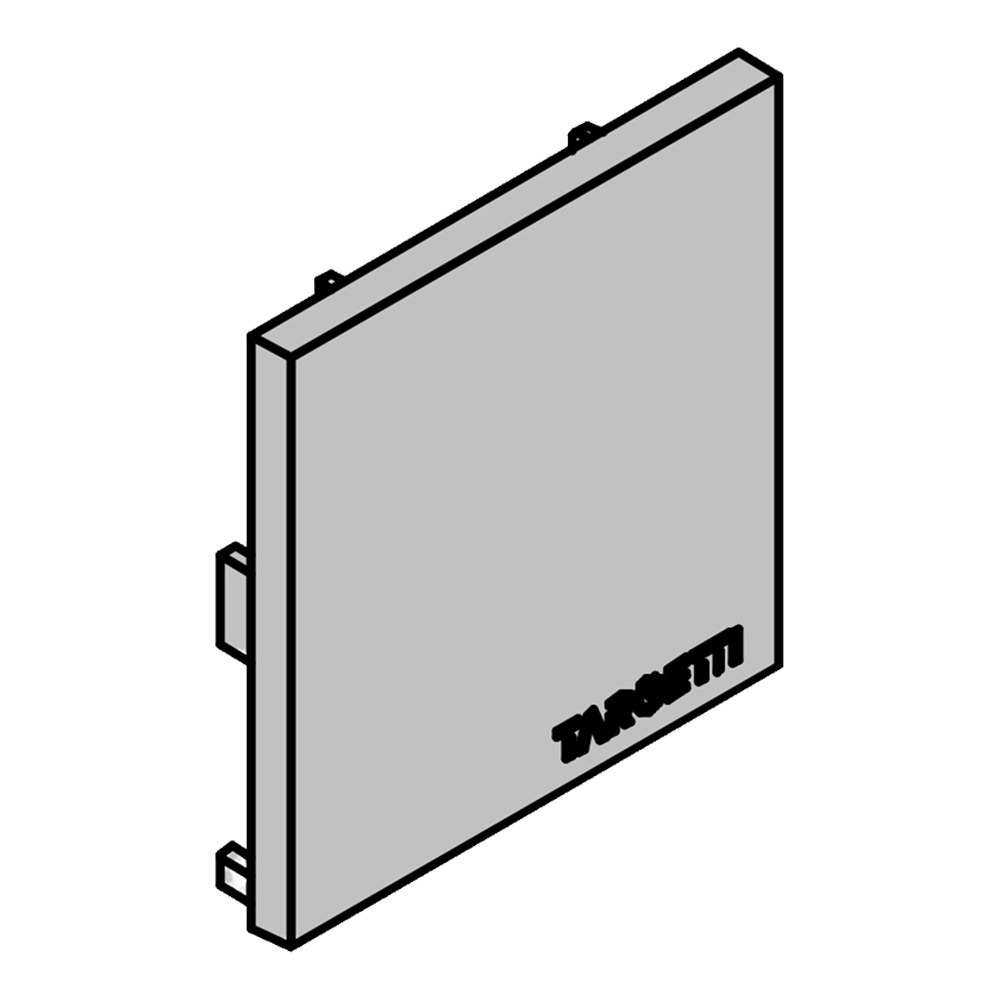

Kit containing 2 profile end caps.
For large ceiling/suspension mounted profiles.
| Code |
|---|
| 1T7065 |
Ceiling installation kit.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
| Code |
|---|
| 1T7066 |
Suspension installation kit.
L=2000mm.
2 pieces to be ordered for 1m long modules, 2 pieces for 2m long modules and 3 pieces for 3m long modules.
Accessories
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7092 | |

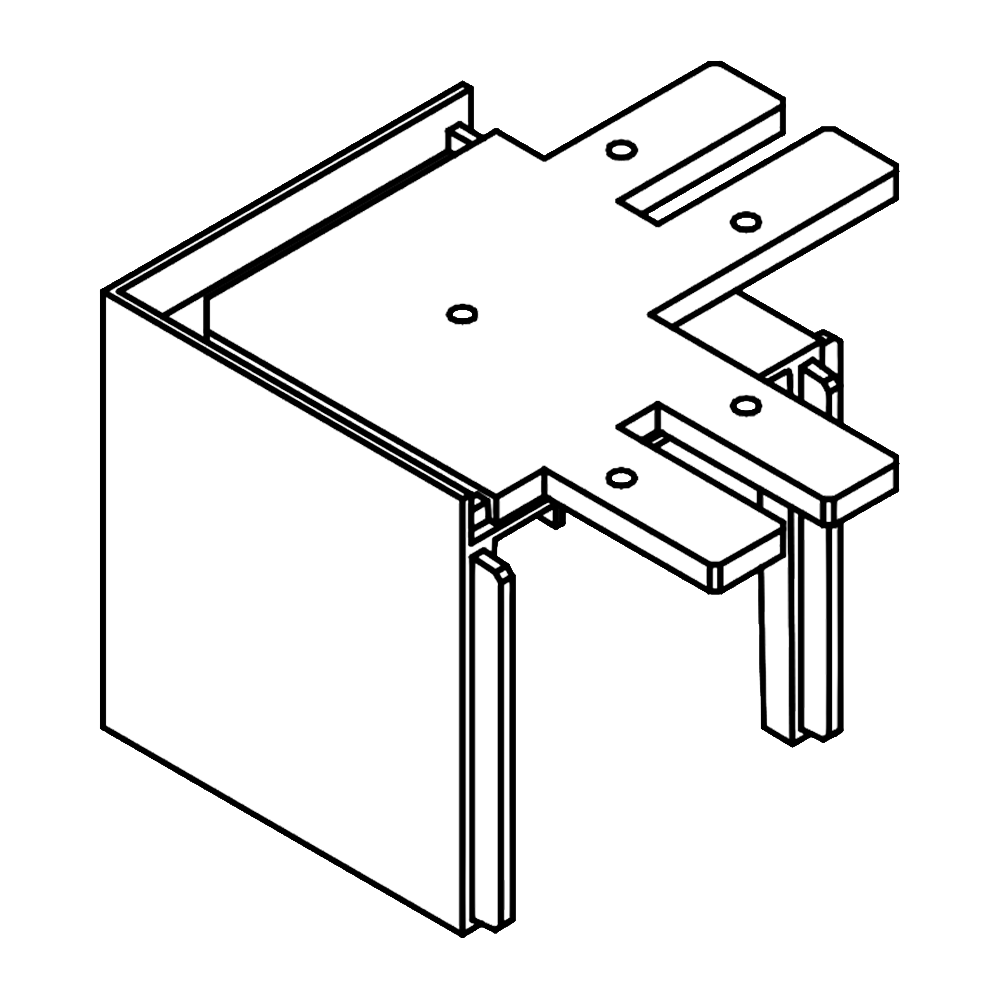

Mechanical L connector.
For large ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7093 | |
Mechanical T connector.
For large ceiling/suspension mounted profiles.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7094 | |

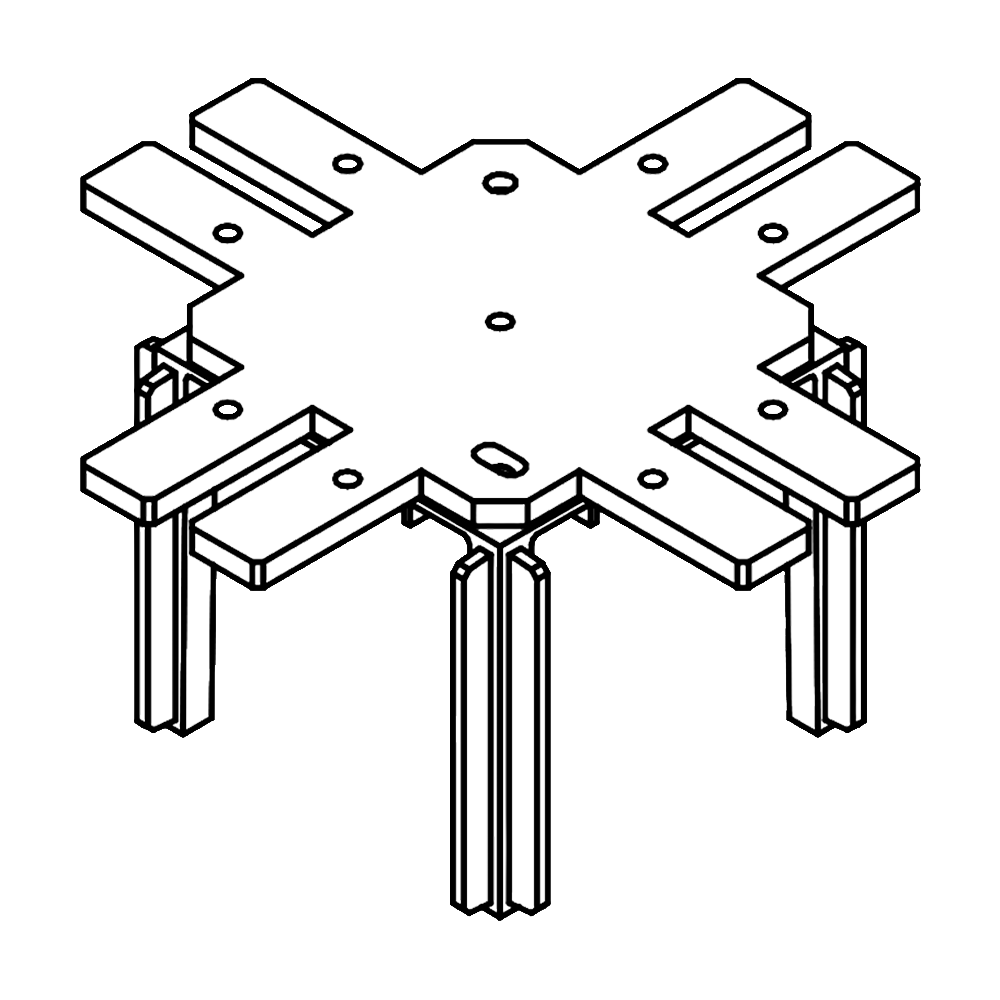

Mechanical X connector.
For large ceiling/suspension mounted profiles.
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7097 | |
Linear mechanical joint, made of 4 mechanical joints and 4 screws.
For ceiling/suspension installation profile.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T9601 | | 1000 | |||
| 1T9602 | | 2000 |
Cover for large profiles for ceiling/suspension installation.
