Lighting Systems
Oz Lighting module - Single fixed - 25x25mm
Code
1T7106DD
Light colour
4000K
90
90
Light distribution
FL
28°
28°
Output
2.8W
159lm
159lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Fixed magnetic LED light module, powered at low voltage.
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power2,1W
Nominal flux212lm
Colour rendering index90
Rf90.9
Rg101.1
CCT nominal4000K
SDCM2
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)72000h tq +25°C

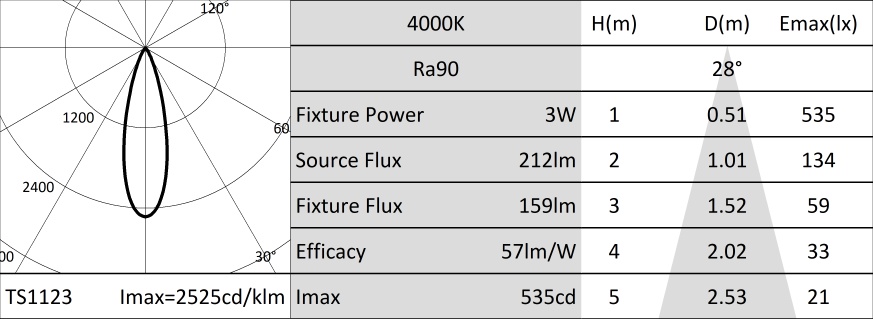

Illuminotechnical characteristics
The flood optical system has an acrylic lens and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticFL
Beam anglesFL
Optical efficiency74.91%
Fixture flux159lm
Luminous efficacy57lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Fixed light, 25x25mm.
Colour and finishPlaster white
DimensionsAxBxH 25x25x50mm
Weight0.042Kg
VersionFixed - Digital Dimming
Degree of protectionIP20
Electrical characteristics
Fixture Power2.8W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
