Lighting Systems
Oz Lighting module - Single
fixed - 25x25mm
Code
1T7108CA
Light colour
3000K
90
90
Light distribution
MWFL
41°
41°
Output
2.8W
142lm
142lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classG
Nominal power2,1W
Nominal flux197lm
Colour rendering index90
Rf89.3
Rg104.3
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

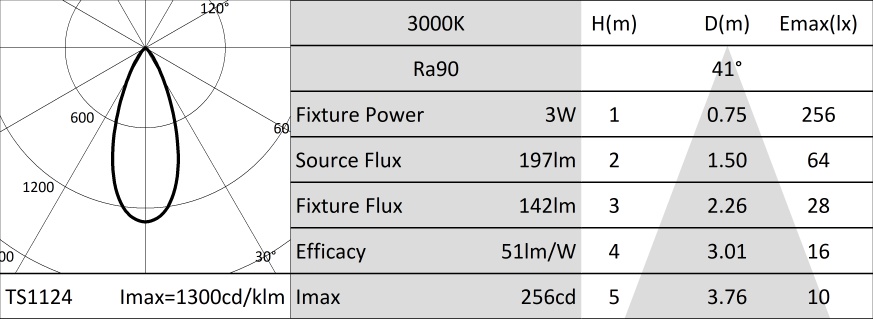

Illuminotechnical characteristics
The medium wide flood optical system has acrylic lenses and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesMWFL
Optical efficiency72%
Fixture flux142lm
Luminous efficacy51lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Fixed light, 25x25mm.
Colour and finishPlaster white
Dimensions25x25mm
Weight0.042Kg
VersionFIXED CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power3W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
