Lighting Systems
Oz Lighting module - Single
fixed - 25x25mm
Code
1T7119DD
Light colour
2700K
90
90
Light distribution
MWFL
41°
41°
Output
2.8W
135lm
135lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classG
Nominal power2,1W
Nominal flux187lm
Colour rendering index90
Rf87.6
Rg103.9
CCT nominal2700K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

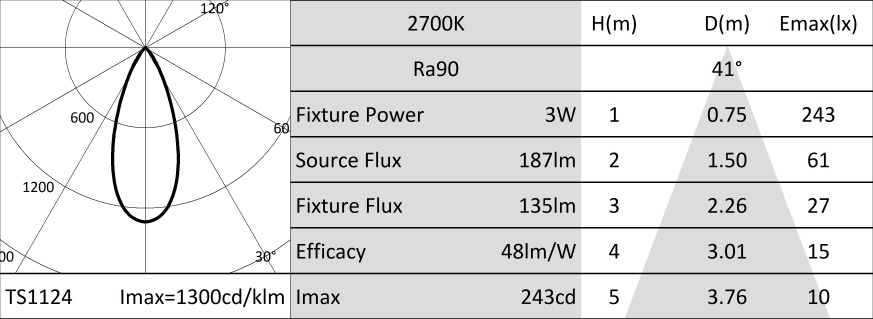

Illuminotechnical characteristics
The medium wide flood optical system has acrylic lenses and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesMWFL
Optical efficiency72%
Fixture flux135lm
Luminous efficacy48lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Fixed light, 25x25mm.
Colour and finishDeep black
Dimensions25x25mm
Weight0.042Kg
VersionFIXED DIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power3W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
