Lighting Systems
Oz Lighting module - Single
fixed - 50x50mm
Code
1T7152DD
Light colour
3000K
90
90
Light distribution
FL
27°
27°
Output
7.1W
734lm
734lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classD
Nominal power6,5W
Nominal flux981lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

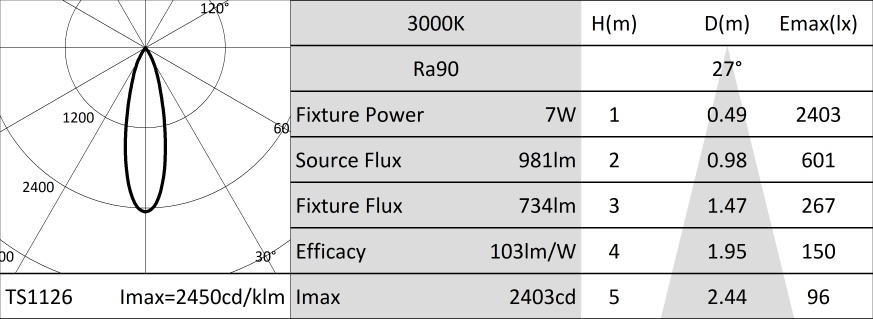

Illuminotechnical characteristics
The flood optical system consists of a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesFL
Optical efficiency75%
Fixture flux734lm
Luminous efficacy103lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Fixed light, 50x50mm.
Colour and finishPlaster white
Dimensions50x50mm
Weight0.093Kg
VersionFIXED DIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power7W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
