Lighting Systems
Oz Lighting module - Single
fixed - 50x50mm
Code
1T7165DD
Light colour
3500K
90
90

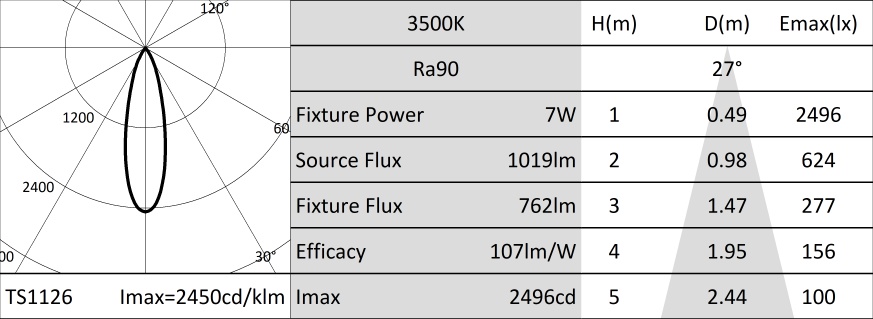

Light distribution
FL
27°
27°
Output
7.1W
762lm
762lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power6,5W
Nominal flux1019lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
The flood optical system consists of a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesFL
Optical efficiency75%
Fixture flux762lm
Luminous efficacy107lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Fixed light, 50x50mm.
Colour and finishDeep black
Dimensions50x50mm
Weight0.093Kg
VersionFIXED DIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power7W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
