Wall mounted luminaires
Omega
Suspension - L. 2112mm
Code
1T7268EL
Light colour
3000K
90
90
Light distribution
Opal
Output
40W
2998lm
2998lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Stand alone linear LED fixture for suspension installation
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power36W
Nominal flux4314lm
Colour rendering index90
Rf91.4
Rg100.8
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

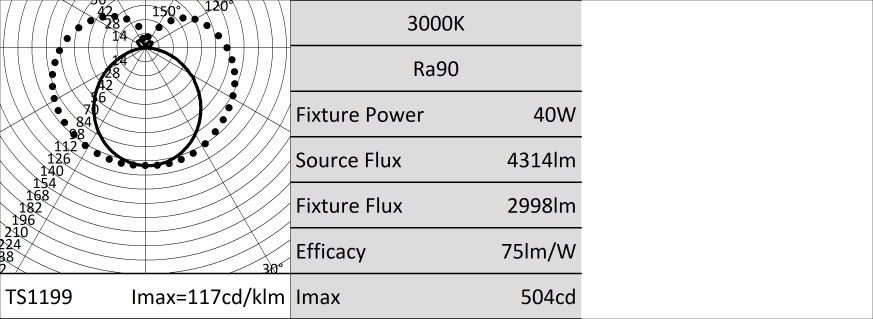

Illuminotechnical characteristics
Optical unit composed of an opal polycarbonate diffuser. Available in a direct emission version.
EmissionOPAL
Optical efficiency70%
Fixture flux2998lm
Luminous efficacy75lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium body and painted aluminium optical unit and terminal. Opal polycarbonate screen.
Colour and finishFerrite
DimensionsL=2112mm
Weight2.87Kg
VersionSUSPENSION
Degree of protectionIP20
Electrical characteristics
Integrated electronic power supply. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power40W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Version for suspension installation L=2112mm. Power supply kit and suspension kit L=4000mm supplied with the product.
Notes
Designed in collaboration with Gensler. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
