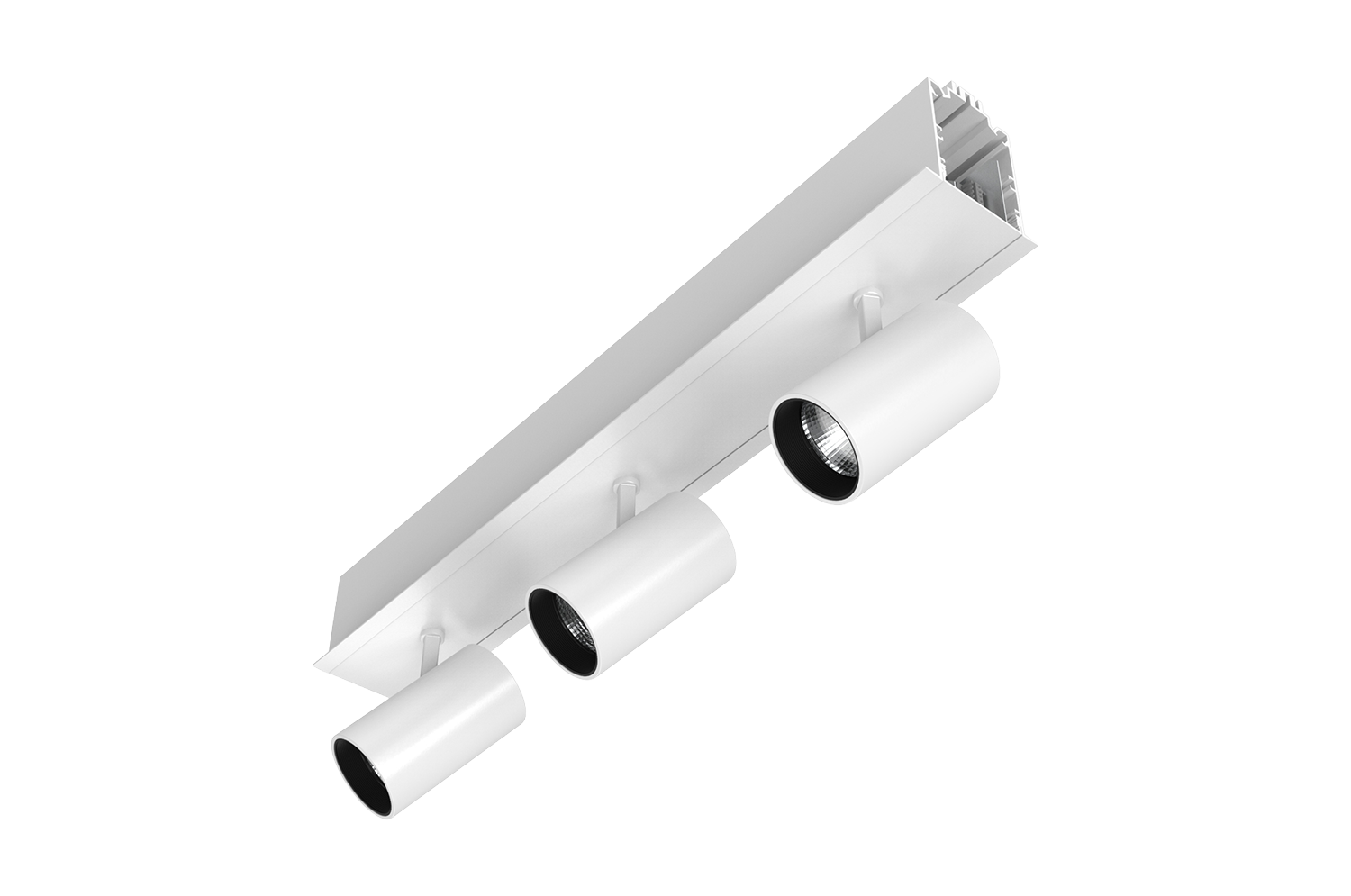

Logico System - Recessed with flange - Projector module
Label 6 - 3x

Convex faceted highly reflective anodised aluminium precision optics with an opaque black silicone cut off ring.

Painted extruded aluminium linear body. Projectors with a die-cast painted aluminium body. The optical unit can be adjusted from 0° a 90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam with a mechanical locking system on the horizontal plane and a friction locking system on the vertical plane.

Integrated electronic ON-OFF power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW).

For linear configurations complete with a special connector to attach to the power supply. To be completed with end caps.

The arm is always supplied in the same colour as the body of the projector. 110-277Vac version available on request.

Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
