Wall mounted luminaires
Omega
Applique - L. 472mm
Code
1T7280EL
Light colour
4000K
90
90
Light distribution
Opal
Output
9W
745lm
745lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Stand alone linear LED fixture for wall installation
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power8W
Nominal flux1072lm
Colour rendering index90
Rf89.8
Rg98.7
CCT nominal4000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

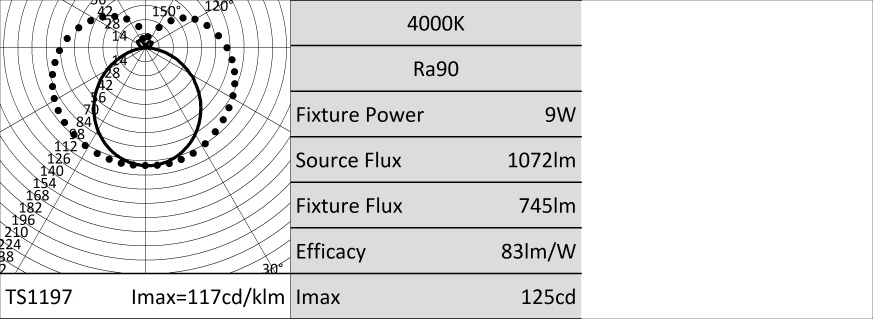

Illuminotechnical characteristics
Optical unit composed of an opal polycarbonate diffuser. Available in a direct emission version.
EmissionOPAL
Optical efficiency70%
Fixture flux745lm
Luminous efficacy83lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium body and painted aluminium optical unit and terminal. Opal polycarbonate screen.
Colour and finishFerrite
DimensionsL=472mm
Weight0.8Kg
VersionWALL
Degree of protectionIP20
Electrical characteristics
Integrated electronic power supply. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power9W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Versions for wall installation L=472mm with installation kit supplied with the product.
Notes
Designed in collaboration with Gensler. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
