Lighting Systems
Logico System - Ceiling/Suspension - Projector module Label 6 - 1x
Code
1T7313EL
Light colour
3000K
90
90
Light distribution
MWFL
48°
48°
Output
15.2W
1392lm
1392lm
Power supply
Control
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Linear module with adjustable professional LED projectors for ceiling or suspension installation system.
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classD
Nominal power1x14W
Nominal flux1817lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)72000h tq +25°C
Lifetime (L90/B10)72000h tq +25°C

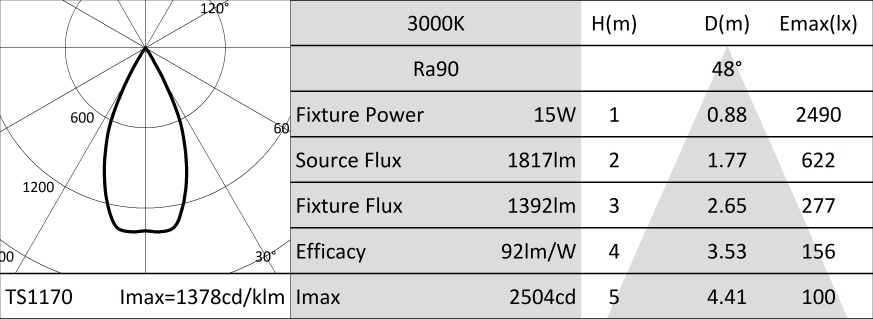

Illuminotechnical characteristics
Convex faceted highly reflective anodised aluminium precision optics with an opaque black silicone cut off ring.
OpticMWFL
Beam anglesMWFL
Optical efficiency76.6%
Fixture flux1392lm
Luminous efficacy92lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium linear body. Projectors with a die-cast painted aluminium body. The optical unit can be adjusted from 0° a 90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam with a mechanical locking system on the horizontal plane and a friction locking system on the vertical plane.
Colour and finishDeep black
DimensionsAxBxH 281x60x100mm
Weight1.6Kg
Version1xLabel 6
Degree of protectionIP20
Electrical characteristics
Integrated electronic ON-OFF power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW for the ceiling version; max 0.6kW for the suspension version).
Fixture Power15.2W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. For other configurations accessorise with special X, T and L connectors. To be completed with mounting systems and end caps.
Notes
The arm is always supplied in the same colour as the body of the projector. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
