Lighting Systems
Logico System - Ceiling/Suspension - Projector module
Label 6 - 3x
Code
1T7324EL
Light colour
3000K
90
90
Light distribution
FL
31°
31°
Output
15.2W
1405lm
1405lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Linear module with adjustable professional LED projectors for ceiling or suspension installation system
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classD
Nominal power3x14W
Nominal flux3x1817lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

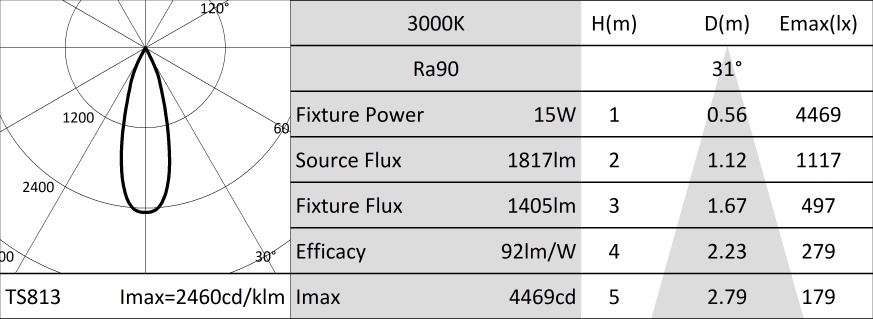

Illuminotechnical characteristics
Convex faceted highly reflective anodised aluminium precision optics with an opaque black silicone cut off ring.
Beam anglesFL
Optical efficiency77%
Fixture flux3x1405lm
Luminous efficacy92lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium linear body. Projectors with a die-cast painted aluminium body. The optical unit can be adjusted from 0° a 90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam with a mechanical locking system on the horizontal plane and a friction locking system on the vertical plane.
Colour and finishPlaster white
DimensionsL=562mm
Weight4.3Kg
Version3xLABEL 6
Degree of protectionIP20
Electrical characteristics
Integrated electronic ON-OFF power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW for the ceiling version; max 0.6kW for the suspension version).
Fixture Power3x15W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. For other configurations accessorise with special X, T and L connectors. To be completed with mounting systems and end caps.
Notes
The arm is always supplied in the same colour as the body of the projector. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5937 |  |
End caps for Ceiling Mounted and Suspension.
2x
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5912 | |
Ceiling installation: polycarbonate bracket.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T5899 | | 2000 | |||
| 1T5902 | | 4000 |
Suspension cable.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
Suspension cable compatible with ceiling or wall installations, even inclined.
| Code | Colour | Driver | L mm | ||
|---|---|---|---|---|---|
| 1T5905EL | | ON-OFF | 4000 |
Suspension installation kit: power cable complete with a painted polycarbonate rosette.
Max 0.6kW.
Accessories
| Code |
|---|
| 1T5911 |
Linear electrical connector.
EL/DALI.
