Lighting Systems
Logico System - Ceiling/Suspension - Projector module
Label 6 - 3x
Code
1T7328EL
Light colour
4000K
90
90
Light distribution
MWFL
48°
48°
Output
15.2W
1504lm
1504lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power3x14W
Nominal flux3x1964lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Convex faceted highly reflective anodised aluminium precision optics with an opaque black silicone cut off ring.

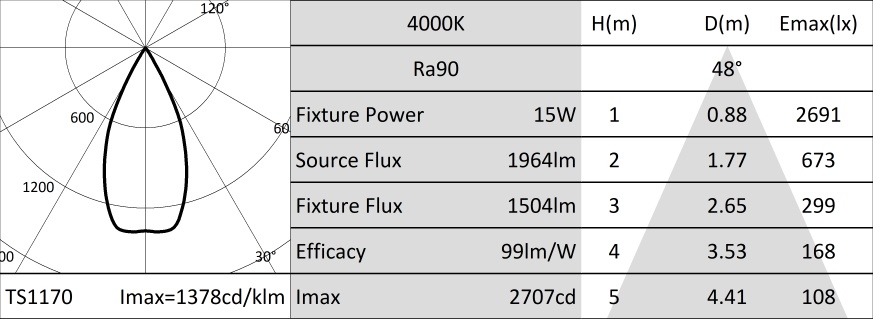

Beam anglesMWFL
Optical efficiency77%
Fixture flux3x1504lm
Luminous efficacy99lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium linear body. Projectors with a die-cast painted aluminium body. The optical unit can be adjusted from 0° a 90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam with a mechanical locking system on the horizontal plane and a friction locking system on the vertical plane.
Colour and finishPlaster white
DimensionsL=562mm
Weight4.3Kg

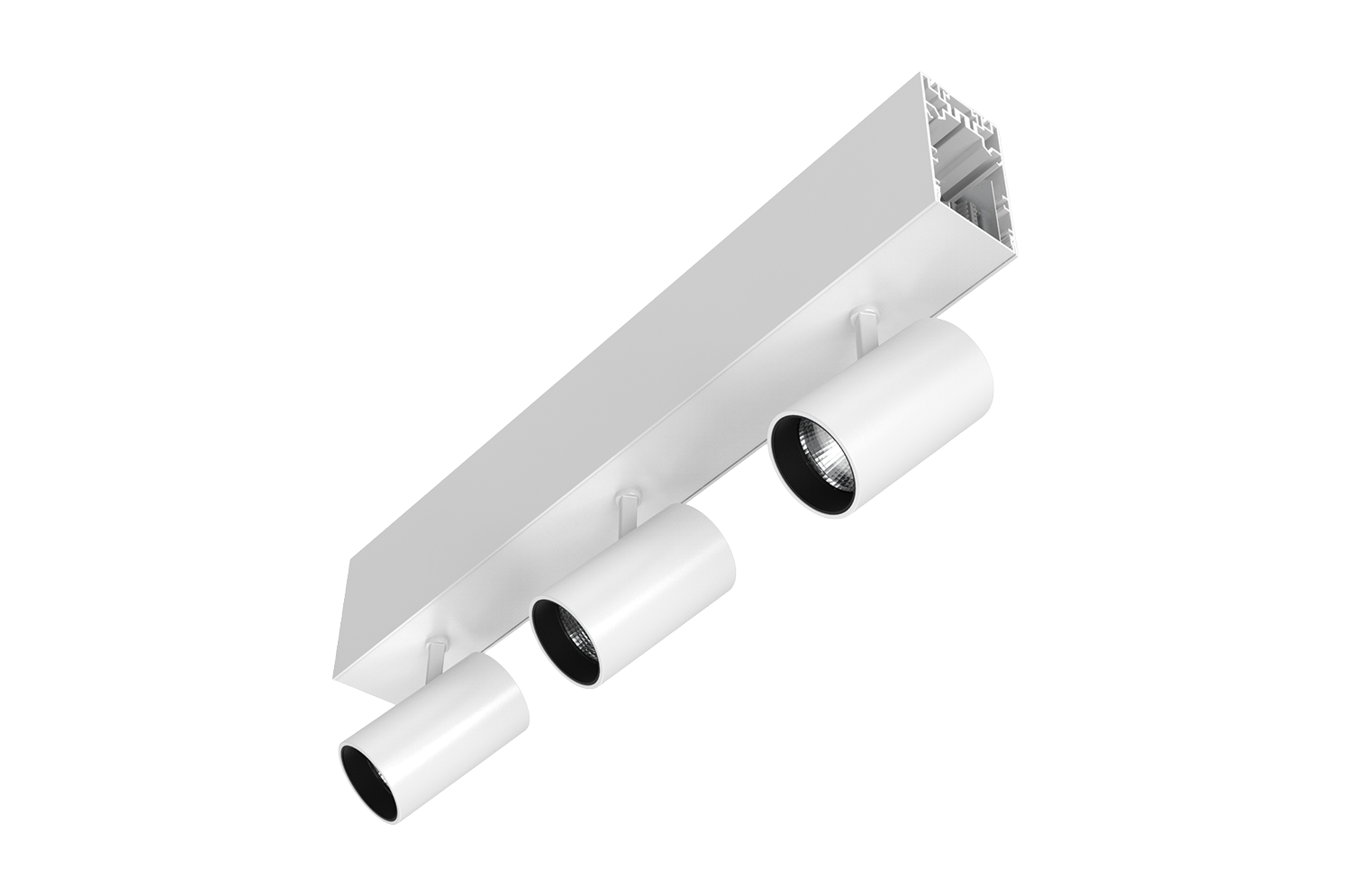

Version3xLABEL 6
Degree of protectionIP20
Electrical characteristics
Integrated electronic ON-OFF power supply. Complete with electrical cables to guarantee feeding continuity (max 2kW for the ceiling version; max 0.6kW for the suspension version).
Fixture Power3x15W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
For linear configurations complete with a special connector to attach to the power supply. For other configurations accessorise with special X, T and L connectors. To be completed with mounting systems and end caps.
Notes
The arm is always supplied in the same colour as the body of the projector. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5937 |  |
End caps for Ceiling Mounted and Suspension.
2x
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5912 | |
Ceiling installation: polycarbonate bracket.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T5899 | | 2000 | |||
| 1T5902 | | 4000 |
Suspension cable.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
Suspension cable compatible with ceiling or wall installations, even inclined.
| Code | Colour | Driver | L mm | ||
|---|---|---|---|---|---|
| 1T5905EL | | ON-OFF | 4000 |
Suspension installation kit: power cable complete with a painted polycarbonate rosette.
Max 0.6kW.
Accessories
| Code |
|---|
| 1T5911 |
Linear electrical connector.
EL/DALI.
