Wall mounted luminaires
Omega
Applique - L. 792mm
Code
1T7343EL
Light colour
2700K
90
90
Light distribution
Opal
Output
17.7W
1457lm
1457lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classF
Nominal power16W
Nominal flux2097lm
Colour rendering index90
Rf90.9
Rg100.1
CCT nominal2700K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

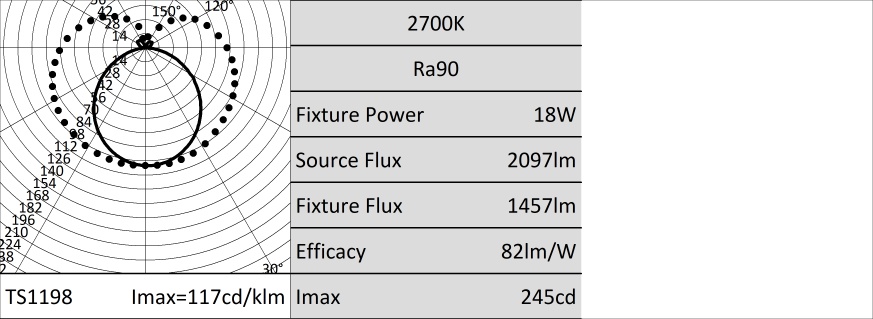

Illuminotechnical characteristics
Optical unit composed of an opal polycarbonate diffuser. Available in a direct emission version.
EmissionOPAL
Optical efficiency70%
Fixture flux1457lm
Luminous efficacy82lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium body and painted aluminium optical unit and terminal. Opal polycarbonate screen.
Colour and finishFerrite
DimensionsL=792mm
Weight1.3Kg
VersionWALL
Degree of protectionIP20
Electrical characteristics
Integrated electronic power supply. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power18W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Versions for wall installation L=792mm with installation kit supplied with the product.
Notes
Designed in collaboration with Gensler. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
