Lighting Systems

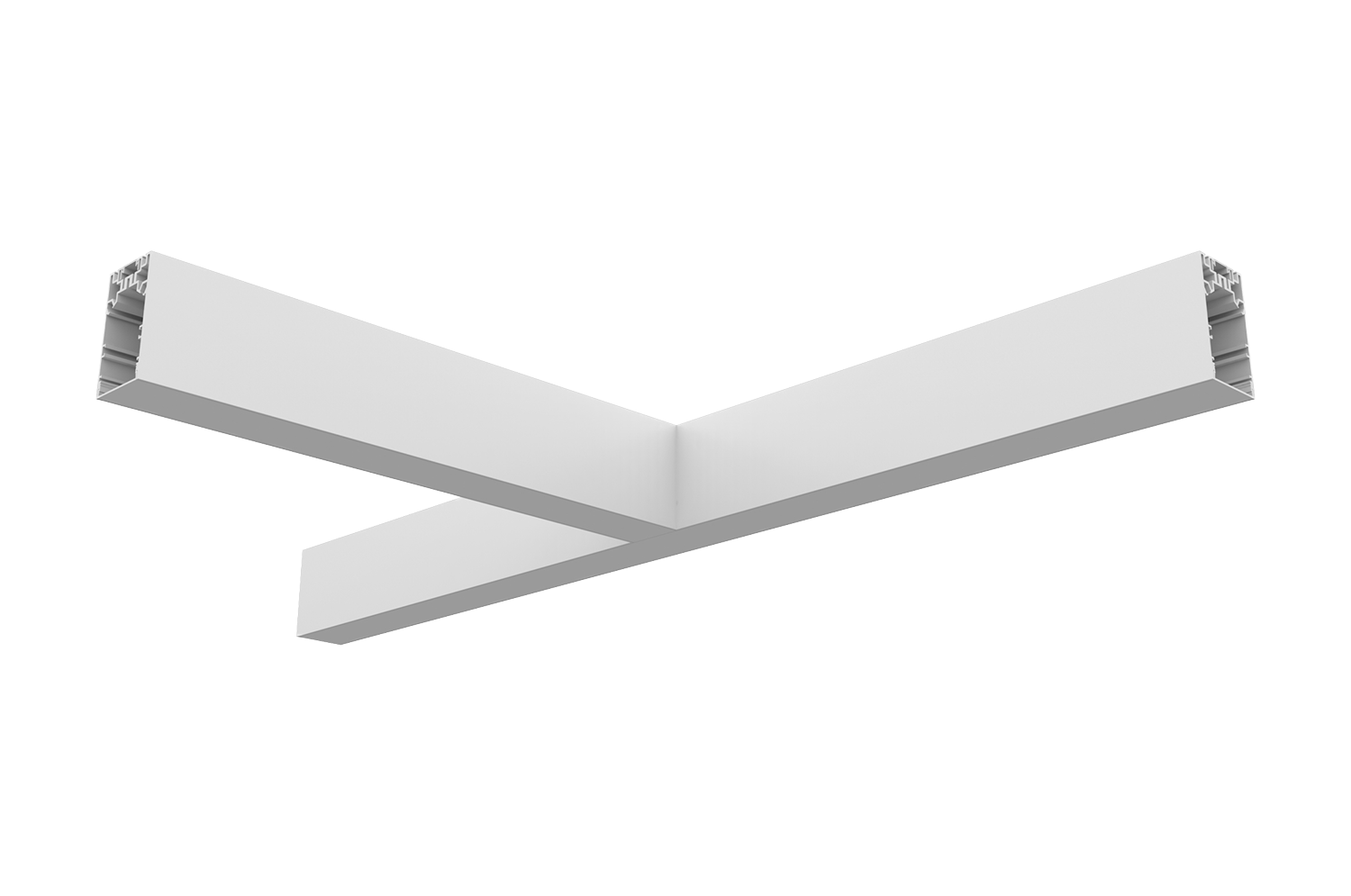

Logico System - Ceiling/Suspension - Blind module
T connector
Code
1T7393
Light colour
Light distribution
Output
Power supply
Control
220-240Vac
Colour
1 / 2
Technical Data
Mechanical characteristics
Painted extruded aluminium linear body.
Colour and finishDeep black
DimensionsAxBXH=1139x599x100mm
Weight3.6Kg
VersionT CONNECTOR
Degree of protectionIP20
Electrical characteristics
Complete with electrical cables to guarantee feeding continuity (max 2kW for the ceiling version; max 0.6kW for the suspension version).
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Class FYES
Installation
For linear configurations complete with a special connector to attach to the power supply. For other configurations accessorise with special X, T and L connectors. To be completed with mounting systems and end caps.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Related codes
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5938 |  |
End caps for Ceiling Mounted and Suspension.
2x
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T5913 | |
Ceiling installation: polycarbonate bracket.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6920 | |
Wall installation: painted metal bracket.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T5900 | | 2000 | |||
| 1T5903 | | 4000 |
Suspension cable.
To be ordered in the following quantities for every fixture length:1 for 281mm version, 2 for the 562 / 1122 / 1682mm version, 3 for the 3364mm version, 3 for the L/T version and 4 for the X version.
Suspension cable compatible with ceiling or wall installations, even inclined.
Accessories
| Code |
|---|
| 1T5911 |
Linear electrical connector.
EL/DALI.
