Lighting Systems
Oz Lighting module - Single adjustable - 50x50mm
Code
1T7413CA
Light colour
3500K
90
90
Light distribution
FL
27°
27°
Output
7.1W
762lm
762lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Adjustable magnetic LED light module, powered at low voltage.
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power6,5W
Nominal flux1019lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)72000h tq +25°C
Lifetime (L90/B10)72000h tq +25°C

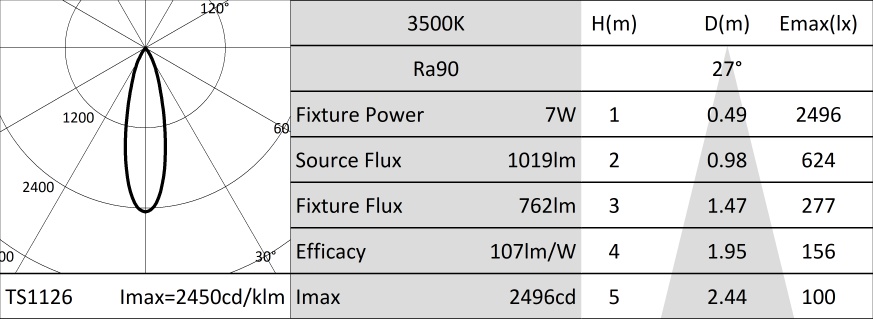

Illuminotechnical characteristics
The flood optical system consists of a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticFL
Beam anglesFL
Optical efficiency74.8%
Fixture flux762lm
Luminous efficacy107lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Adjustable fixture, 50x50mm. Tiltability of the optical unit from 0° to +90° on the vertical plane and of 358° on the horizontal plane.
Colour and finishPlaster white
DimensionsAxBxH 50x50x104mm
Weight0.2Kg
VersionAdjustable - CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power7.1W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
