Lighting Systems
Oz Power Track
Code
1T7434
Light colour
Light distribution
Output
Power supply
Control
48Vdc
Colour
1 / 2
Technical Data
Mechanical characteristics

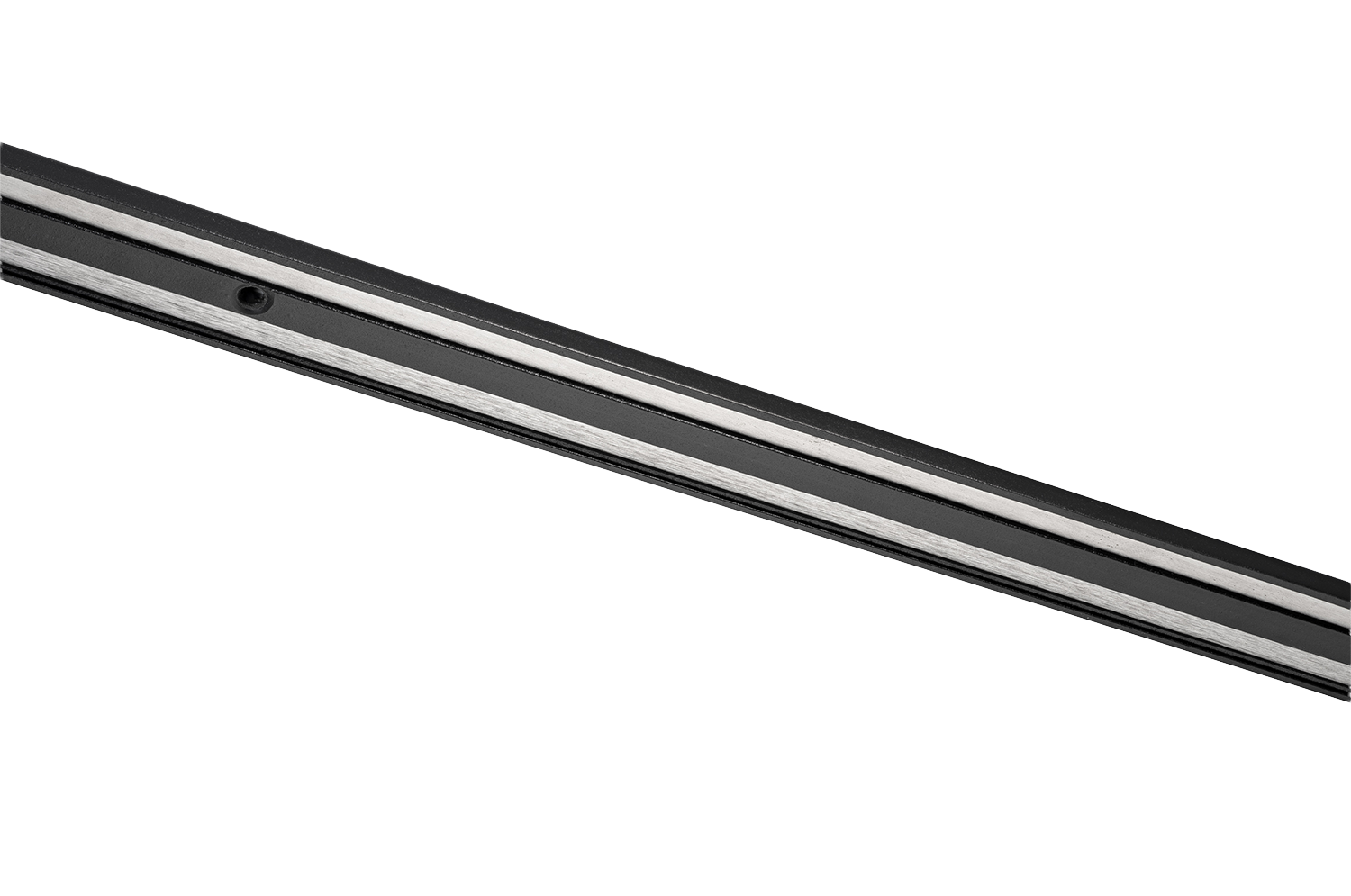

Black polycarbonate Power Track with 2 stainless steel tracks that feed electricity to the fixture and provide magnetic field support. Different configurations are possible with more Power Tracks using special connections that make it possible to build a simple system that is also versatile and safe for all project needs.
Colour and finishDeep black
DimensionsL=1000mm
Weight0.347Kg
VersionPOWER TRACK
Degree of protectionIP20
Electrical characteristics
Power feed possible using a remote power supply with an electrification device on the magnetic Power Track or using an integrated power supply in a special magnetic box applied directly to the Power Track.
Power supply48Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Installation
Length 1m, to be installed in the following ways: - wall/ceiling mounted Power Track can be installed using screws; - the suspension, ceiling, recessed and trimless Power Track to be inserted into a special profile to be ordered separately.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Related codes
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7027 |  |

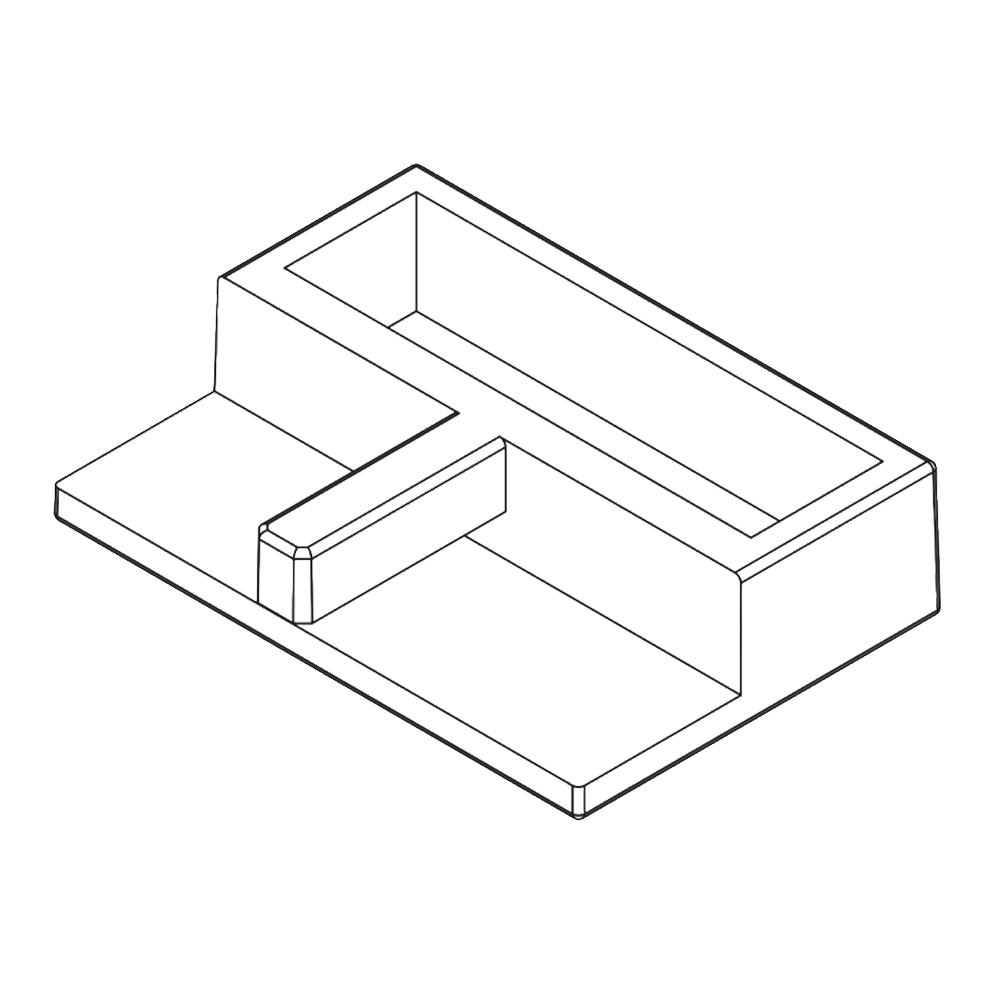

Kit containing 2 profile end caps.
1 / 2
| Code | Colour | Dimensions LxHxP mm | |||
|---|---|---|---|---|---|
| 1T7025 | | 71x27x25 |

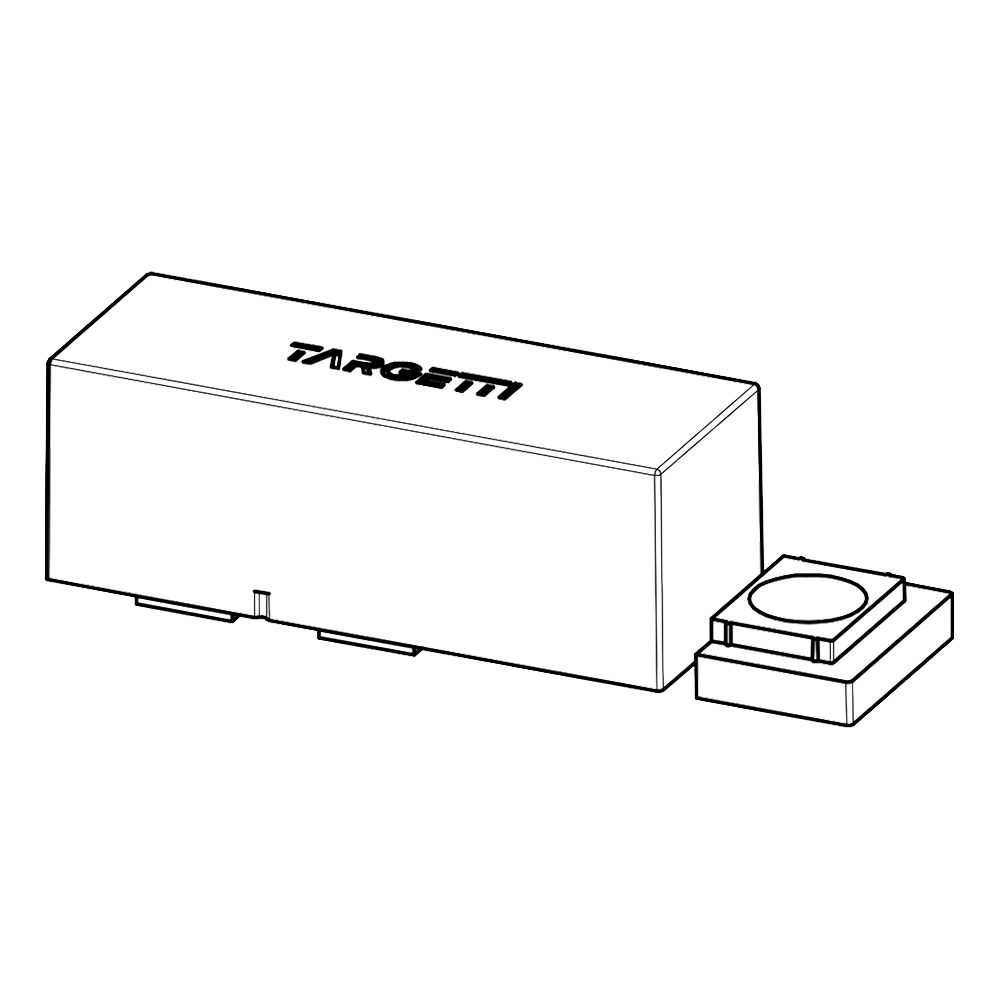

Power head.
1 / 2
| Code | Colour | Version | Dimensions LxHxP mm | ||
|---|---|---|---|---|---|
| 1T9604DD | | REMOTE DIMM | 71x27x26 | ||
| 1T9605DD | | DIMM ON BOARD | 71x27x26 |
Digital dimming power head.
1 / 2
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| 1T7029EL | | ON-OFF |

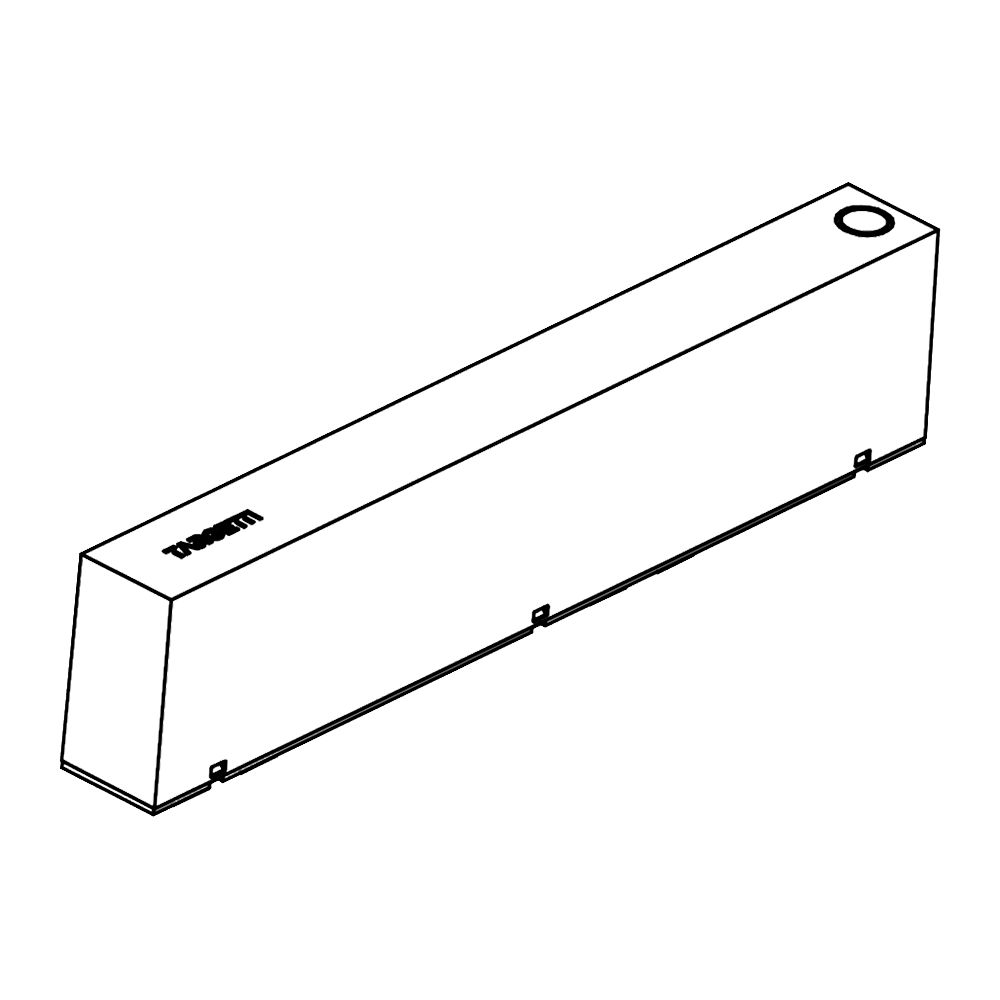

48Vdc driver box with magnetic coupling.
LxHxP=240x54x26mm, 90W.
1 / 2
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| 1T7172EL | | ON-OFF |

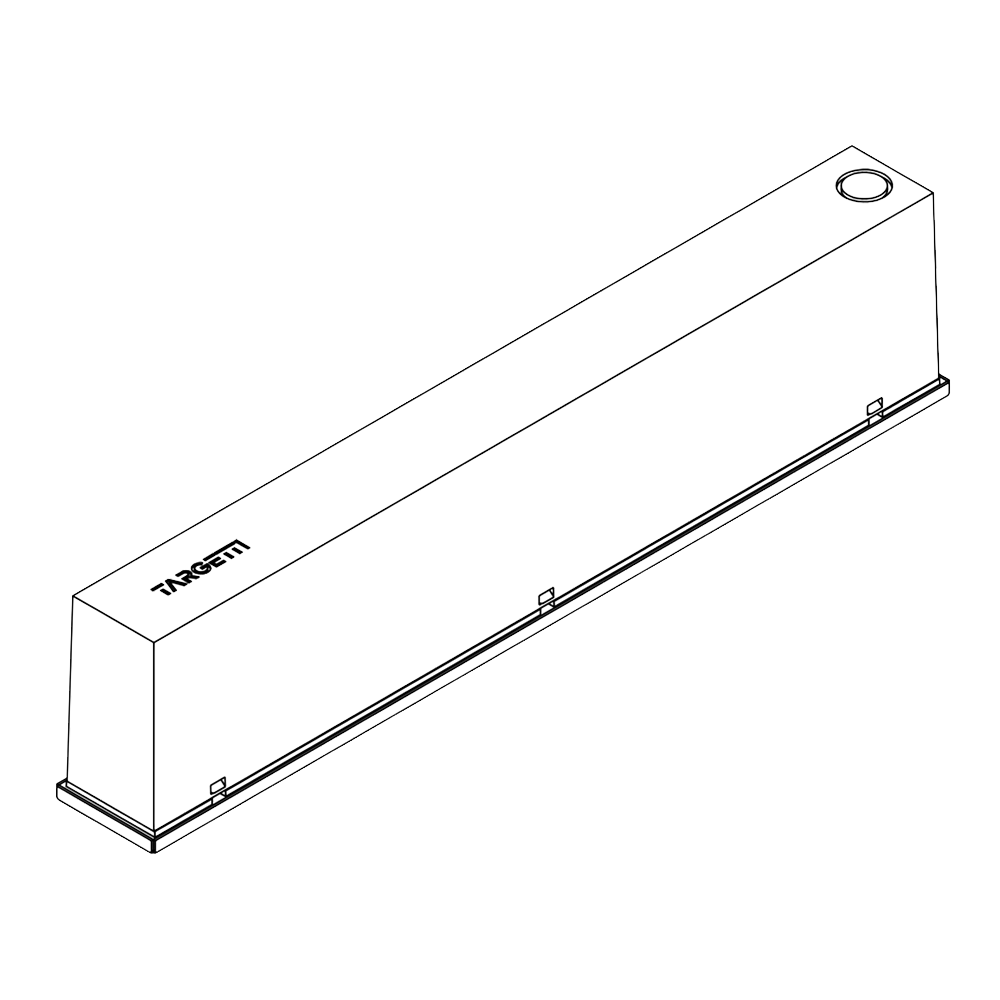

48Vdc driver box for ceiling installation.
Complete with 2.5m of cable.
LxHxP=243x58x30mm, 90W.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T6917EL | IP20 | 48Vdc | 220-240Vac | 60W | 225x36x60 |
| 1T6916EL | IP20 | 48Vdc | 220-240Vac | 130W | 240x49x60 |
| 1T7403EL | IP67 | 48Vdc | 110-277Vac | 210W | 251x37x90 |
Electronic ON-OFF power supply.
Accessories
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7020 | |

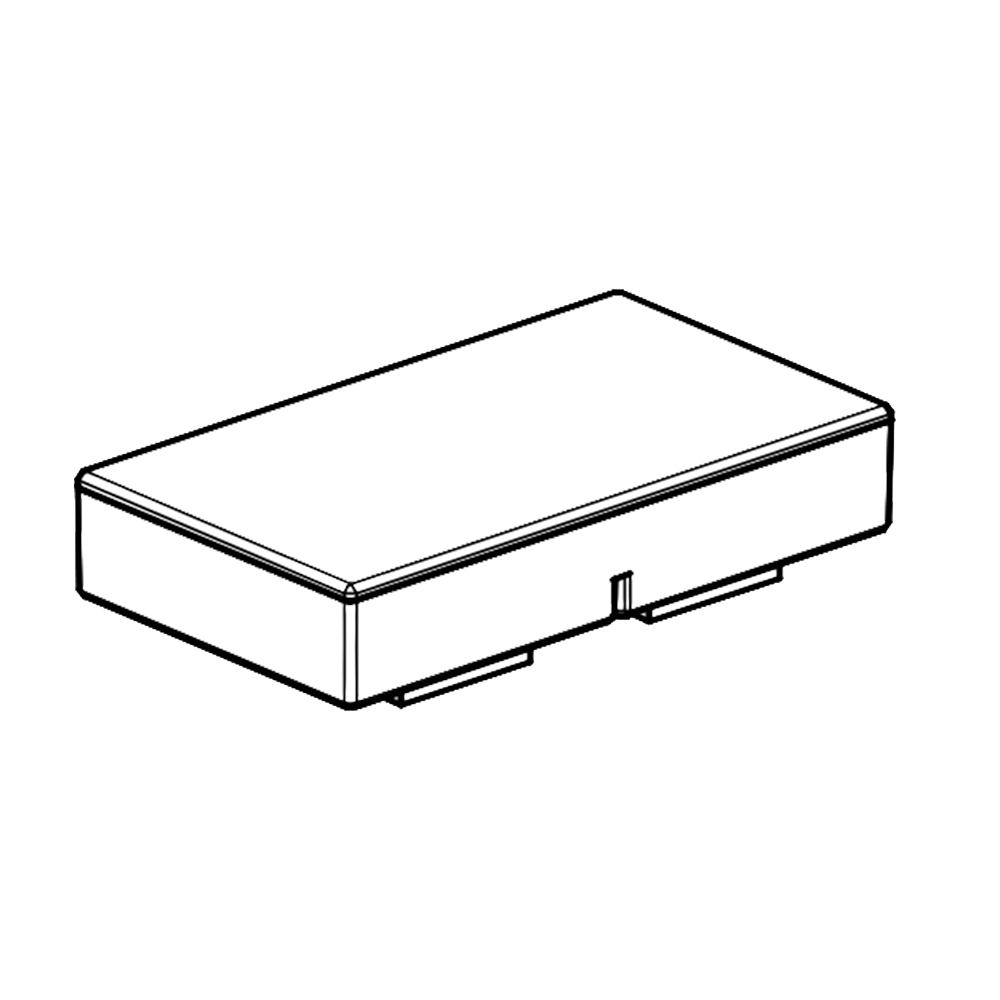

Linear electrical connector.
5 the maximum joints for each driver source.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7021 | |

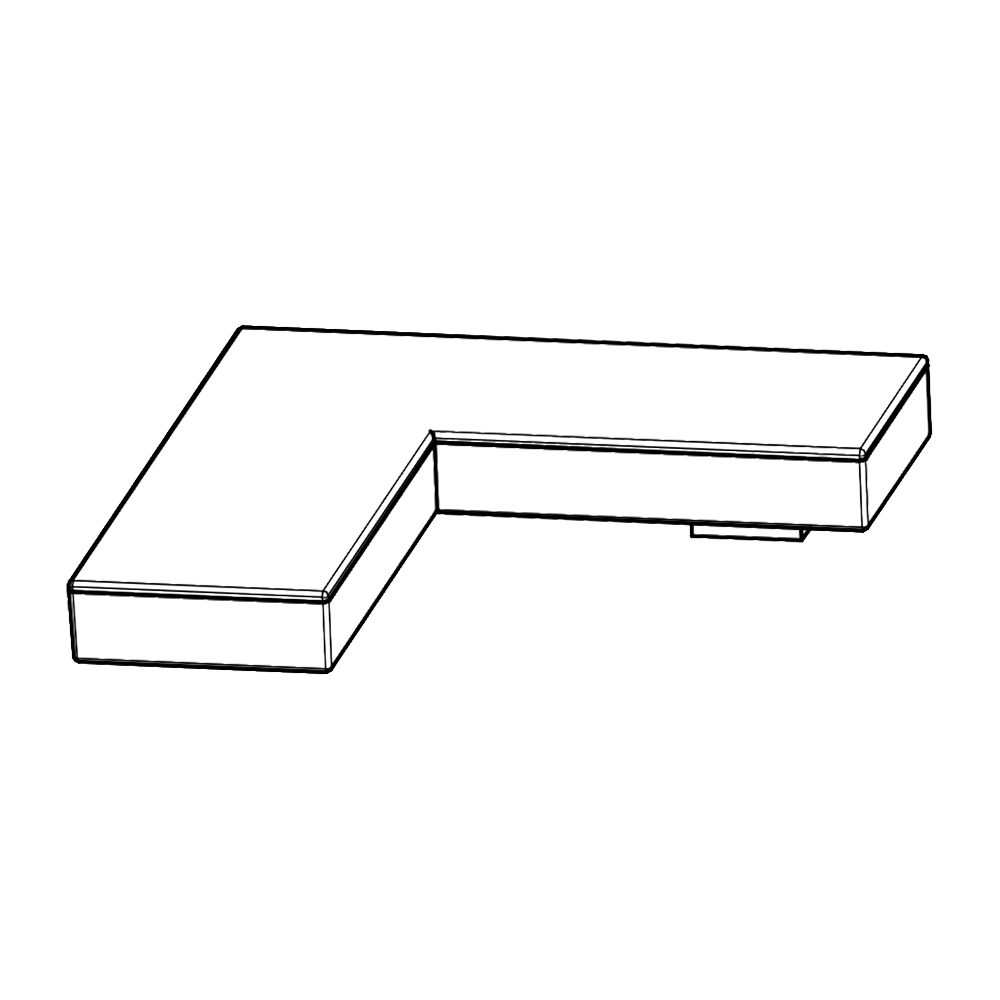

Electrical L connector.
5 the maximum joints for each driver source.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7022 | |

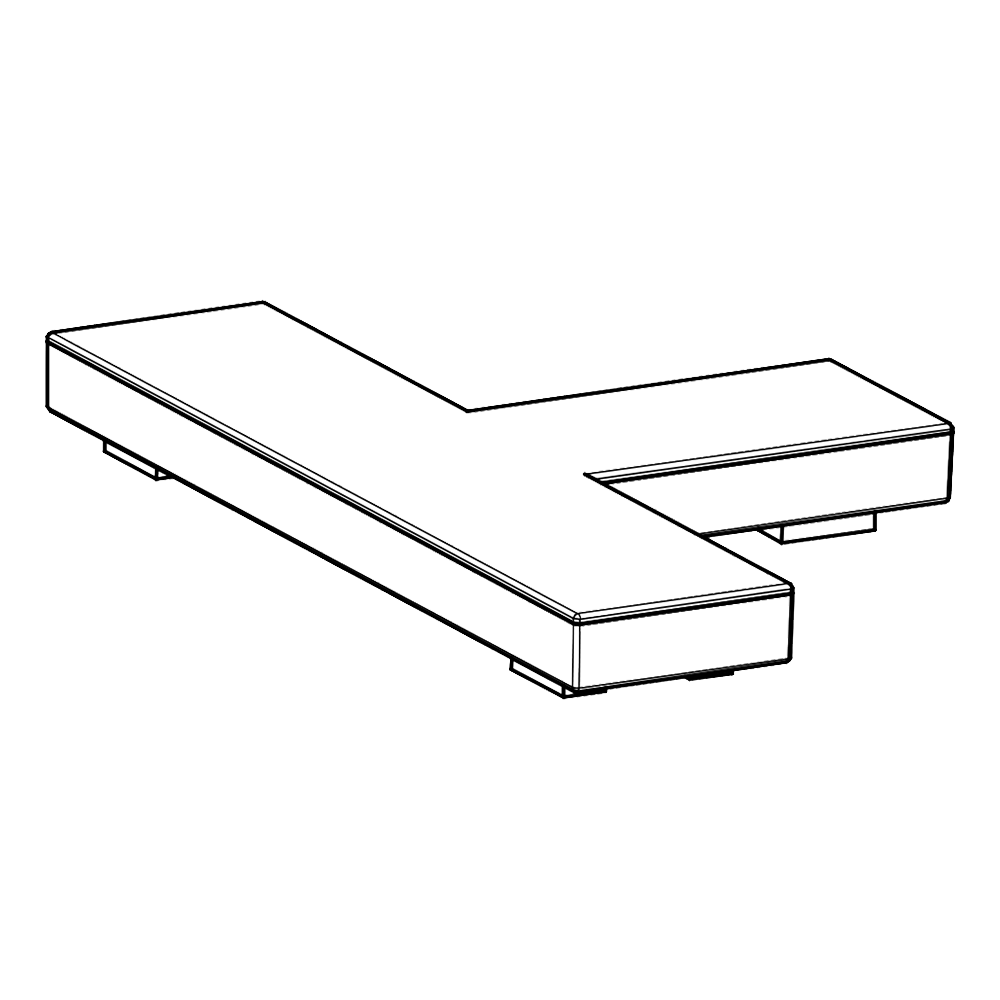

Electrical T connector.
5 the maximum joints for each driver source.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7023 | |

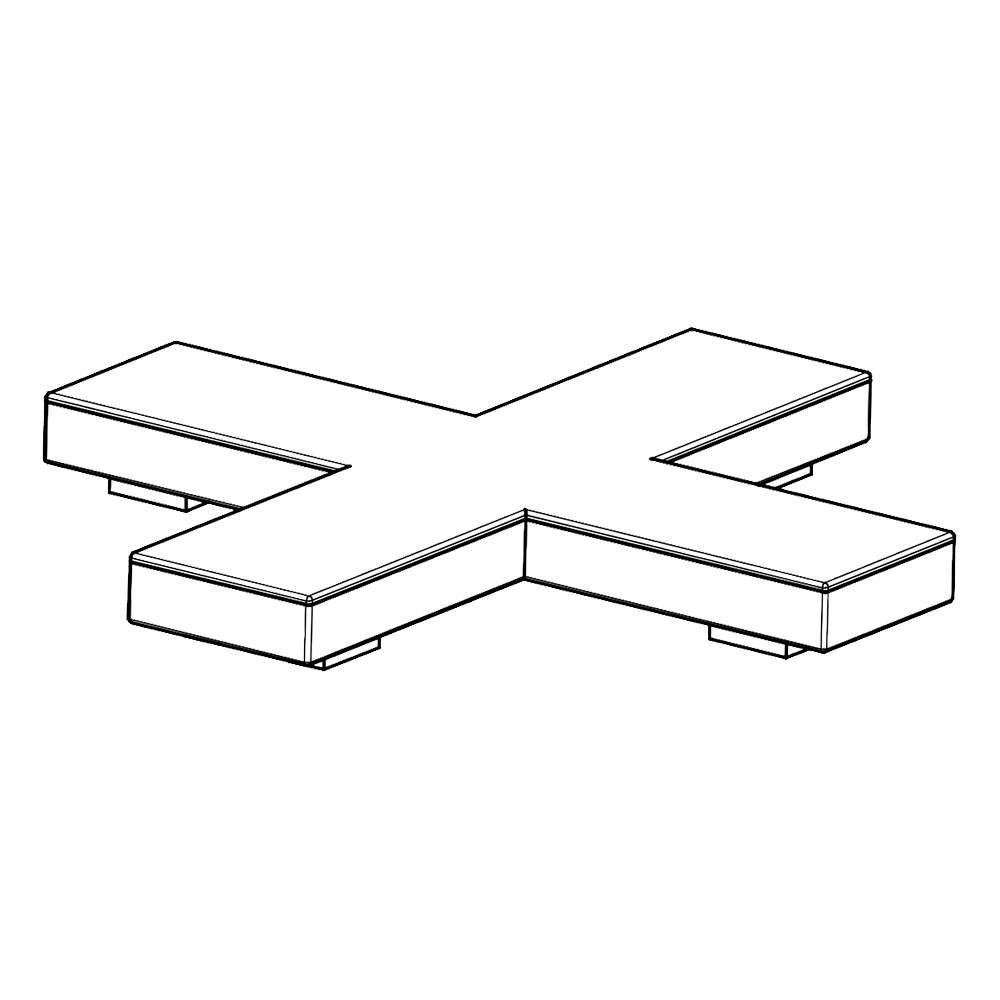

Electrical X connector.
5 the maximum joints for each driver source.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T9525 | |

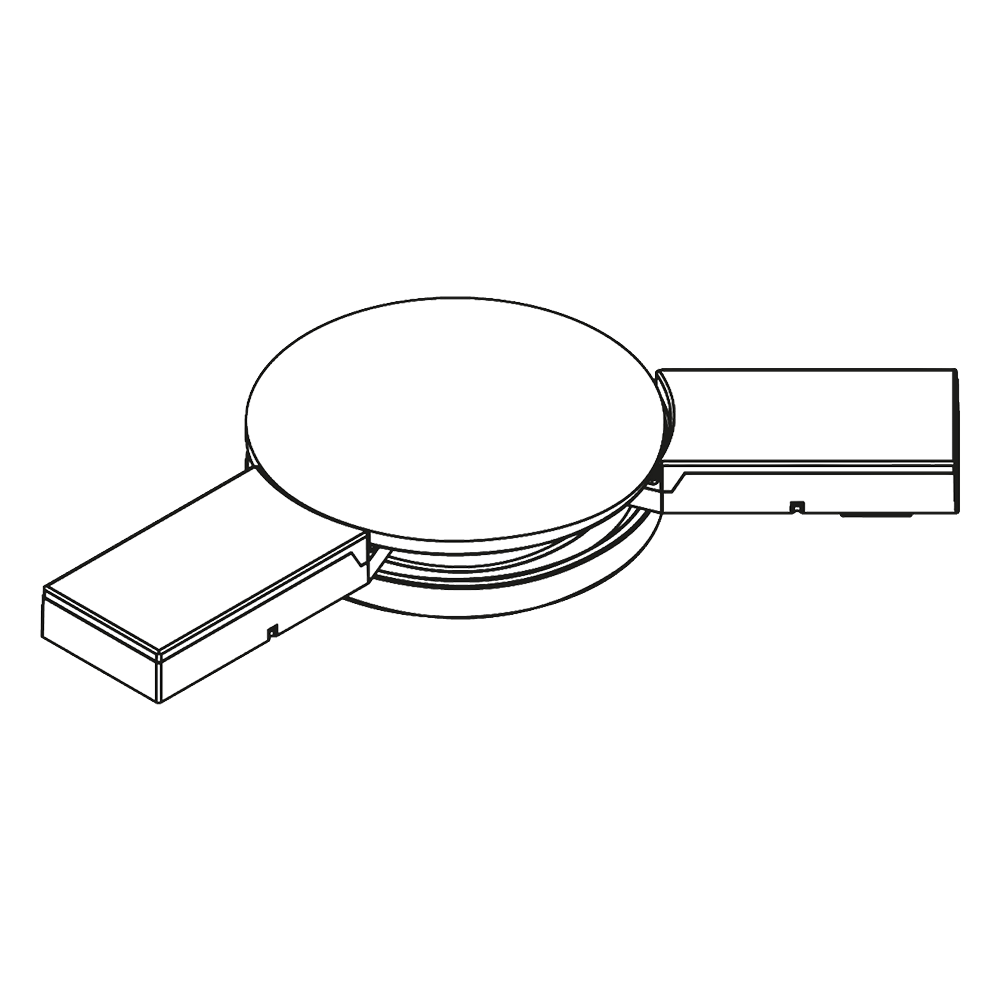

Adjustable 2 way electric connector.
Using a special accessory element it is possible to connect up to 8 Power Tracks.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T9580 | |

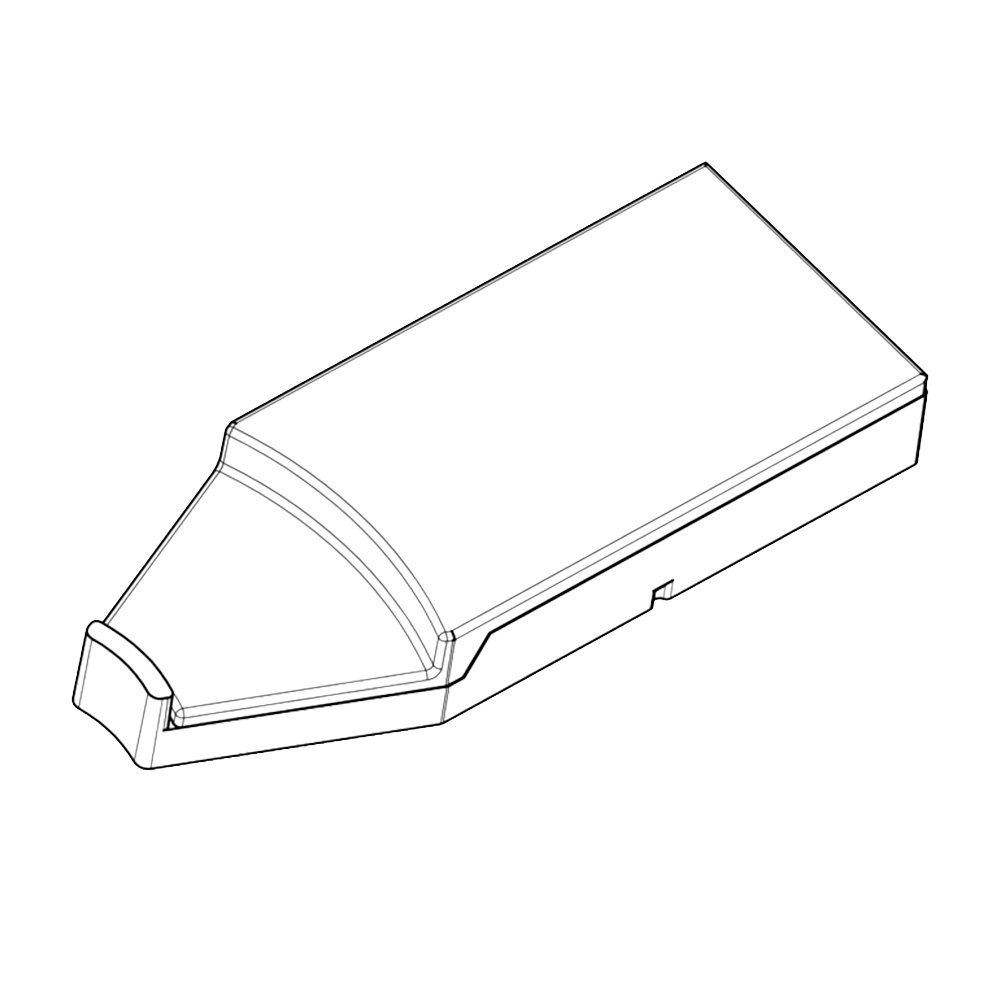

Accessory element for adjustable electric connector (1T9524 and 1T9525).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T7440 | |
L-angle electrical coupling.
5 the maximum joints for each driver source.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T9593 | |

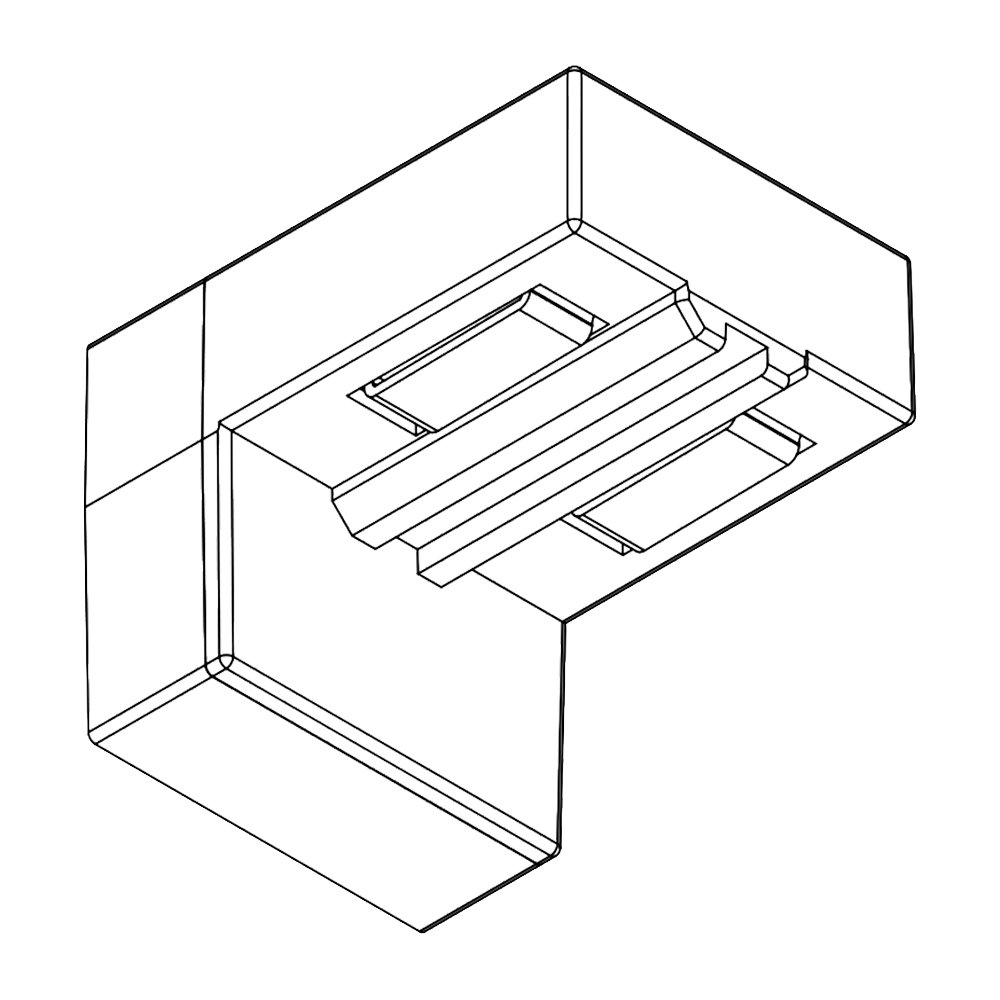

L shaped support that offers the possibility to attach modules to the Power Track at 90°.
The support allows for zenithal lighting for example when the power track is installed on the wall.
Only for single 25x25mm light modules.
| Code | Colour | L mm | |||
|---|---|---|---|---|---|
| 1T7941 | | 1000 |

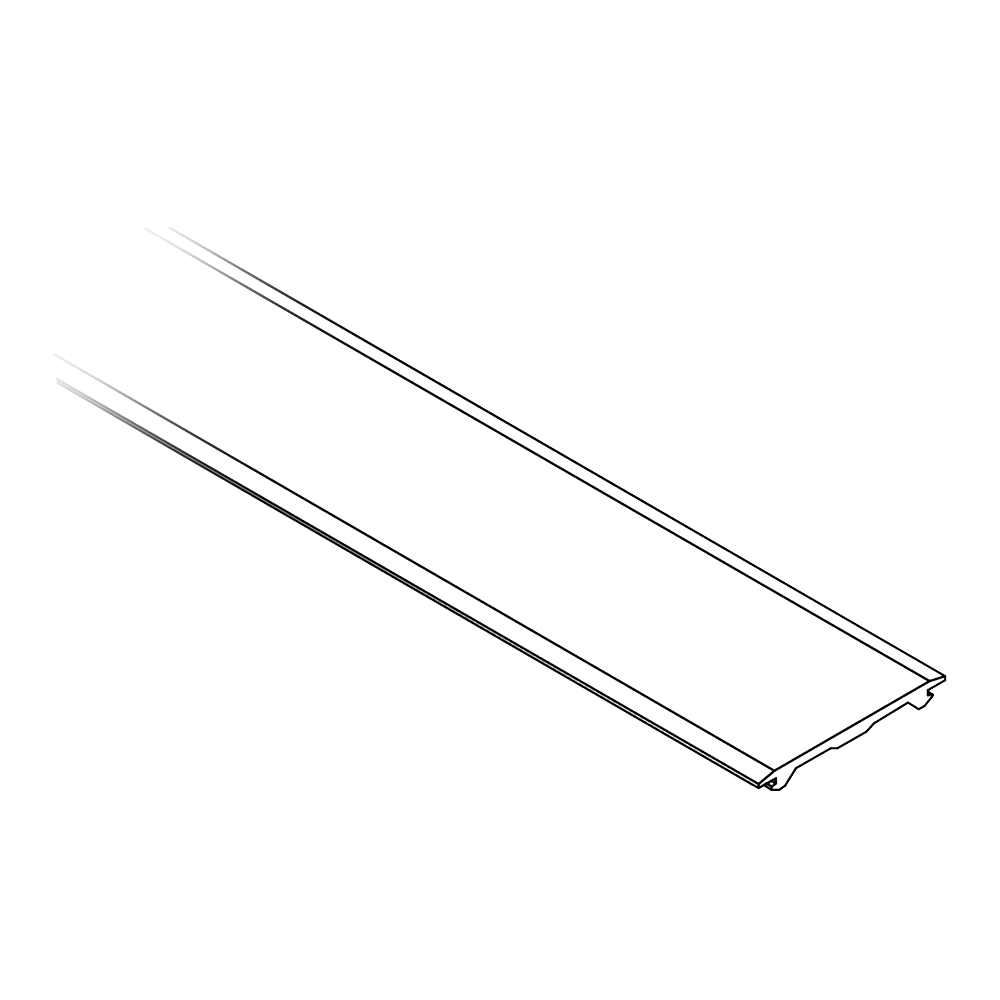

Cover for Power Track (5 pieces).
| Code |
|---|
| 1T7098 |
Double-sided adhesive roller, 10m long, for fixing Power Track on any surface.
| Code |
|---|
| 1T9523 |
Bracket for ceiling installation of the Power Track in modular suspended ceilings.
1 / 2
| Code |
|---|
| 1T9594D |
1-10V (DIMM ON BOARD) controller for remote installation.
Each 1-10V controller can drive several products for a maximum of 96W per circuit.
| Code |
|---|
| 1T8173CA |
Bridge DALI/Casambi: a fixture that allows fixtures equipped with mesh Bluetooth Casambi to interface with a traditional DALI system and to be adjusted by a DALI control unit.
Inside the usual DALI circuit it is possible to have a maximum of 64 cabled DALI and Casambi wireless devices.
It only works with Casambi Evolution networks.
The DALI Bridge is transparent in the DALI system, and therefore does not require an address.
There is no need for a power supply given that it is supplied directly by the DALI bus.
To provide IP68 rating to the fixture complete with code 1E3184.
LxHxP=40.4x14x36.3mm.
