Lighting Systems
Oz Lighting module - Single
fixed - 25x25mm
Code
1T7512
Light colour
3500K
90
90
Light distribution
FL
28°
28°
Output
2.8W
152lm
152lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power2,1W
Nominal flux203lm
Colour rendering index90
Rf91.4
Rg103.9
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

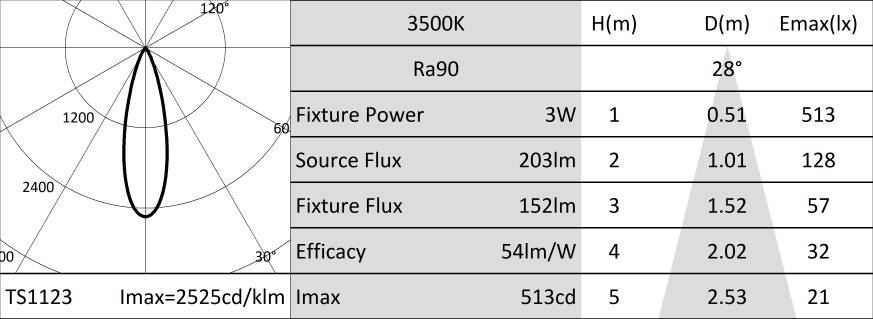

Illuminotechnical characteristics
The flood optical system has an acrylic lens and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesFL
Optical efficiency75%
Fixture flux152lm
Luminous efficacy54lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Fixed light, 25x25mm.
Colour and finishPlaster white
Dimensions25x25mm
Weight0.042Kg
VersionFIXED
Degree of protectionIP20
Electrical characteristics
Fixture Power3W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
