Lighting Systems

Oz Lighting module - Single
adjustable - 50x50mm

Code

1T7585

Light colour
4000K
90
Light distribution
FL
27°
Output
7.1W
793lm
Power supply Control
48Vdc
Colour
0.02
IP20
1 / 3
Prev
Next

Technical Data

Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power6,5W
Nominal flux1060lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

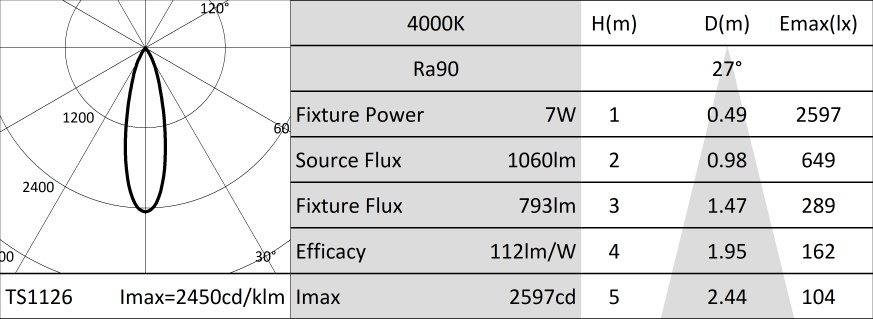

Illuminotechnical characteristics
The flood optical system consists of a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesFL
Optical efficiency75%
Fixture flux793lm
Luminous efficacy112lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Adjustable fixture, 50x50mm. Tiltability of the optical unit from 0° to +90° on the vertical plane and of 358° on the horizontal plane.
Colour and finishPlaster white
Dimensions50x50mm
Weight0.02Kg
VersionADJUSTABLE
Degree of protectionIP20
Electrical characteristics
Fixture Power7W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
