Recessed luminaires
Oz Stand Alone Recessed
Small 5x - 135x35mm
Code
1T7672
Light colour
3500K
90
90
Light distribution
WFL
56°
56°
Output
8.7W
682lm
682lm
Power supply
Control
600mA
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power8,7W
Nominal flux814lm
Colour rendering index90
Rf91.4
Rg103.9
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

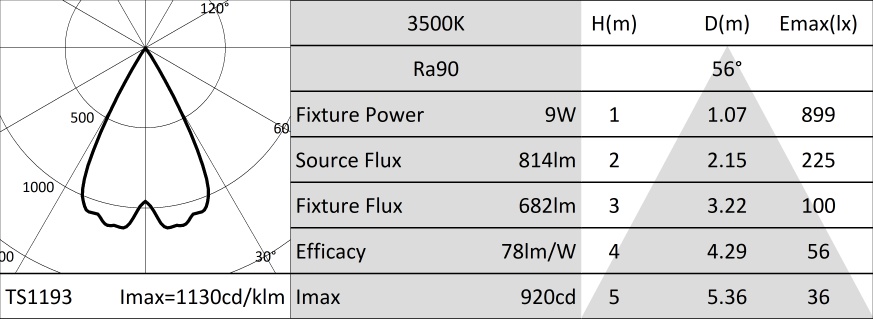

Illuminotechnical characteristics
WFL optic. Metallic polycarbonate reflector and black polycarbonate frame. The light is suitable for installation in work environments UGR<13 (EN12464-1).
OpticREFLECTOR
Beam anglesWFL
Optical efficiency84%
Fixture flux682lm
Luminous efficacy78lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. 5X Small version.
Colour and finishDeep black
DimensionsAxB=135x35mm
Weight0.14Kg
Version5X
Degree of protectionIP20
Electrical characteristics
To be completed with electronic ON-OFF or DALI driver available as accessory.
Fixture Power9W
Power supply600mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature0°C / +25°C
Installation
Quick fastening system with springs for installation in false ceilings from 0 to 30mm.
Notes
Casambi control system available via accessory (only for products with DALI driver). Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional.
Related codes
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T8172EL | IP20 | 600mA | 110-240Vac | 20W | 110x22x52 |
Electronic ON-OFF power supply.
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T8172DA | IP20 | 600mA | 230Vac | 20W | 156x26x52 |
DALI power supply.
Accessories
| Code |
|---|
| A059 |
Emergency kit composed of an inverter a LIFePO4 battery and a LED Green indicator.
Allows permanent EP emergency use of the fixture it is connected to.
The 1h or 3h autonomy can be selected by configuring the fixture.
The batteries take 12h to completely recharge.
LED Green indicator wired to the inverter through single-core cables L= 800mm.
Emergency kit for fixtures that comply with EN 60598-2-22 standard, high risk areas excluded.
Battery size 160x54x30 mm.
Inverter size 165x40x25 mm.
1 / 2
| Code |
|---|
| 1T5349 |
IP20 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 2T0131 |
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER 0/1-10V
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
