Lighting Systems
Oz Lighting module - Single
fixed - 50x50mm
Code
1T7954CA
Light colour
3500K
90
90
Light distribution
Zoom DBS
22°-46°
22°-46°
Output
7.7W
650-682lm
650-682lm
Power supply
Control
48Vdc
Colour
SP
MWFL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power6,9W
Nominal flux930lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

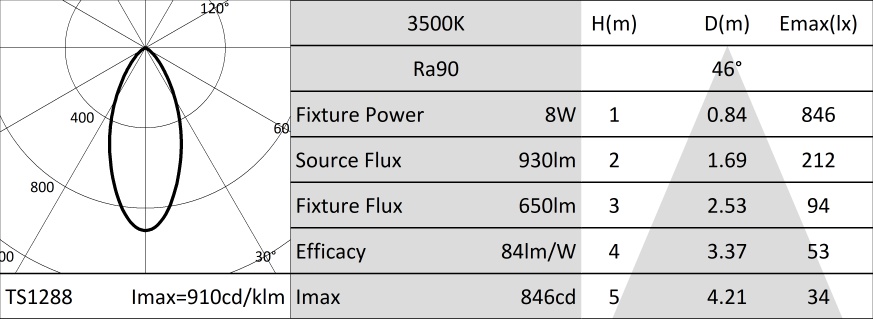

Illuminotechnical characteristics
Optical unit composed of a specular anodised aluminium reflector, a Lens Vector lens (liquid crystal glass lenses that are electronically controlled to regulate light diffusion and the beam opening) and a holographic filter; UGR<22 (EN12464-1).
OpticDBS
Beam anglesFL-MWFL
Optical efficiencySP - 73%
MWFL - 70%
MWFL - 70%
Fixture fluxSP - 682lm
MWFL - 650lm
MWFL - 650lm
Luminous efficacySP - 89lm/W
MWFL - 84lm/W
MWFL - 84lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Fixed light, 50x50mm.
Colour and finishDeep black
Dimensions50x50mm
Weight0.102Kg
VersionFIXED CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Version with DBS (Dynamic Beam Shaper) technology. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
