Lighting Systems
Oz Lighting module - Single
adjustable - 25x25mm
Code
1T7963CA
Light colour
3000K
90
90
Light distribution
Zoom DBS
16°-35°
16°-35°
Output
2.8W
156-175lm
156-175lm
Power supply
Control
48Vdc
Colour
SP
MWFL
1 / 4
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classG
Nominal power2,1W
Nominal flux236lm
Colour rendering index90
Rf89.3
Rg104.3
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Optical unit composed of a specular anodised aluminium reflector, a Lens Vector lens (liquid crystal glass lenses that are electronically controlled to regulate light diffusion and the beam opening) and a holographic filter; UGR<22 (EN12464-1).
OpticDBS

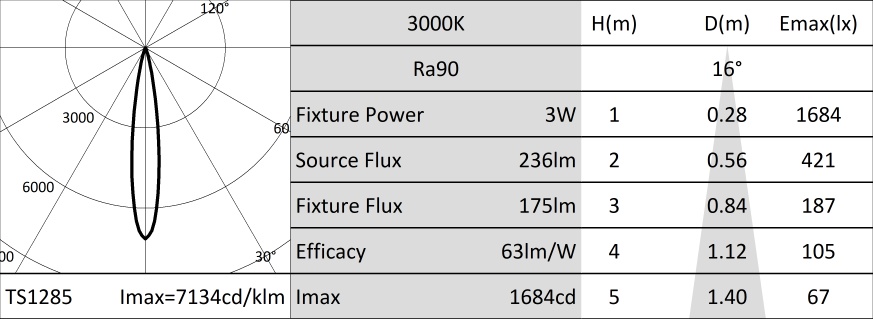

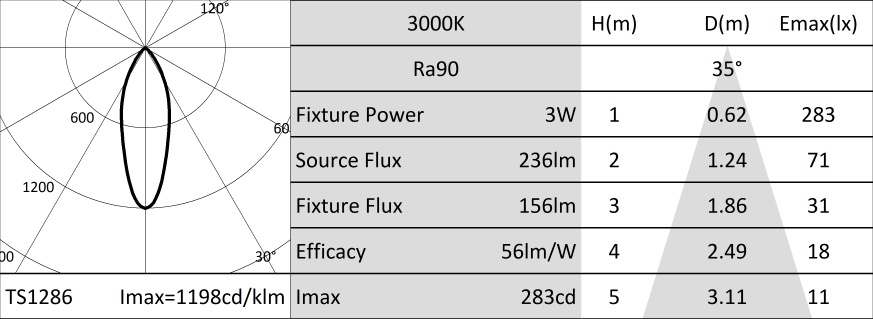

Beam anglesSP-FL
Optical efficiencySP - 74%
MWFL - 66%
MWFL - 66%
Fixture fluxSP - 175lm
MWFL - 156lm
MWFL - 156lm
Luminous efficacySP - 63lm/W
MWFL - 56lm/W
MWFL - 56lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Adjustable fixture, 25x25mm. Tiltability of the optical unit from 0° to +90° on the vertical plane and of 358° on the horizontal plane.
Colour and finishPlaster white
Dimensions25x25mm
Weight0.062Kg
VersionADJUSTABLE CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power3W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Version with DBS (Dynamic Beam Shaper) technology. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
