Lighting Systems
Oz Lighting module - Single
adjustable - 50x50mm
Code
1T7964CA
Light colour
3000K
90
90
Light distribution
Zoom DBS
22°-46°
22°-46°
Output
7.7W
621-652lm
621-652lm
Power supply
Control
48Vdc
Colour
SP
MWFL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power6,9W
Nominal flux889lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Optical unit composed of a specular anodised aluminium reflector, a Lens Vector lens (liquid crystal glass lenses that are electronically controlled to regulate light diffusion and the beam opening) and a holographic filter; UGR<22 (EN12464-1).

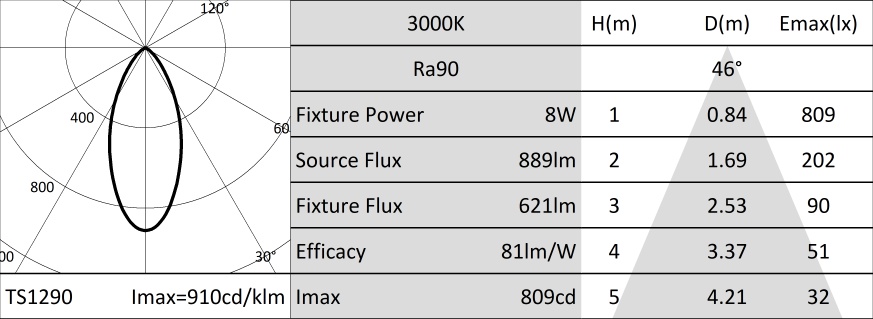

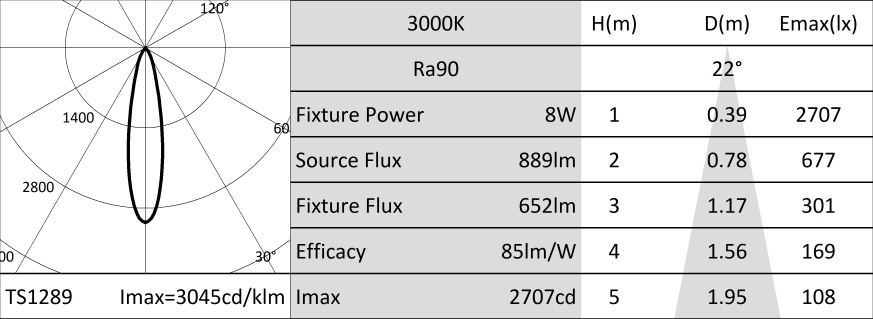

OpticDBS
Beam anglesFL-MWFL
Optical efficiencySP - 73%
MWFL - 70%
MWFL - 70%
Fixture fluxSP - 652lm
MWFL - 621lm
MWFL - 621lm
Luminous efficacySP - 85lm/W
MWFL - 81lm/W
MWFL - 81lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Adjustable fixture, 50x50mm. Tiltability of the optical unit from 0° to +90° on the vertical plane and of 358° on the horizontal plane.
Colour and finishPlaster white
Dimensions50x50mm
Weight0.209Kg
VersionADJUSTABLE CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Version with DBS (Dynamic Beam Shaper) technology. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
